PL2 | Hand Taps for Termoplastic Resins | YAMAWA

สินค้าหมด
SKU
PL2

Product Features

  • Among synthetic resins, the properties of thermoplastic resin make it easy to deform and extend even at a comparatively low temperature. Therefore, after
    tapping, internal threads may shrink or make chips remain in internal threads on the far side in small burr shape which are often difficult to remove. For
    PL2, the internal thread accuracy is stabilized by making the tap class oversize, and the remaining chip problem is solved by optimizing the flute shape.
  • Applicable workpiece materials are thermoplastic resins: ABS, POM, PC, PVC, HDPE (high-density polyethylene), etc.

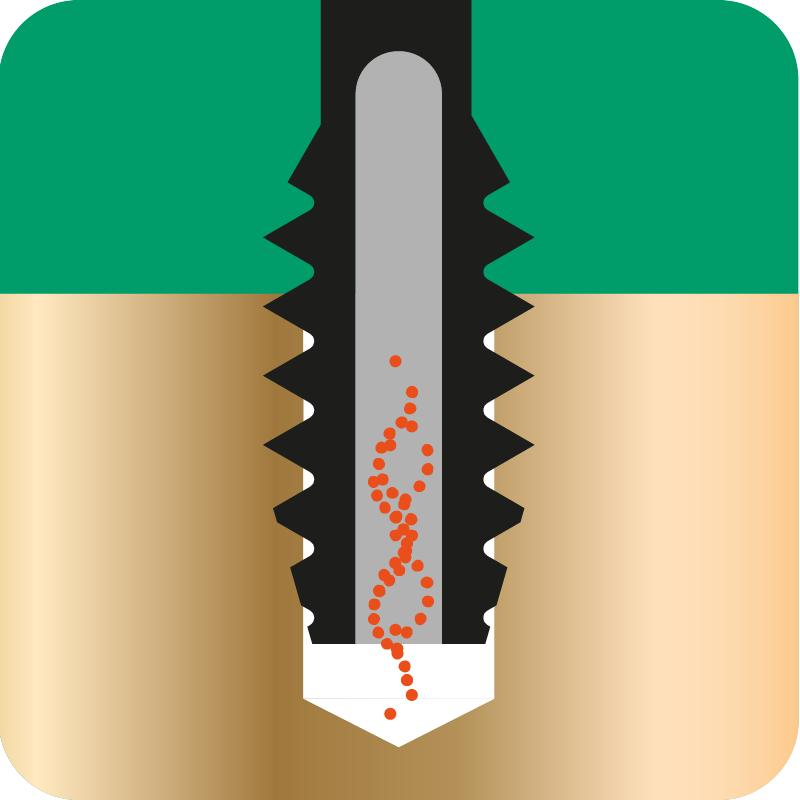

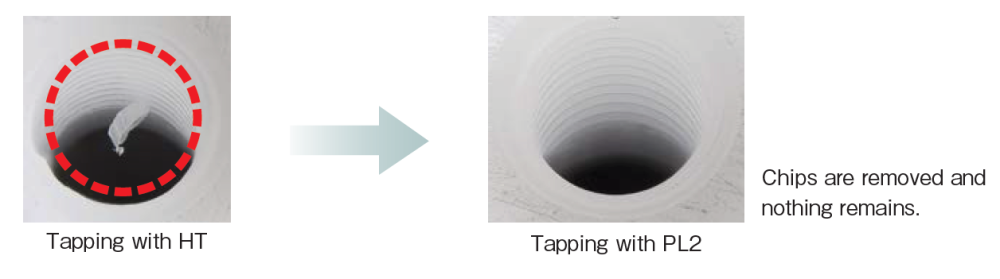

Measures against Chips Remaining in Internal Threads on Far Side

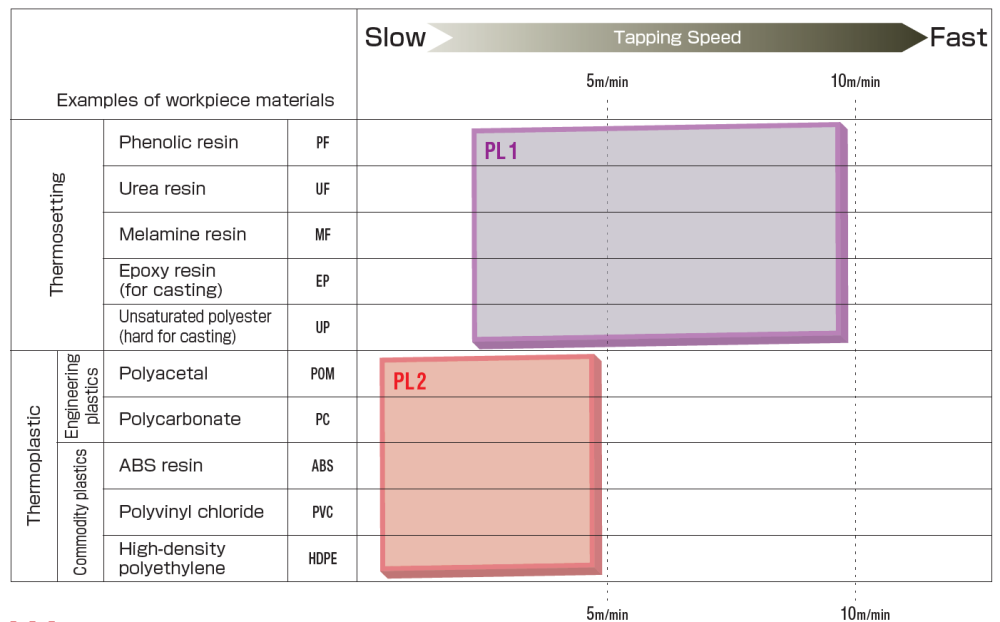

Product Chart




PL2 | Hand Taps for Termoplastic Resins | YAMAWA
PL2 | Hand Taps for Termoplastic Resins | YAMAWA

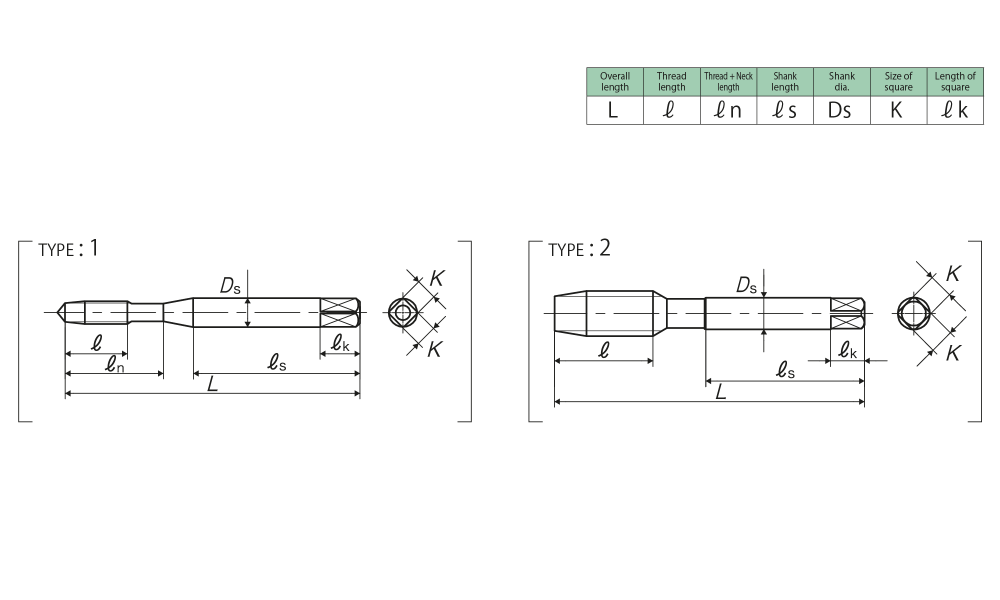

Specification



Tapping Speeds depending on Materials





Segment:1A

Size

Class

Code

Chamfer

L

(mm)

(mm)

n

(mm)

s

(mm)

Ds

(mm)

K

(mm)

k

(mm)

No. of

flutes

TYPE

For Metric Threads

M2×0.4

P4

TY2.0ESMEN3

3P

42

7.2

12

27

3

2.5

5

3

1

M2.3×0.4

P4

TY2.3ESMEN3

3P

42

7.2

12

27

3

2.5

5

3

1

M2.5×0.45

P4

TY2.5FSMEN3

3P

46

8.1

14

29

3

2.5

5

3

1

M2.6×0.45

P4

TY2.6FSMEN3

3P

46

8.1

14

29

3

2.5

5

3

1

M3×0.5

P5

TY3.0GTMEN3

3P

46

9

14

26

4

3.2

6

4

1

M3.5×0.6

P5

TY3.5HTMEN3

3P

52

11

16

29

5

4

7

4

1

M4×0.7

P5

TY4.0ITMEN3

3P

52

11

17

29

5

4

7

4

1

M5×0.8

P5

TY5.0KTMEN3

3P

60

13

22

33

5.5

4.5

7

4

1

M6×1

P5

TY6.0MTMEN3

3P

62

15

26

33

6

4.5

7

4

1

M8×1.25

P6

TY8.0NUMEN3

3P

70

19

-

36

6.2

5

8

4

2
