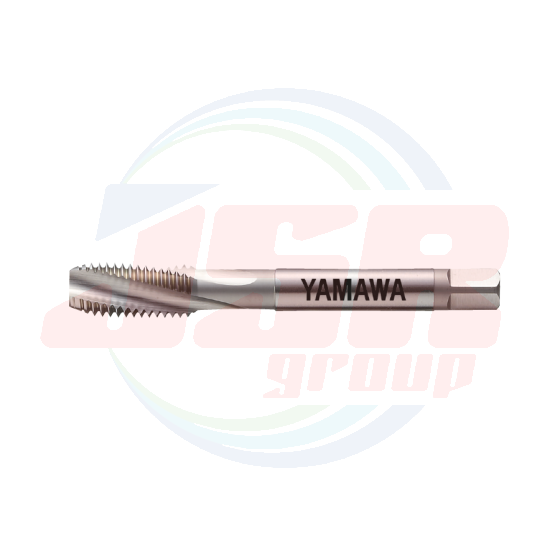

PM-PO27X1.5 (PY027OSDPB) | Spiral Pointed Taps for Hard-to-Machine Materials | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 7,413.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
PY027OSDPB
QTY:
1
Product Features
- Spiral pointed tap suitable for high hardness steels of 25～ 45HRC such as forgings and thermal refined steels of high carbon steels and alloy steels, and die steel. Through hole use.
Specification
Tapping Speeds depending on Materials
25〜35HRC 35〜45HRC
Segment：1F
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P3 |
PY3.0GRDPB |
5.5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P3 |
PY4.0IRDPB |
5.5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
PY5.0KRDPB |
5.5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
PY6.0MRDPB |
5.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P4 |
PY8.0NSDPB |
5.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P4 |
PY010OSDPB |
5.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P4 |
PY010NSDPB |
5.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P4 |
PY012PSDPB |
5.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P4 |
PY012OSDPB |
5.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P4 |
PY012NSDPB |
5.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M14×2 |
P5 |
PY014QTDPB |
5.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P4 |
PY014OSDPB |
5.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M16×2 |
P5 |
PY016QTDPB |
5.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P4 |
PY016OSDPB |
5.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M18×2.5 |
P5 |
PY018RTDPB |
5.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
3 |
2 |
|
M18×1.5 |
P4 |
PY018OSDPB |
5.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
3 |
2 |
|
M20×2.5 |
P5 |
PY020RTDPB |
5.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
3 |
|
M20×1.5 |
P4 |
PY020OSDPB |
5.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
3 |
|
M22×2.5 |
P5 |
PY022RTDPB |
5.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
3 |
3 |
|
M22×1.5 |
P4 |
PY022OSDPB |
5.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
3 |
3 |
|
M24×3 |
P5 |
PY024STDPB |
5.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
3 |
3 |
|
M24×1.5 |
P4 |
PY024OSDPB |
5.5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
3 |
3 |
|
M27×3 |
P5 |
PY027STDPB |
5.5P |
130 |
39 |
- |
60 |
20 |
15 |
18 |
4 |
3 |
|
M27×1.5 |
P4 |
PY027OSDPB |
5.5P |
130 |
39 |
- |
60 |
20 |
15 |
18 |
4 |
3 |
|
M30×3.5 |
P5 |
PY030TTDPB |
5.5P |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
3 |
|
M30×1.5 |
P4 |
PY030OSDPB |
5.5P |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | M27x1.5 (PY027OSDPB) |
| Model | PM-PO |
| Size | M27X1.5 |
| Class | P4 |
| Chamfer | 5.5P |
| Overall length (L) | 130 |
| Thread length (ℓ) | 39 |
| Thread + Neck length (ℓn) | - |
| Shank length (ℓs) | 60 |
| Shank dia. (Ds) | 20 |
| Size of Square (K) | 15 |
| Length of square (ℓk) | 18 |
