Product Features
- Spiral fluted tap suitable for tapping hard steels with hardness between 25-45HRC such as forgings and thermal refined steels of high carbon steels and alloy steels, and mold steels.
Specification
Tapping Speeds depending on Materials
25〜35HRC 35〜45HRC
Segment：1C
|

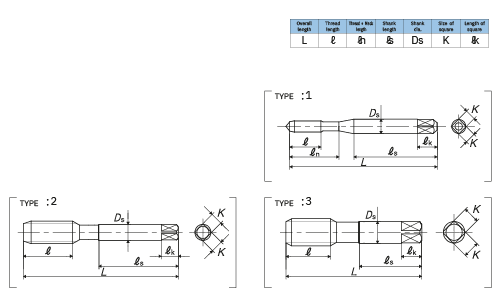

Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Unified Threads |
||||||||||||
|
5/16-18UNC |
P3 |
SYU05ORDPB |
2.75P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
5/16-24UNF |
P3 |
SYU05MRDPB |
2.75P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
3/8-16UNC |
P3 |
SYU06PRDPB |
2.75P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
3/8-24UNF |
P3 |
SYU06MRDPB |
2.75P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
7/16-14UNC |
P4 |
SYU07QSDPB |
2.75P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
7/16-20UNF |
P3 |
SYU07NRDPB |
2.75P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
1/2-13UNC |
P4 |
SYU08RSDPB |
2.75P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
1/2-20UNF |
P3 |
SYU08NRDPB |
2.75P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
5/8-11UNC |
P4 |
SYU10USDPB |
2.75P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
5/8-18UNF |
P3 |
SYU10ORDPB |
2.75P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
3/4-10UNC |
P4 |
SYU12VSDPB |
2.75P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
3 |
|
3/4-16UNF |
P4 |
SYU12PSDPB |
2.75P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
3 |
|
1 -8UNC |
P5 |
SYU16XTDPB |
2.75P |
125 |
39 |
- |
58 |
19 |
15 |
18 |
3 |
3 |
|
1 -12UNF |
P4 |
SYU16SSDPB |
2.75P |
125 |
39 |
- |
58 |
19 |
15 |
18 |
3 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Chamfer | 0 |
