Product Features

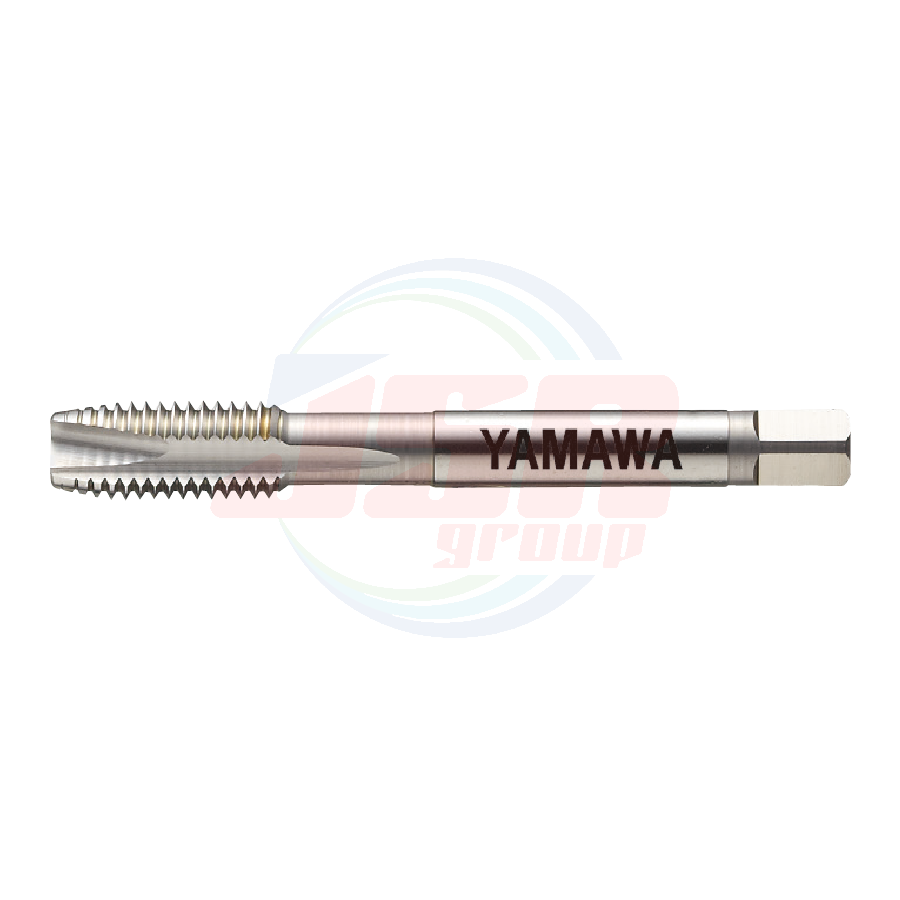

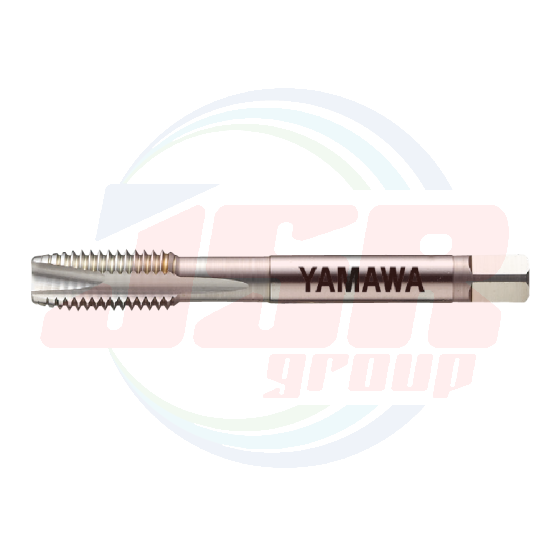

- The PO LH is a spiral pointed tap for left hand threads in through hole tapping.
Specification
Tapping Speeds depending on Materials
Segment：1F
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Unified Threads |
||||||||||||
|
1/4-20UNC |
P2 |
POQU04N--L |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
1/4-28UNF |
P2 |
POQU04K--L |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
5/16-18UNC |
P3 |
PORU05O--L |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
5/16-24UNF |
P2 |
POQU05M--L |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
3/8-16UNC |
P3 |
PORU06P--L |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
3/8-24UNF |
P2 |
POQU06M--L |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
7/16-14UNC |
P3 |
PORU07Q--L |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
7/16-20UNF |
P3 |
PORU07N--L |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
1/2-13UNC |
P3 |
PORU08R--L |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
1/2-20UNF |
P3 |
PORU08N--L |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
