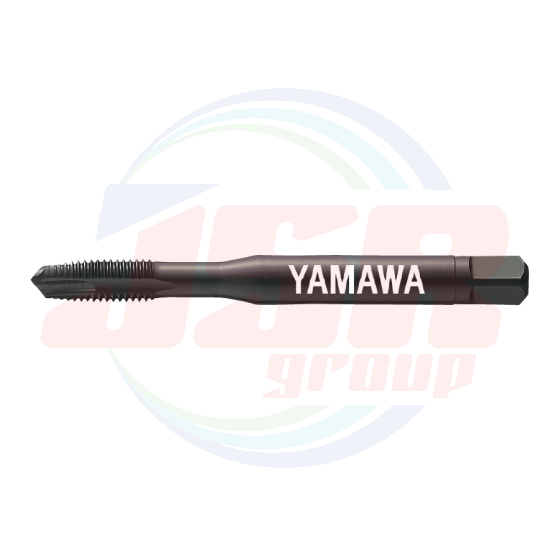

PO-OX (Metric Threads) | Spiral Pointed Taps, Oxidized | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 597.06
พร้อมส่ง
SKU
YAM-PO-OX Metric Threads
Product Features
- The +PO is a spiral pointed tap for through hole tapping and is suitable for synchronous feed processing in middle to high thread processing of soft steel materials whose chips easily weld to the taps thread such as low carbon steels.
Specification
Tapping Speeds depending on Materials
Oversize
Segment：1F
|

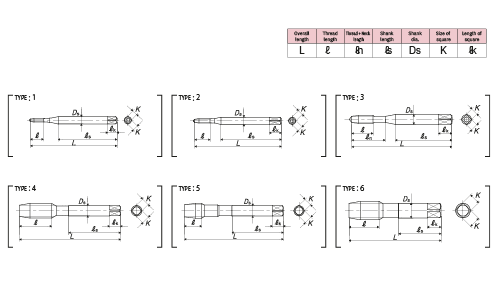

Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M1.4×0.3 |
P1 |
POP1.4CX |
5P |
36 |
5.4 |
- |
24 |
3 |
2.5 |
5 |
2 |
1 |
|
M1.4×0.3 |
P2 |
POQ1.4CX |
5P |
36 |
5.4 |
- |
24 |
3 |
2.5 |
5 |
2 |
1 |
|
M1.6×0.35 |
P2 |
POQ1.6DX |
5P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
2 |
2 |
|
M1.7×0.35 |
P2 |
POQ1.7DX |
5P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
2 |
2 |
|
M2×0.4 |
P2 |
POQ2.0EX |
5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
|
M2×0.4 |
P3 |
POR2.0EX |
5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
|
M2.3×0.4 |
P2 |
POQ2.3EX |
5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
|
M2.5×0.45 |
P2 |
POQ2.5FX |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
|
M2.6×0.45 |
P2 |
POQ2.6FX |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
|
M2.6×0.45 |
P3 |
POR2.6FX |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
|
M3×0.5 |
P2 |
POQ3.0GX |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
3 |
|
M3×0.5 |
P3 |
POR3.0GX |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
3 |
|
3M0.6 |
P2 |
POQ3.0HX |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
3 |
|
M3.5×0.6 |
P2 |
POQ3.5HX |
5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
3 |
|
M4×0.7 |
P2 |
POQ4.0IX |
5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
3 |
|
M4×0.7 |
P3 |
POR4.0IX |
5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
3 |
|
4M0.75 |
P2 |
POQ4.0JX |
5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
3 |
|
M5×0.8 |
P2 |
POQ5.0KX |
5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
M5×0.8 |
P3 |
POR5.0KX |
5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
5M0.9 |
P2 |
POQ5.0LX |
5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
M6×1 |
P2 |
POQ6.0MX |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
M6×1 |
P3 |
POR6.0MX |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
M6×1 |
P4 |
POS6.0MX |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
M7×1 |
P2 |
POQ7.0MX |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
M8×1.25 |
P3 |
POR8.0NX |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
M8×1.25 |
P4 |
POS8.0NX |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
M8×1 |
P3 |
POR8.0MX |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
M8×0.5 |
P2 |
POQ8.0GX |
5P |
70 |
10 |
- |
36 |
6.2 |
5 |
8 |
3 |
5 |
|
M10×1.5 |
P3 |
POR010OX |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
M10×1.5 |
P4 |
POS010OX |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
M10×1.25 |
P3 |
POR010NX |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
M10×1 |
P3 |
POR010MX |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
M10×1 |
P4 |
POS010MX |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
M12×1.75 |
P4 |
POS012PX |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
M12×1.5 |
P3 |
POR012OX |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
M12×1.25 |
P4 |
POS012NX |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
M14×2 |
P4 |
POS014QX |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
M14×1.5 |
P3 |
POR014OX |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
M14×1.25 |
P3 |
POR014NX |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
M14×1 |
P3 |
POR014MX |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
M16×2 |
P4 |
POS016QX |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
M16×1.5 |
P3 |
POR016OX |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
M18×2.5 |
P4 |
POS018RX |
5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
3 |
4 |
|
M18×2 |
P4 |
POS018QX |
5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
3 |
4 |
|
M18×1.5 |
P4 |
POS018OX |
5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
3 |
4 |
|
M20×2.5 |
P4 |
POS020RX |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
6 |
|
M20×1.5 |
P4 |
POS020OX |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
6 |
|
M22×2.5 |
P4 |
POS022RX |
5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
3 |
6 |
|
M22×1.5 |
P4 |
POS022OX |
5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
3 |
6 |
|
M24×3 |
P4 |
POS024SX |
5P |
120 |
39 |
- |
55 |
19 |
15 |
18 |
3 |
6 |
|
M25×1.5 |
P4 |
POS025OX |
5P |
125 |
39 |
- |
58 |
19 |
15 |
18 |
3 |
6 |
|
M26×3 |
P4 |
POS026SX |
5P |
130 |
39 |
- |
60 |
20 |
15 |
18 |
4 |
6 |
|
M27×3 |
P4 |
POS027SX |
5P |
130 |
39 |
- |
60 |
20 |
15 |
18 |
4 |
6 |
|
M30×3.5 |
P5 |
POT030TX |
5P |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
6 |
|
M30×3 |
P4 |
POS030SX |
5P |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
6 |
|
M32×2 |
P4 |
POMS032QX |
5P |
145 |
46 |
- |
67 |
24 |
19 |
22 |
4 |
6 |
|
M32×1.5 |
P4 |
POMS032OX |
5P |
145 |
46 |
- |
67 |
24 |
19 |
22 |
4 |
6 |
|
M33×3.5 |
P5 |
POMT033TX |
5P |
145 |
46 |
- |
67 |
25 |
19 |
22 |
4 |
6 |
|
M33×3 |
P4 |
POMS033SX |
5P |
145 |
46 |
- |
67 |
25 |
19 |
22 |
4 |
6 |
|
M36×4 |
P5 |
POMT036UX |
5P |
155 |
52 |
- |
71 |
28 |
21 |
24 |
4 |
6 |
|
M36×3 |
P4 |
POMS036SX |
5P |
155 |
52 |
- |
71 |
28 |
21 |
24 |
4 |
6 |
|
M42×4.5 |
P5 |
POMT042VX |
5P |
175 |
59 |
- |
81 |
32 |
26 |
30 |
4 |
6 |
| แบรนด์สินค้า | YAMAWA |
|---|
