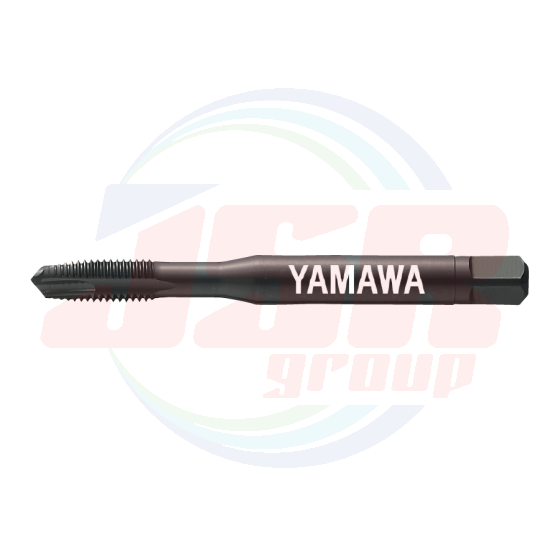

PO-OX (Unified Threads) | Spiral Pointed Taps, Oxidized | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 765.05
พร้อมส่ง
SKU
YAM-PO-OX Unified Threads
Product Features
- The +PO is a spiral pointed tap for through hole tapping and is suitable for synchronous feed processing in middle to high thread processing of soft steel materials whose chips easily weld to the taps thread such as low carbon steels.
Specification
Tapping Speeds depending on Materials
Segment：1F
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Unified Threads |
||||||||||||
|
No.0-80UNF |
P1 |
POPUN0BX |
5P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
2 |
2 |
|
No.2-56UNC |
P1 |
POPUN2EX |
5P |
42 |
8.1 |
12 |
27 |
3 |
2.5 |
5 |
3 |
3 |
|
No.4-40UNC |
P2 |
POQUN4HX |
5P |
46 |
9 |
14 |
25 |
4 |
3.2 |
6 |
3 |
3 |
|
No.5-40UNC |
P2 |
POQUN5HX |
5P |
52 |
11 |
16 |
28 |
5 |
4 |
7 |
3 |
3 |
|
No.6-32UNC |
P2 |
POQUN6JX |
5P |
52 |
11 |
17 |
27 |
5 |
4 |
7 |
3 |
3 |
|
No.6-40UNF |
P2 |
POQUN6HX |
5P |
52 |
11 |
17 |
27 |
5 |
4 |
7 |
3 |
3 |
|
No.8-32UNC |
P2 |
POQUN8JX |
5P |
60 |
13 |
22 |
31 |
5.5 |
4.5 |
7 |
3 |
3 |
|
No.10-24UNC |
P2 |
POQUNAMX |
5P |
60 |
13 |
22 |
32 |
5.5 |
4.5 |
7 |
3 |
3 |
|
No.10-32UNF |
P2 |
POQUNAJX |
5P |
60 |
13 |
22 |
32 |
5.5 |
4.5 |
7 |
3 |
3 |
|
No.12-24UNC |
P2 |
POQUNCMX |
5P |
62 |
15 |
26 |
32 |
6 |
4.5 |
7 |
3 |
3 |
|
No.12-28UNF |
P2 |
POQUNCKX |
5P |
62 |
15 |
26 |
32 |
6 |
4.5 |
7 |
3 |
3 |
|
1/4-20UNC |
P2 |
POQU04NX |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
1/4-28UNF |
P2 |
POQU04KX |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
5/16-18UNC |
P3 |
PORU05OX |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
5/16-24UNF |
P2 |
POQU05MX |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
3/8-16UNC |
P3 |
PORU06PX |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
3/8-24UNF |
P2 |
POQU06MX |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
7/16-14UNC |
P3 |
PORU07QX |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
7/16-20UNF |
P3 |
PORU07NX |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
1/2-13UNC |
P3 |
PORU08RX |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
1/2-20UNF |
P3 |
PORU08NX |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
9/16-18UNF |
P3 |
PORU09OX |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
5/8-11UNC |
P3 |
PORU10UX |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
5/8-18UNF |
P3 |
PORU10OX |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
3/4-10UNC |
P4 |
POSU12VX |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
6 |
|
3/4-16UNF |
P3 |
PORU12PX |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
6 |
|
7/8-9UNC |
P4 |
POSU14WX |
5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
3 |
6 |
|
7/8-14UNF |
P3 |
PORU14QX |
5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
3 |
6 |
|
1 -8UNC |
P4 |
POSU16XX |
5P |
125 |
39 |
- |
58 |
19 |
15 |
18 |
3 |
6 |
|
1 3/8-12UNF |
P4 |
POMSU22SX |
5P |
155 |
52 |
- |
71 |
28 |
21 |
24 |
4 |
6 |
|
1 1/2-12UNF |
P4 |
POMSU24SX |
5P |
165 |
52 |
- |
76 |
30 |
23 |
26 |
4 |
6 |
| แบรนด์สินค้า | YAMAWA |
|---|
