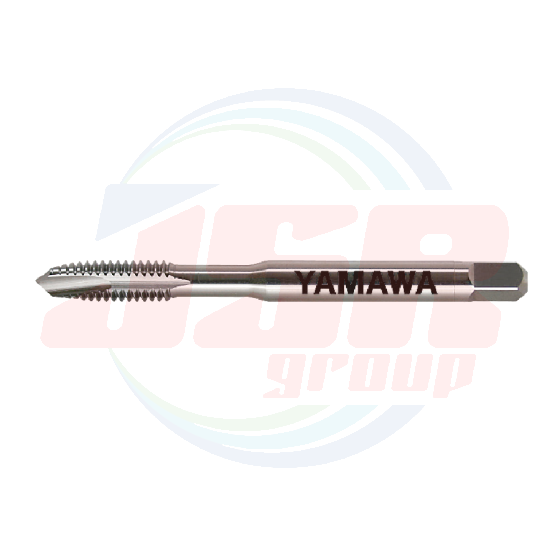

PO1/8SM44(POQS08G) | Spiral Pointed Taps | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 349.53
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
POQS08G
QTY:
10
ทดสอบ
Product Features
- The chips from the tap's cutting chamfer are pushed forward. This is optimal for through hole tapping where there are no obstructions created by the chip.
- Straight flutes are shallow so the taps strength is very high.
Chips discharge of a PO tap
Comparison of a PO and + PO tap
 |
 |
・ Both are general-purpose spiral point taps developed for the processing environment of our customers.
Application chart
Specification
Tapping Speeds depending on Materials
Segment：1F
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Screw Threads used on Sewing Machines |
||||||||||||
|
3/32SM56 |
P1 |
POPS06E |
5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
3 |
3 |
|
1/8SM40 |
P2 |
POQS08H |
5P |
52 |
11 |
16 |
28 |
5 |
4 |
7 |
3 |
3 |
|
1/8SM44 |
P2 |
POQS08G |
5P |
52 |
11 |
16 |
28 |
5 |
4 |
7 |
3 |
3 |
|
9/64SM40 |
P2 |
POQS09H |
5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
3 |
|
11/64SM40 |
P2 |
POQS11H |
5P |
60 |
13 |
21 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
3/16SM28 |
P2 |
POQS12K |
5P |
60 |
13 |
21 |
32 |
5.5 |
4.5 |
7 |
3 |
3 |
|
3/16SM32 |
P2 |
POQS12J |
5P |
60 |
13 |
21 |
32 |
5.5 |
4.5 |
7 |
3 |
3 |
|
7/32SM32 |
P2 |
POQS14J |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
15/64SM28 |
P2 |
POQS15K |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
1/4SM24 |
P2 |
POQS16M |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
1/4SM40 |
P2 |
POQS16H |
5P |
62 |
8.6 |
26 |
33 |
6 |
4.5 |
7 |
3 |
4 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 1/8SM40 (POQS08G) |
| Model | PO |
| Size | 1/8SM40 |
| Class | P2 |
| Chamfer | 5P |
| Overall length (L) | 52 |
| Thread length (ℓ) | 11 |
| Thread + Neck length (ℓn) | 16 |
| Shank length (ℓs) | 28 |
| Shank dia. (Ds) | 5 |
| Size of Square (K) | 4 |
| Length of square (ℓk) | 7 |
