Product Features
- The +PO is a spiral pointed tap for through hole tapping and is suitable for synchronous feed processing in middle to high tapping speed.
Specification
Tapping Speeds depending on Materials

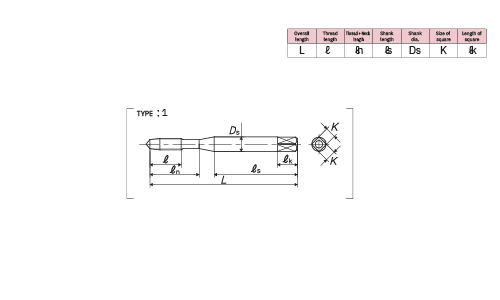

Segmet1F
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P2 |
PNPQ3.0G |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M3.5×0.6 |
P2 |
PNPQ3.5H |
5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M4×0.7 |
P2 |
PNPQ4.0I |
5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P2 |
PNPQ5.0K |
5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P2 |
PNPQ6.0M |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | M5×0.8 (PNPQ5.0K) |
| Model | +PO |
| Size | M5X0.8 |
| Class | P2 |
| Chamfer | 5P |
| Overall length (L) | 60 |
| Thread length (ℓ) | 13 |
| Thread + Neck length (ℓn) | 22 |
| Shank length (ℓs) | 33 |
| Shank dia. (Ds) | 5.5 |
| Size of Square (K) | 4.5 |
| Length of square (ℓk) | 7 |
