• This test indicator series is slimmer than standard test indicators without a clutch lever, making it more suitable for measuring deep points.

• Contact point length is printed on dial face to avoid accuracy issues.
Note 1: Attaching a contact point of incorrect length will lead to measurement failure.

• Glare-free flat crystal face allows easy reading of graduations. Multi-layer composite coatings make the crystal more anti-reflective and stain resistant.

• Bonding the bezel and crystal together leaves no gap for cutting fluid or oil to penetrate through to the dial face. (Note that this type is NOT water-proof.)

• Clutch type (with a clutch lever)
Note 2: See page 07-83 for notes on differences with models that do not have a clutch lever.

• A ø2 mm carbide contact point is supplied as standard. • Metric Dial Test Indicator is inspected according to JIS B 7533:2015. We guarantee accuracy by inspecting with the dial face facing upward.

Pocket Type Dial Test Indicator SERIES 513 | MITUTOYO
Pocket Type Dial Test Indicator SERIES 513 | MITUTOYO



    513-517-10E/
513-517-10T
    Standard
    Compact
    Carbide contact point

  Graduation: 0.01 mm
Range: 0.8 mm

    513-515-10E/
513-515-10T
    Long contact point
    Compact
    Carbide contact point

  Graduation: 0.01 mm
Range: 1 mm

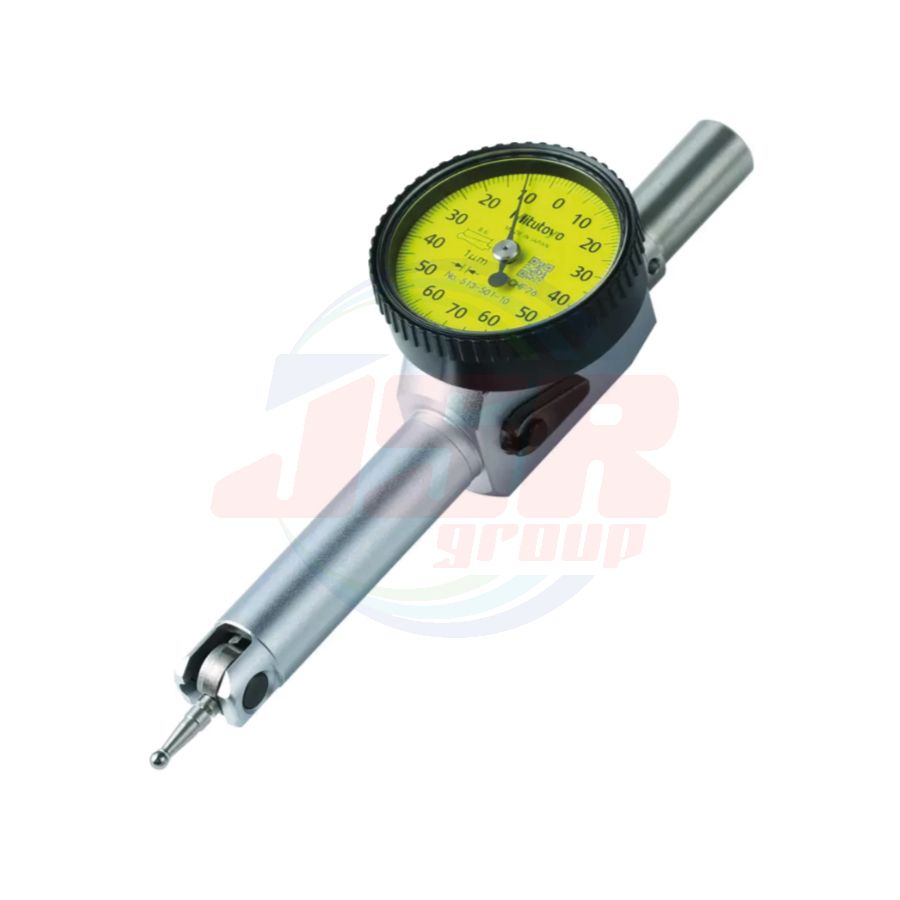

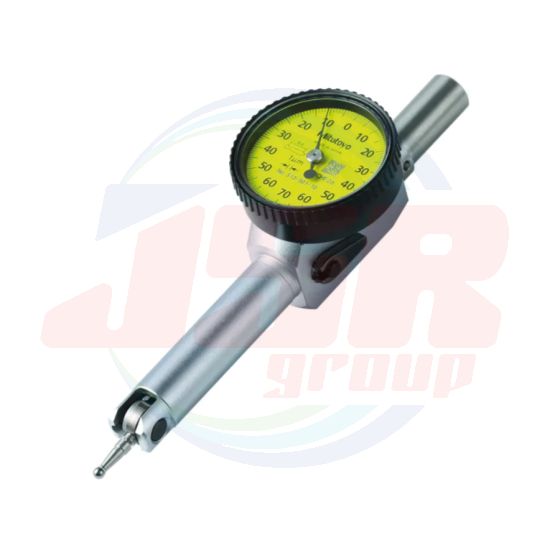

    513-501-10E/
513-501-10T
    High accuracy
    Compact
    Carbide contact point

  Graduation: 0.001 mm
Range: 0.14 mm

    513-514-10E/
513-514-10T
    Long contact point
    Double scale spacing
    Compact
      Carbide contact point
  Graduation: 0.01 mm
Range: 0.5 mm

    513-503-10E/
513-503-10T
    Standard
    Compact
    Carbide contact point

  Graduation: 0.002 mm
Range: 0.2 mm




More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO
Inch-Metric Metric
High accuracy No
With revolution counter No
Long contact point No
Standard No
Double scale spacing No
Compact No
Dustproof No
Carbide contact point No
Ruby contact point No
SPECIFICATIONS



Metric

Order No. Graduation (mm) Range (mm) Dial reading Maximum permissible error (MPE)* (μm) Mass (g) Measuring force (N) High accuracy With revolution counter Long contact point Standard Double scale spacing Compact Carbide contact point Ruby contact point
Basic set Full set Measuring range One rev. 10 scale divisions Hysteresis Repeatability
513-517-10E 513-517-10T 0.01 0.8 0-40-0 9 - 5 4 3 50 0.3 or less       √   √ √
513-514-10E 513-514-10T 0.01 0.5 0-25-0 10 - 5 5 3 51 0.3 or less     √   √ √ √
513-515-10E 513-515-10T 0.01 1 0-50-0 10 - 5 5 3 51 0.3 or less     √     √ √
513-503-10E 513-503-10T 0.002 0.2 0-100-0 4 - 2 3 1 50 0.4 or less       √   √ √
513-501-10E 513-501-10T 0.001 0.14 0-70-0 4 - 2 3 1 50 0.5 or less √         √ √



* We guarantee the accuracy of completed products by inspecting them with the dial face facing upward.

Note 1: Be sure to perform calibration with reference gage, etc. after exchanging the contact point. The inside parts may be damaged when the
contact point is exchanged due to the breakage. In the case the of the significant deterioration in the operation, repair is required.

Note 2: Stem is not included in the mass.

Note 3: 513-5XX-10 is indicated on the dial face and the inspection certificate.

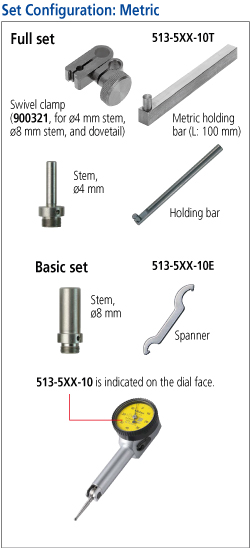

The code No. with suffix (E/ T) is a set item which includes accessories. The main unit is not available as a standalone item.

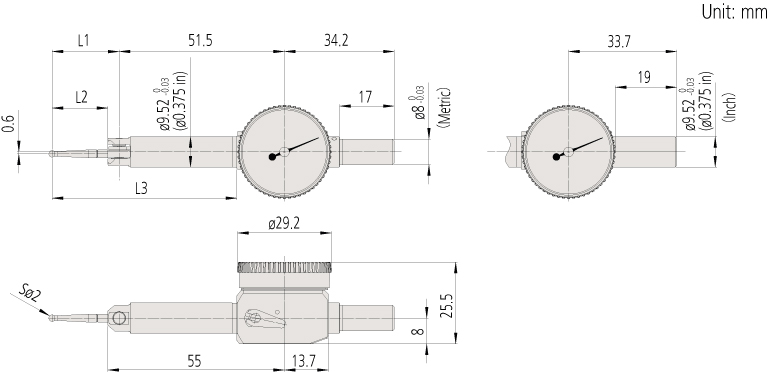

Dimension



Order No. L1 L2 L3
513-517-10E 20.9 17.4 57.6
513-514-10E 36.8 33.3 73.5
513-515-10E 44.5 41 81.2
513-503-10E 14.7 11.2 51.4
513-501-10E 12.1 8.6 48.7

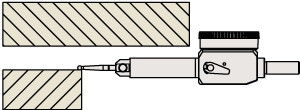

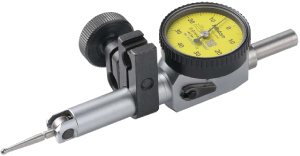

Pocket type can be fixed at the body (at ø9.52 (ø0.375 in))                            The slim body allows measurements in shallow space.
