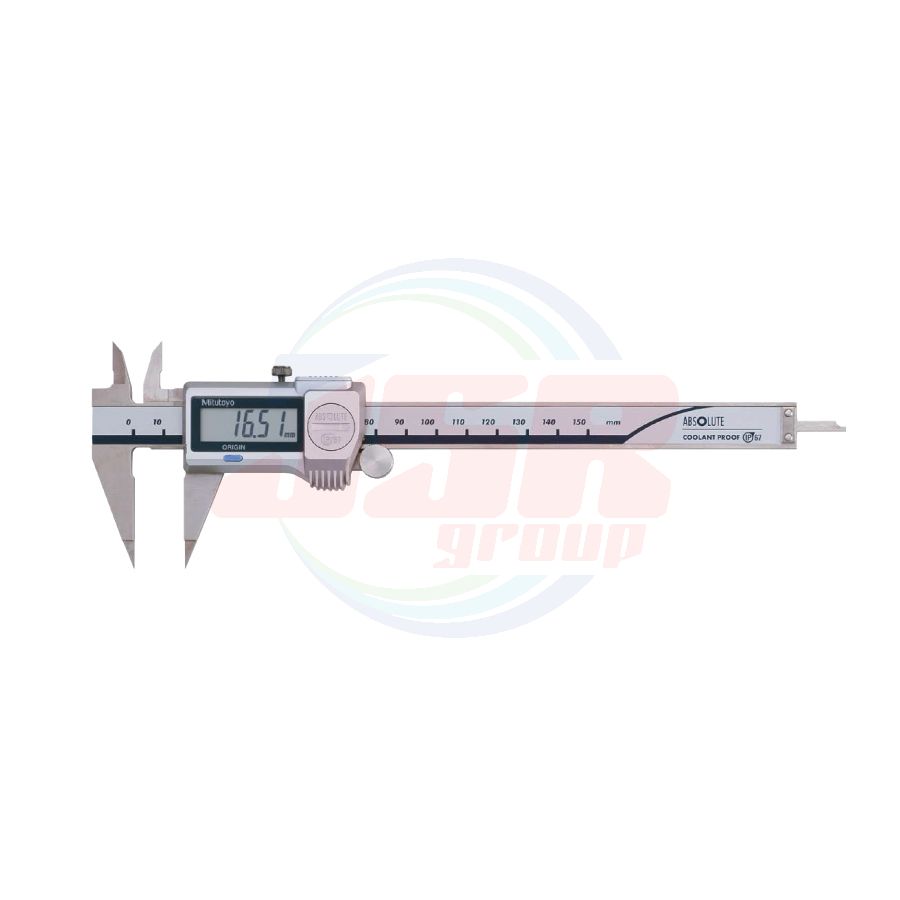

Point Caliper SERIES 573 — ABSOLUTE Digimatic Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 7,706.14
พร้อมส่ง
SKU
POINT-CALIPER

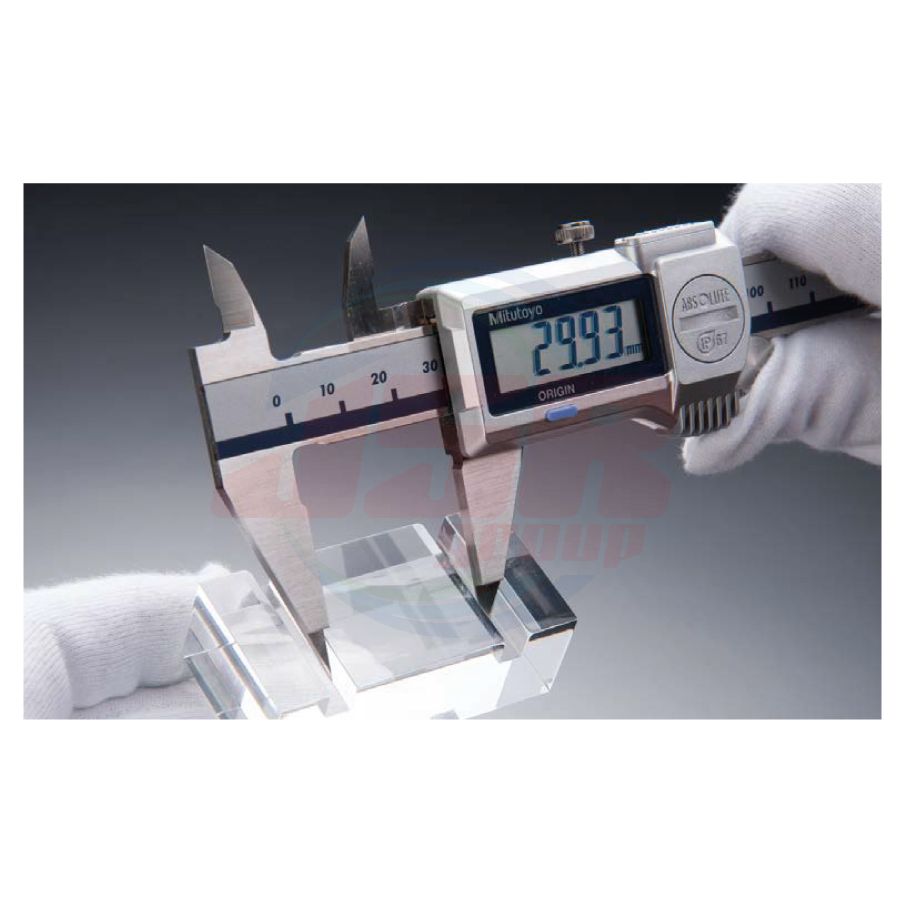

• Narrow-tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain.
SPECIFICATIONS
Metric ___ Digimatic model
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)*² | |
| E MPE | S MPE | |||
| 573-621-20 | 0 - 150 | 0.01 | ±0.02 | ±0.04 |
| 573-625-20 | 0 - 150 | |||
| 573-622-20*¹ | 0 - 150 | |||
| 573-626-20*¹ | 0 - 150 | |||
Inch / Metric ___ Digimatic model
| Order No. | Range | Resolution | Maximum permissible error*² | |
| E MPE | S MPE | |||
| 573-721-20 | 0 - 6 in/0 - 150 mm | 0.0005 in/0.01 mm | ±0.001 in/±0.02 mm | ±0.002 in/±0.04 mm |
| 573-725-20 | ||||
• Dust / Water protection level: IP67 (IEC 60529)*3
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 5 years under normal use
• Position detection method: ABSOLUTE electromagnetic induction linear encoder
• Response speed: Unlimited
• With depth bar
*1 Without thumb roller
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
*3 Rustproofing shall be applied after use if caliper was in contact with coolant.
| แบรนด์สินค้า | MITUTOYO |
|---|
