POINT MASTER WITH CARBIDE TIP
Suitable for scribing by milling operation.
Replaceable scriber is also available.
USE
●Scribing for milling operation
MATERIAL
● Body・Scriber: Carbon tool steel
● Tip: Carbide tip
FEATURES
● Spring loaded engraving tool
● High accuracy scribing can be performed
● Not necessary to rotate
● Tip angle of scriber（ included）： 60°
SPECIFICATIONS
●Slide width: 18mm
● Spring strength: 3.5-4N (for 10mm spring compression)
● Concentricity: 0.02mm
Steel ball diameter: 5mm
● Suitable feed speed: 145〜150mm/min（steel）

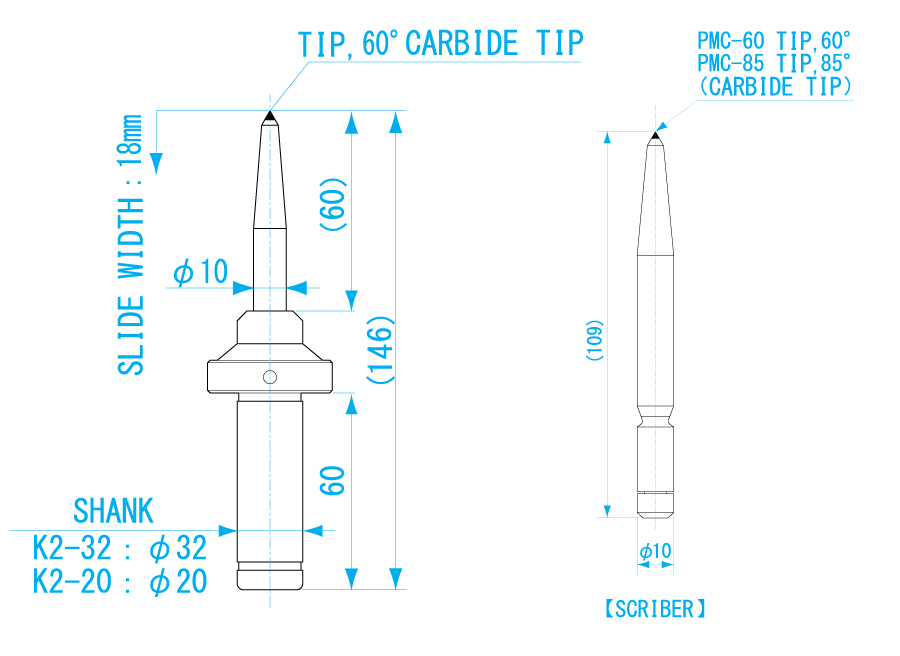

| Order No. | Model No. | Tip Angle | Length （mm） |
Scriber Diameter （mm） |
Weight |
| 013420 | K2-32 | 60° | 146 | 10 | 510g |
| 013425 | K2-20 | 60° | 146 | 10 | 280g |
| 013421 | PMC-60（ scriber | 60° | 109 | 10 | 54g |
| 013422 | PMC-85（ scriber） | 85° | 109 | 10 | 53g |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|
