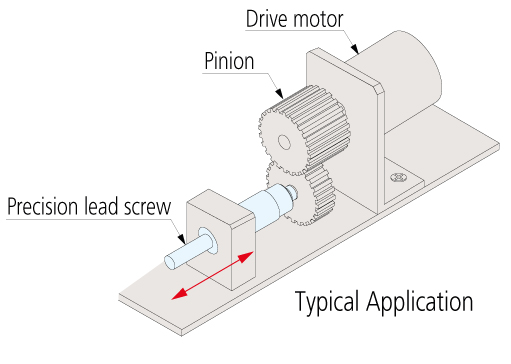

• Mitutoyo manufactures simple and economical precision lead screws for precise positioning mechanisms and fine-feed mechanisms, in addition to the conventional micrometer heads.
• Mitutoyo also manufactures lead screws with special specifications, such as 0.25 mm pitch, as well as those with the standard 0.5 mm feed pitch and with dimensions and forms that meet cusotmer's requirements.
| Order No. | Model* |
Range |
Feed pitch (mm) |
Feed accuracy (μm) |
Stem diameter (mm) |
Tip diameter (mm) |
Tail diameter (mm) |
Screw nominal diameter |
Sleeve diameter (mm) |
Measuring face |
Mass (g) |
||
| 04AZA160 | AS-6.5 | 0 - 6.5 | 0.5 | ±5 | ø6 |
0 |
ø3.5 | ø3 | 0 -0.01 |
M4.5×0.5 | ø7 | Hardened | 10 |
| 04AZA161 | BS-6.5 | 11 | |||||||||||
| 04AZA162 | AS-13 | 0 - 13 | ±2 | ø9.5 | 0 -0.009 |
ø5 | ø5 | 0 -0.012 |
M7.35×0.5 | ø10.5 | 27 | ||
| 04AZA163 | BS-13 | 30 | |||||||||||
| 04AZA164 | AS-25 | 0 - 25 | ø10 | 0 -0.009 |
ø6.35 | ø6 | 0 -0.015 |
ø12 | Carbide tip | 61 | |||
| 04AZA165 | BS-25 | 64 | |||||||||||
• Measuring face: Material / Alloy tool steel (AS-25 and BS-25 are Carbide tip),
Hardness / 60 HRC or more (AS-25 and BS-25 are 90 HRA or more), Lapped
• Durability: 100,000 operations are guaranteed (use condition: 4 kg load; 2 kg for AS-6.5 and BS-6.5)

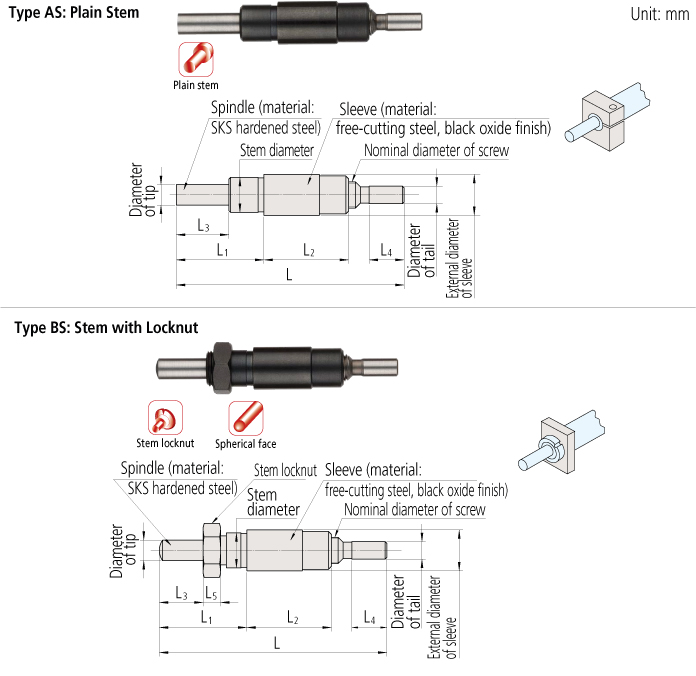

* AS type: Flat spindle tip without nut, BS type: Spherical spindle tip with nut
| แบรนด์สินค้า | MITUTOYO |
|---|
| Order No. | L | L1 | L2 | L3 | L4 | L5 |
| 04AZA160 | 39 | 15 | 14.5 | 9 | 6 | - |
| 04AZA161 | 7.5 | 3 | ||||
| 04AZA162 | 57.5 | 25 | 21.5 | 15.5 | 8 | - |
| 04AZA163 | 4 | |||||
| 04AZA164 | 96.5 | 42 | 39.5 | 27 | 10 | - |
| 04AZA165 | 4 |
