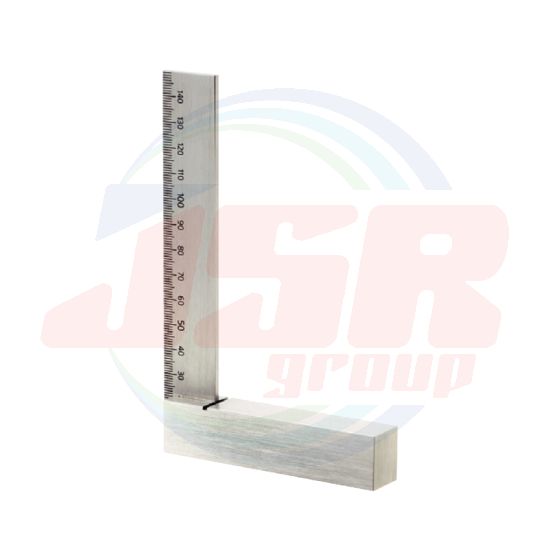

PRECISION SQUARE WITH METRIC GRADUATED BLADE (C TYPE) | NIIGATA SEIKI (SK)
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
SK-CPS
USE :
• Measurement of squareness
MATERIAL :
• Machine grade carbon steel.
FEATURES :
• Graduated with 1mm division
• JIS Grade 2 equivalent
Squareness ± (20 + L 10 ) µm (L: Nominal Size)

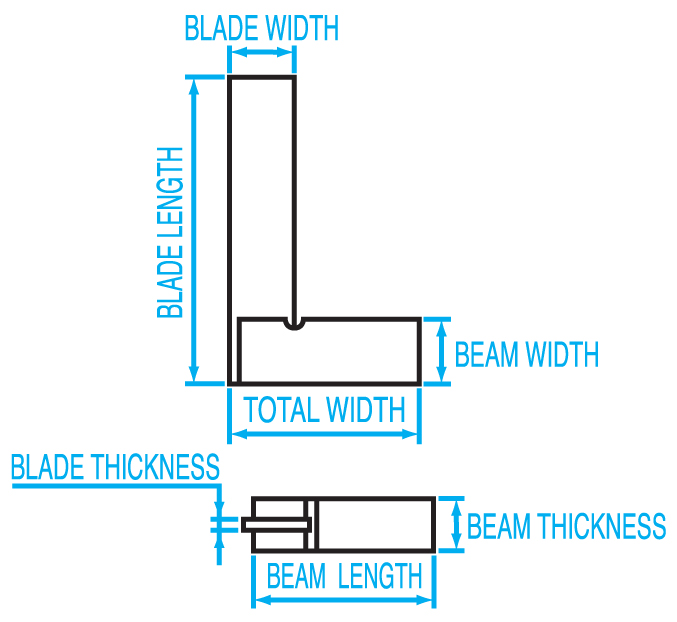

| Order No. | Model No. | Nominal Size (mm) | Blade Length (mm) | Blade Width (mm) | Blade Thickness (mm) | Base Length (mm) | Base Width (mm) | Base Thickness (mm) | Graduation Accuracy (±mm) | Squareness (±mm) | Weight |
| C-100 | 002503 | 100 | 100 | 20 | 2.5 | 70 | 19 | 12 | 0.4 | 0.03 | 150g |
| C-150 | 002505 | 150 | 150 | 24 | 3 | 100 | 22 | 18 | 0.035 | 365g | |
| C-200 | 002507 | 200 | 200 | 29 | 3.5 | 130 | 26 | 22 | 0.04 | 700g | |
| C-250 | 002508 | 250 | 250 | 165 | 0.045 | 900g | |||||
| C-300 | 002509 | 300 | 300 | 35 | 4 | 200 | 32 | 27 | 0.05 | 1.5kg | |
| C-400 | 002511 | 400 | 400 | 40 | 5 | 40 | 0.06 | 2.1kg | |||
| C-500 | 002513 | 500 | 500 | 46 | 300 | 45 | 35 | 0.07 | 4.3kg | ||
| C-600 | 002515 | 600 | 600 | 50 | 320 | 55 | 0.08 | 5.7kg | |||
| C-1000 | 002523 | 1000 | 1000 | 65 | 10.0 | 550 | 80 | 65 | 0.12 | 24.2kg |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|
