PRECISION SQUARE WITH METRIC GRADUATED BLADE (E TYPE) | NIIGATA SEIKI (SK)
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
SK-PSMGE
USE :
• Measurement of squareness
MATERIAL :
• Machine grade carbon steel.
FEATURES :
• Graduated with 1mm division
• JIS Grade 2 equivalent
Squareness ± (20 + L 10 ) µm (L: Nominal Size)

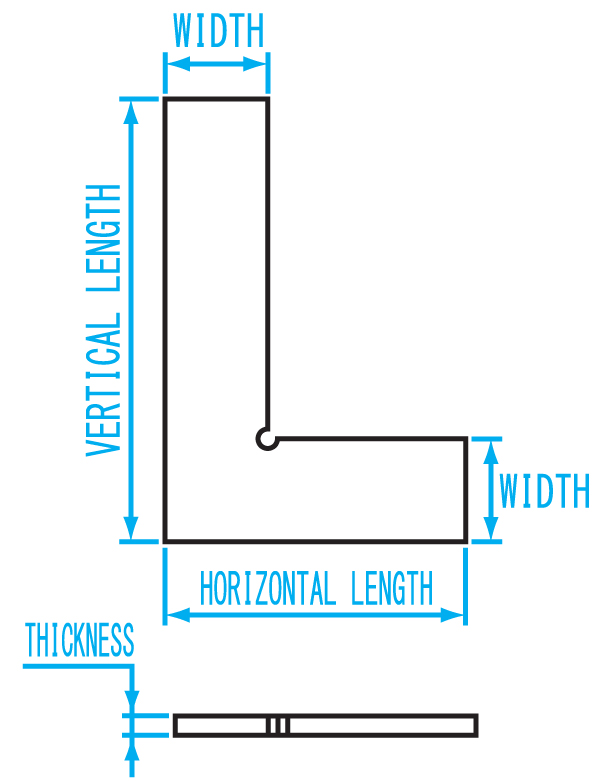

| Order No. | Model No. | Nominal Size (mm) | Vertical Length (mm) | Horizontal Length (mm) | Width (mm) | Thickness (mm) | Graduation Accuracy (±mm) | Squareness (±mm) | Weight |
| E-100 | 002603 | 100 | 100 | 70 | 20 | 4 | 0.4 | 0.03 | 94g |
| E-150 | 002605 | 150 | 150 | 100 | 25 | 5 | 0.035 | 220g | |
| E-200 | 002607 | 200 | 200 | 130 | 6 | 0.04 | 360g | ||
| E-250 | 002608 | 250 | 250 | 165 | 30 | 0.045 | 450g | ||
| E-300 | 002609 | 300 | 300 | 200 | 40 | 8 | 0.05 | 660g | |
| E-400 | 002611 | 400 | 400 | 0.06 | 1.5kg | ||||
| E-500 | 002613 | 500 | 500 | 300 | 0.07 | 2.0kg | |||
| E-600 | 002615 | 600 | 600 | 325 | 50 | 10 | 0.08 | 3.4kg | |
| E-1000 | 002623 | 1000 | 1000 | 550 | 60 | 12 | 0.12 | 8.3kg |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|
