PRECISION TORQUE MULTIPLIERS | EGA MASTER
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
EGA-PTM

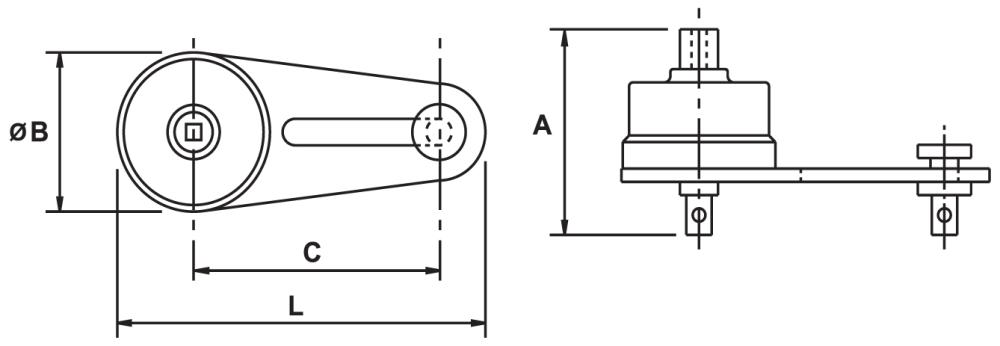

| Order No. | OUT (max.) N.m | OUT (max.) Lb.ft | IN (max.) N.m | IN (max.) Lb.ft | IN (inch) | OUT (inch) | L (mm) | A (mm) | Ø B(mm) | C(mm) | Weight (Kg) |  |
| 63850 | 1700 | 1250 | 378 | 279 | 1/2 | 3/4 | 310 | 85 | 115 | 165 | 4.5 | 62954, 62957, 62958, 62961, 62962,62963, 62968 |
| 63851 | 1700 | 1250 | 378 | 279 | 3/4 | 1 | 310 | 90 | 115 | 165 | 5.0 | 62969 |
| 63852 | 1700 | 1250 | 75 | 55 | 1/2 | 1 | 310 | 120 | 115 | 165 | 7.0 | 62954, 62957, 62958, 62961, 62962,62963, 62968 |
| 63853 | 2700 | 2000 | 60 | 442 | 3/4 | 1 | 365 | 135 | 135 | 260 | 8.0 | 62969 |
| 63854 | 2700 | 2000 | 120 | 88 | 1/2 | 1 | 365 | 165 | 135 | 260 | 11 | 62954, 62957, 62958, 62961, 62962,62963, 62968 |
| 63855 | 3400 | 2500 | 750 | 553 | 3/4 | 1 1/2 | 365 | 150 | 135 | 260 | 8.5 | 62969 |
| 63856 | 3400 | 2500 | 150 | 110 | 1/2 | 1 1/2 | 365 | 175 | 135 | 260 | 11.5 | 62954, 62957, 62958, 62961, 62962,62963, 62968 |
| 63857 | 6000 | 4500 | 1352 | 977 | 3/4 | 1 1/2 | 450 | 175 | 170 | 310 | 15 | 62969 |
| 63858 | 6000 | 4500 | 264 | 194 | 1/2 | 1 1/2 | 450 | 255 | 170 | 310 | 28 | 62954, 62957, 62958, 62961, 62962,62963, 62968 |
| 63859 | 9500 | 7000 | 420 | 309 | 3/4 | 2 1/2 | 500 | 255 | 195 | 350 | 32 | 62969 |
Example:
To obtain an output torque of 1800Nm, user should apply an input torque of:
Input torque = output torque x net ratio multiplication factor
1800 x 1/4.5 = 400Nm
| Order No. | Torque multiplication ratio | Net ratio | Accuracy (%) | Accuracy | Non-return system |
| 63850 | 5:1 | 4.5:1 | 90 | ±4 | - |
| 63851 | 5:1 | 4.5:1 | 90 | ±4 | - |
| 63852 | 25:1 | 22.5:1 | 90 | ±4 | • |
| 63853 | 5:1 | 4.5:1 | 90 | ±4 | - |
| 63854 | 25:1 | 22.5:1 | 90 | ±4 | • |
| 63855 | 5:1 | 4.5:1 | 90 | ±4 | - |
| 63856 | 25:1 | 22.5:1 | 90 | ±4 | • |
| 63857 | 5:1 | 4.5:1 | 90 | ±4 | - |
| 63858 | 25:1 | 22.5:1 | 90 | ±4 | • |
| 63859 | 25:1 | 22.5:1 | 90 | ±4 | • |
NON-RETURN SYSTEM:
Torque multipliers with a 22.5:1 relation gearbox, include a non-return system to avoid the reaction induced in the grip.
This system locks up the nut, not allowing the torque multiplier to rewind, due to the high ratio level supported.
These guarantees the user a safe, easy and comfortable use.
All models have a special case in order to be well protected and easy to transport.
