PS LH (Pipe Threads)| Hand Taps for Parallel Pipe Threads, for LH Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 640.19
พร้อมส่ง
SKU
PS LH (Pipe Threads)
- The PS LH is a hand tap for left hand parrallel pipe threads and is used for products whose main purpose is the tightness of threaded parts in connecting piping parts. The PS internal thread is used for fitting with PT external thread.
Specification
Tapping Speeds depending on Materials
Segment：1G
|

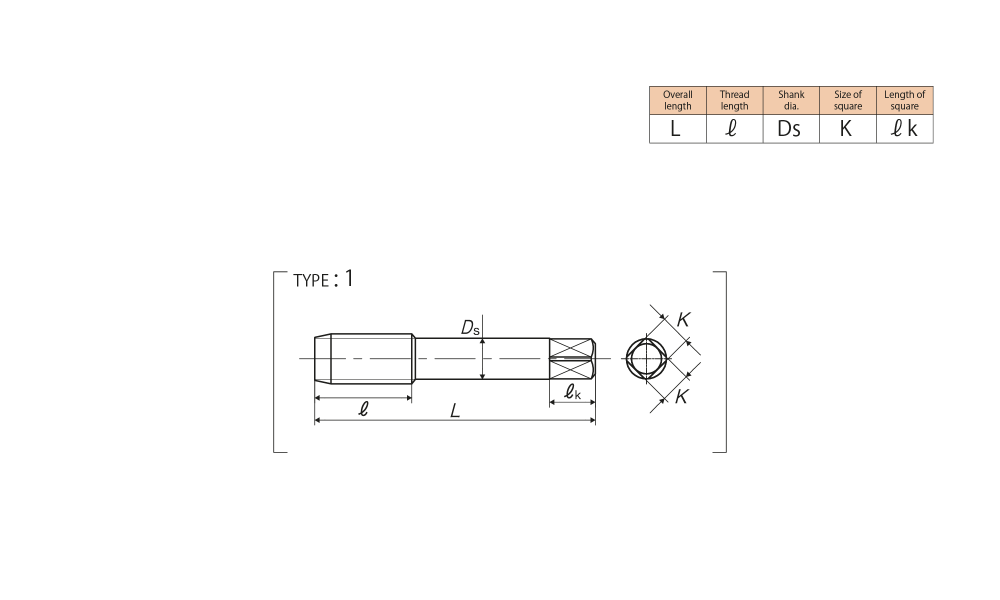

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||
|
PS 1/8-28 |
Ⅱ |
TH2P02K--L |
3.5P |
9.728 |
55 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PS 1/4-19 |
Ⅱ |
TH2P04---L |
3.5P |
13.157 |
62 |
28 |
11 |
9 |
12 |
4 |
1 |
|
PS 3/8-19 |
Ⅱ |
TH2P06---L |
3.5P |
16.662 |
65 |
28 |
14 |
11 |
14 |
4 |
1 |
|
PS 1/2-14 |
Ⅱ |
TH2P08Q--L |
3.5P |
20.955 |
80 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PS 3/4-14 |
Ⅱ |
TH2P12Q--L |
3.5P |
26.441 |
85 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PS 1 -11 |
Ⅱ |
TH2P16U--L |
3.5P |
33.249 |
95 |
45 |
26 |
21 |
24 |
5 |
1 |
|
PS 1 1/4-11 |
Ⅱ |
TH2P20U--L |
3.5P |
41.910 |
105 |
45 |
32 |
26 |
30 |
5 |
1 |
|
PS 1 1/2-11 |
Ⅱ |
TH2P24U--L |
3.5P |
47.803 |
110 |
45 |
38 |
29 |
32 |
6 |
1 |
|
PS 2 -11 |
Ⅱ |
TH2P32U--L |
3.5P |
59.614 |
120 |
50 |
46 |
35 |
38 |
6 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
