PS (Pipe Threads)
- The PS is a hand tap for parallel pipe threads and is used for products whose main purpose is the tightness of the threaded part in connection with pipe parts etc. The PS internal thread is used for fitting with PT external thread.

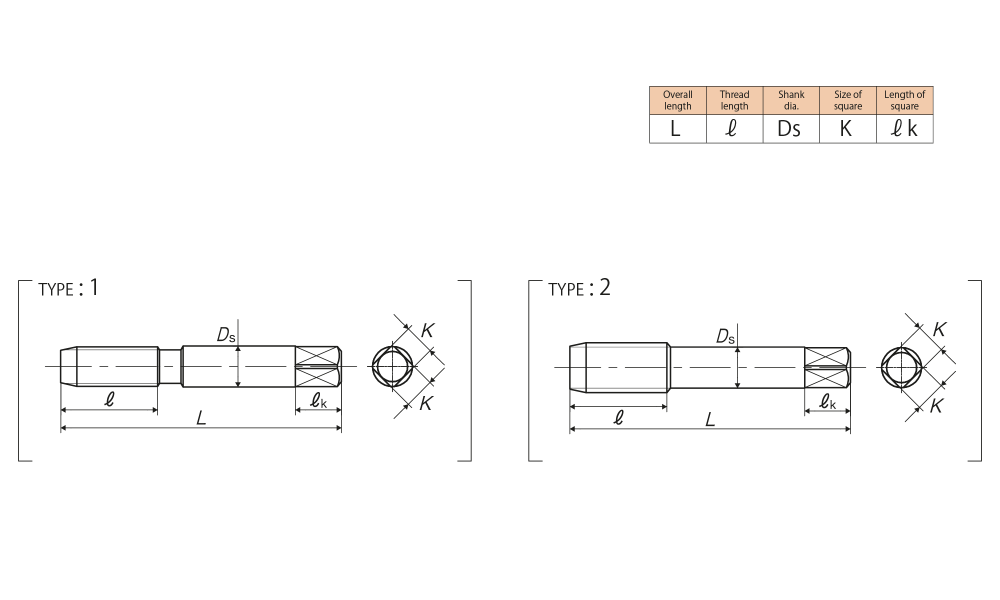

Specification

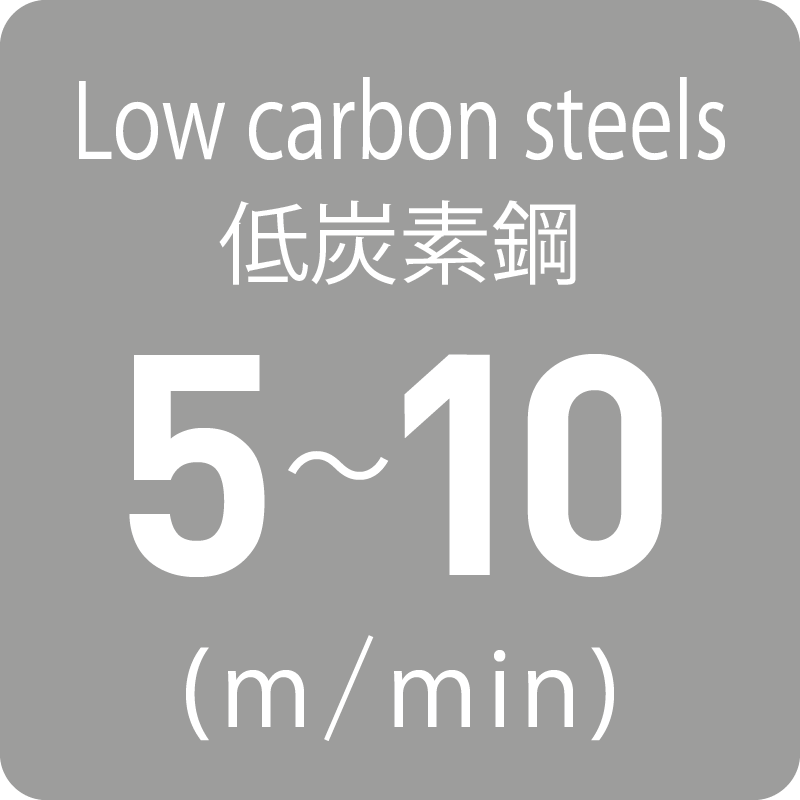

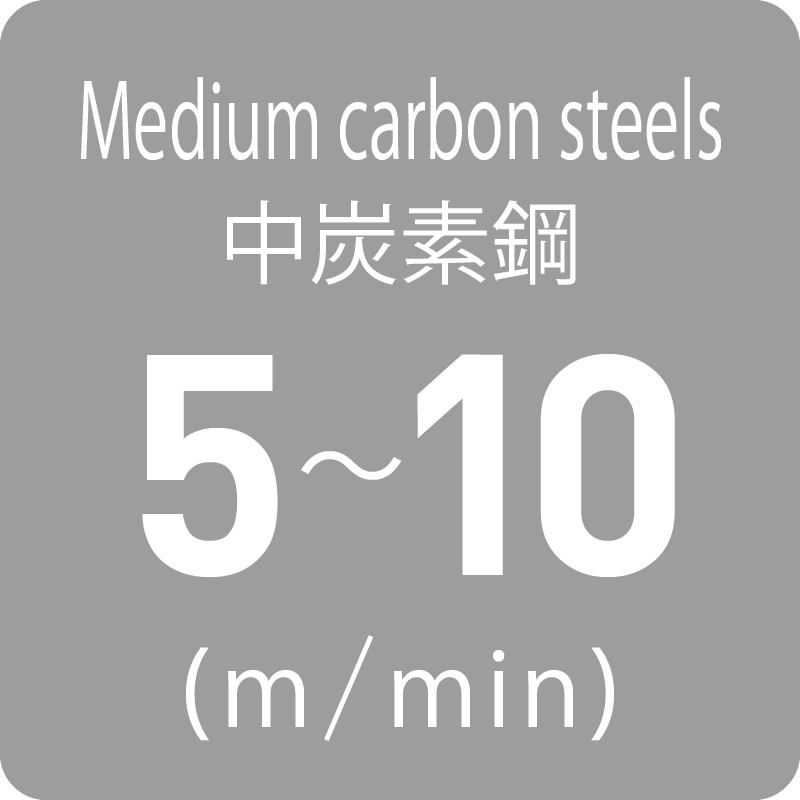

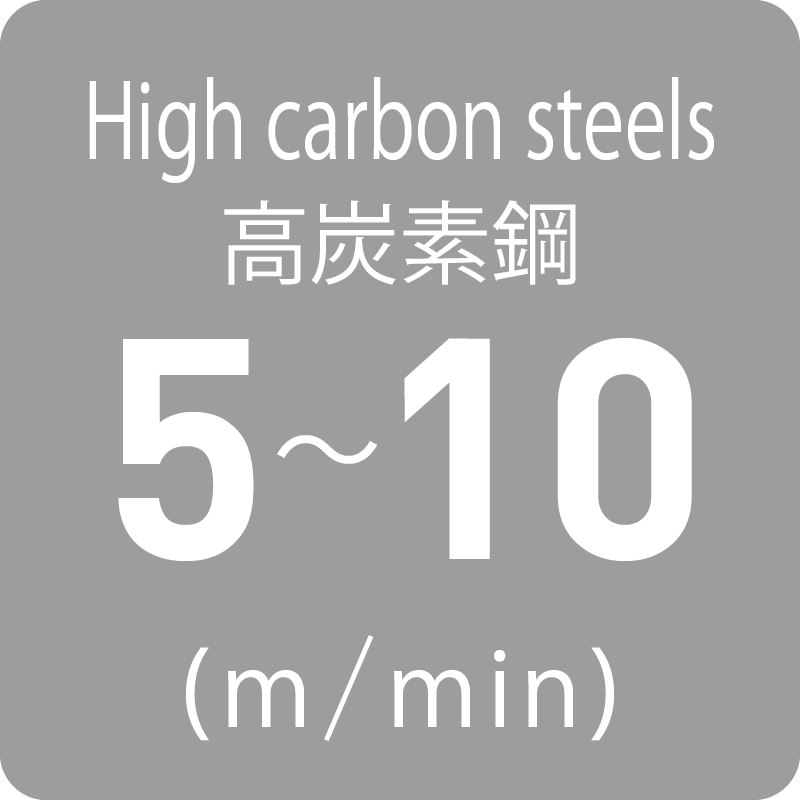

Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||
|
PS 1/16-28 |
Ⅱ |
TH2P01K-8 |
3.5P |
7.723 |
55 |
19 |
8 |
6 |
9 |
4 |
1 |
|
PS 1/8-28 |
Ⅱ |
TH2P02K |
3.5P |
9.728 |
55 |
19 |
8 |
6 |
9 |
4 |
2 |
|
PS 1/8-28 |
Ⅱ |
TH2P02K1 |
1.5P |
9.728 |
55 |
19 |
8 |
6 |
9 |
4 |
2 |
|
PS 1/4-19 |
Ⅱ |
TH2P04- |
3.5P |
13.157 |
62 |
28 |
11 |
9 |
12 |
4 |
2 |
|
PS 1/4-19 |
Ⅱ |
TH2P04-1 |
1.5P |
13.157 |
62 |
28 |
11 |
9 |
12 |
4 |
2 |
|
PS 3/8-19 |
Ⅱ |
TH2P06- |
3.5P |
16.662 |
65 |
28 |
14 |
11 |
14 |
4 |
2 |
|
PS 3/8-19 |
Ⅱ |
TH2P06-1 |
1.5P |
16.662 |
65 |
28 |
14 |
11 |
14 |
4 |
2 |
|
PS 1/2-14 |
Ⅱ |
TH2P08Q |
3.5P |
20.955 |
80 |
35 |
18 |
14 |
17 |
4 |
2 |
|
PS 1/2-14 |
Ⅱ |
TH2P08Q1 |
1.5P |
20.955 |
80 |
35 |
18 |
14 |
17 |
4 |
2 |
|
PS 5/8-14 |
Ⅱ |
TH2P10Q |
3.5P |
22.911 |
82 |
35 |
19 |
15 |
18 |
4 |
2 |
|
PS 3/4-14 |
Ⅱ |
TH2P12Q |
3.5P |
26.441 |
85 |
35 |
23 |
17 |
20 |
4 |
2 |
|
PS 3/4-14 |
Ⅱ |
TH2P12Q1 |
1.5P |
26.441 |
85 |
35 |
23 |
17 |
20 |
4 |
2 |
|
PS 7/8-14 |
Ⅱ |
TH2P14Q |
3.5P |
30.201 |
90 |
40 |
24 |
19 |
22 |
4 |
2 |
|
PS 1 -11 |
Ⅱ |
TH2P16U |
3.5P |
33.249 |
95 |
45 |
26 |
21 |
24 |
5 |
2 |
|
PS 1 -11 |
Ⅱ |
TH2P16U1 |
1.5P |
33.249 |
95 |
45 |
26 |
21 |
24 |
5 |
2 |
|
PS 1 1/8-11 |
Ⅱ |
TH2P18U |
3.5P |
37.897 |
100 |
45 |
28 |
21 |
24 |
5 |
2 |
|
PS 1 1/4-11 |
Ⅱ |
TH2P20U |
3.5P |
41.910 |
105 |
45 |
32 |
26 |
30 |
5 |
2 |
|
PS 1 1/4-11 |
Ⅱ |
TH2P20U1 |
1.5P |
41.910 |
105 |
45 |
32 |
26 |
30 |
5 |
2 |
|
PS 1 1/2-11 |
Ⅱ |
TH2P24U |
3.5P |
47.803 |
110 |
45 |
38 |
29 |
32 |
6 |
2 |
|
PS 1 1/2-11 |
Ⅱ |
TH2P24U1 |
1.5P |
47.803 |
110 |
45 |
38 |
29 |
32 |
6 |
2 |
|
PS 1 3/4-11 |
Ⅱ |
TH2P28U |
3.5P |
53.746 |
115 |
45 |
42 |
32 |
35 |
6 |
2 |
|
PS 2 -11 |
Ⅱ |
TH2P32U |
3.5P |
59.614 |
120 |
50 |
46 |
35 |
38 |
6 |
2 |
|
PS 2 1/4-11 |
Ⅱ |
TH2P36U |
3.5P |
65.710 |
145 |
65 |
50 |
38 |
42 |
6 |
2 |
|
PS 2 1/2-11 |
Ⅱ |
TH2P40U |
3.5P |
75.184 |
145 |
65 |
55 |
41 |
44 |
8 |
2 |
|
PS 3 -11 |
Ⅱ |
TH2P48U |
3.5P |
87.884 |
155 |
65 |
65 |
50 |
52 |
8 |
2 |
|
PS 3 1/2-11 |
Ⅱ |
TH2P56U |
3.5P |
100.330 |
165 |
68 |
70 |
54 |
58 |
8 |
2 |
|
PS 4 -11 |
Ⅱ |
TH2P64U |
3.5P |
113.030 |
170 |
70 |
75 |
58 |
62 |
10 |
2 |
