PS Type Test Indicator | TECLOCK
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TEC-PS
PS Type Test Indicator
• Shock from the angle excepting measuring direction can be avoided and body is protected by Teclock original shock preventing mechanism (PS mechanism) of center of stylus.
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Dial Reading |
Measuring Force (N) |
Repeatability (μm) |
Adjacent Error(μm) |
Entire measuring range in foward direction Error(μm) |
Hysteresis (μm) |
Standard Stylus |
Weight (g) |
| LT-315PS | 0.01 | 0.8 | 0-40-0 | 0.4 or less | 3 | 5 | 9 | 4 | ZS-703 | 70 |
| LT-316PS | 0.01 | 1.0 | 0-50-0 | 0.4 or less | 3 | 5 | 10 | 5 | ZS-705 | 70 |
Final inspection is done in the horizontal orientation and the accuracy is guaranteed.
| แบรนด์สินค้า | TECLOCK |
|---|

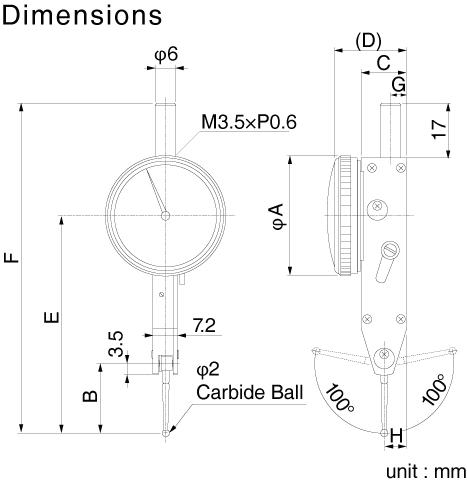

| Order No. | A | B | C | D | E | F | G | H |
| LT-315PS | 35 | 20.1 | 13.5 | 23 | 63.1 | 97.1 | 4.8 | 6.8 |
| LT-316PS | 35 | 42.9 | 13.5 | 23 | 85.9 | 120 | 4.8 | 6.8 |
