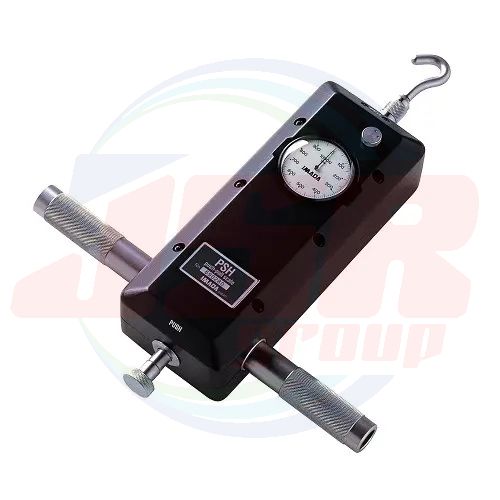

PSH-500N | High Capacity Model Mechanical Force Gauge | IMADA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 30,009.35
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
PSH-500N
QTY:
5
High-capacity type mechanical force gauge has capacity of 3000N. They support compression and tension, and equipped with a stop needle mechanism that stops the needle at the peak value.
Feature
- Easy handling with less risk of malfunctions or glitches caused by external circumstances such as noise or static electricity due to the rugged mechanical construction
- High precision and capacity model which is ideal for precise test
- Measures both compression and tension force
- Captures peak value easily using switchable peak hold function
- Assists accurate measurement with tare ring to adjust zero
Specifications
| Model | PSH |
| Stroke | 10mm |
| Measuring units | See [Model lists] |
| Reading method | Real time/Peak hold (switchable) |
| Scales *1 | 100 lines |
| Accuracy | ±0.1%F. S or less |
| Operating environment | 0~+40℃ |
| Dimension | See [Dimension] |
| Weight *2 | Approx. 3.1kg |

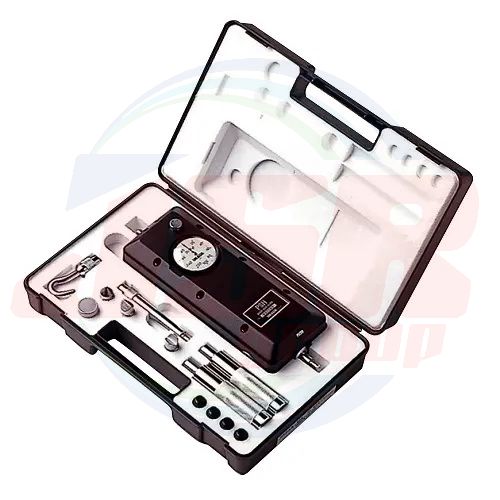

| Standard accessories | 6 pcs of attachments, Handles*2, Instruction manual, Mounting bolts *4, Carry case, Inspection certificate etc. |
It is not suitable for breaking test with large impact or test with continues vibration due to its spring structures.
*1 International models are not able to sell in Japan due to the Measurement Act.
*2 120 lines for 3000N, 300K, 300lb. *3 The weight is depending on the range.
| 8 standard attachments | |||
| Small hook B-1 | Flat tip B-2 | Conical tip B-3 | Chisel tip B-4 |
 |
 |
 |
 |
| Notched tip B-5 | Extension shaft B-6 | Handles B-7 | Mounting Bolts B-8 |
 |
 |
 |
 |
* Force gauges with capacities from 100N or less come with aluminum made attachments (A-type), 200N to 1000N come with steel made attachments (S-type).
| Model lists (N unit) | ||||
| Model | Capacity | Resolution | Thread | Standard attachments |
| PSH-500N | 500N | 5N | M10 | B-1～B-8 |
| แบรนด์สินค้า | IMADA |
|---|---|
| Order No. | PSH-500N |
