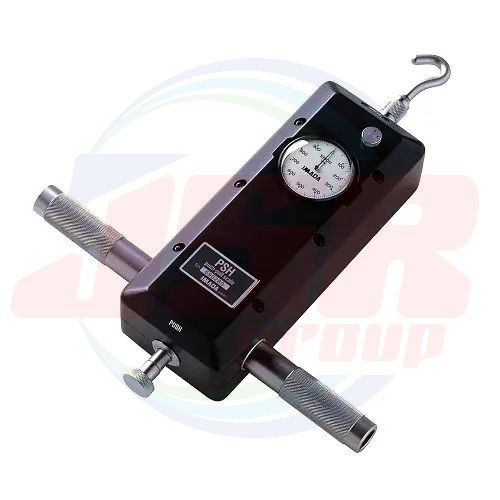

PSH Series | High Capacity Model Mechanical Force Gauge | IMADA

Feature

• Easy handling with less risk of malfunctions or glitches caused by external circumstances such as noise or static electricity due to the rugged mechanical construction
• High precision and capacity model which is ideal for precise test
• Measures both compression and tension force
• Captures peak value easily using switchable peak hold function
• Assists accurate measurement with tare ring to adjust zero

Specifications

 It is not suitable for breaking test with large impact or test with continues vibration due to its spring structures.

*1 International models are not able to sell in Japan due to the Measurement Act.

*2 120 lines for 3000N, 300K, 300lb. *3 The weight is depending on the range.

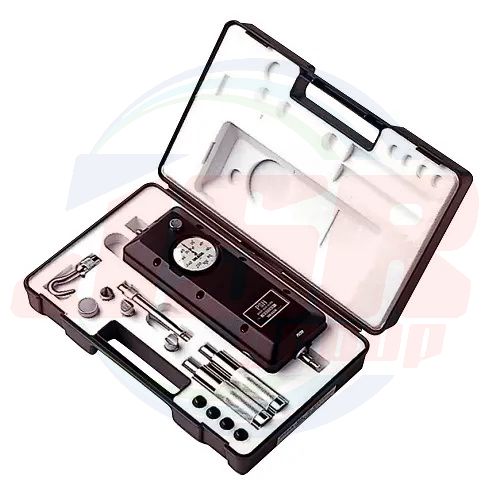

8 standard attachments
Small hook B-1	Flat tip  B-2	Conical tip  B-3	Chisel tip  B-4
Notched tip B-5	Extension shaft B-6	Handles  B-7	Mounting Bolts  B-8

* Force gauges with capacities from 100N or less come with aluminum made attachments (A-type), 200N to 1000N come  with steel made attachments (S-type).

Model lists (N unit)
Model	Capacity	Resolution	Thread	Standard attachments
PSH-500N	500N	5N	M10	B-1～B-8
PSH-1000N	1000N	10N
PSH-2000N	2000N	20N
PSH-3000N	3000N	25N



International model (kgf unit) *
Model	Capacity	Resolution	Thread	Standard attachments
PSH-50K	50kgf	0.5kgf	M10	B-1～B-8
PSH-100K	100kgf	1kgf
PSH-200K	200kgf	2kgf
PSH-300K	300kgf	2.5kgf

* International models are not able to sell in Japan due to the Measurement Act.

International model (lbf unit) *
Model	Capacity	Resolution	Thread	Standard attachments
PSH-200lb	200lbf	2lbf	M10	B-1～B-8
PSH-300lb	300lbf	2.5lbf
PSH-500lb	500lbf	5lbf

* International models are not able to sell in Japan due to the Measurement Act.
