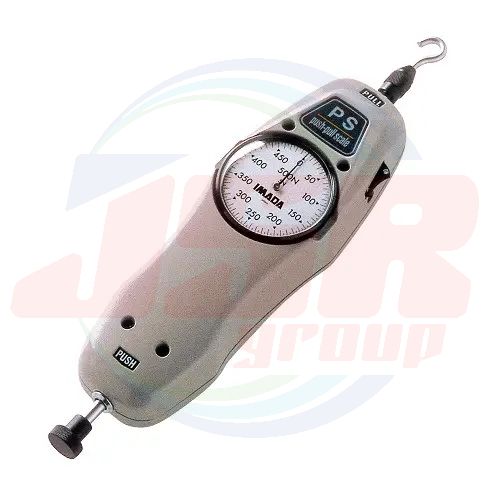

Standard Type Mechanical force gauges has capacity of 500N, and are with high accuracy of ±0.1%. They support compression and tension, and are equipped with a stop mechanism so that peak values can be measured.
Feature
- Easy handling with less risk of malfunctions or glitches caused by external circumstances such as noise or static electricity due to the rugged mechanical construction
- Ideal for pricise measurements with the highest accuracy
- Measures both compression and tension force
- Captures peak value easily using switchable peak hold function
- Assists accurate measurement with tare ring to adjust zero
Specifications
| Model | PSS (International model) *1 |
| Stroke | 10mm |
| Measuring units | See [Model lists] |
| Reading method | Real time/Peak hold (switchable) |
| Scales *2 | 100 lines |
| Accuracy | ±0.1%F. S or less |
| Operating environment | 0~+40℃ |
| Dimension | See [Dimension] |
| Weight *3 | Approx. 580g |

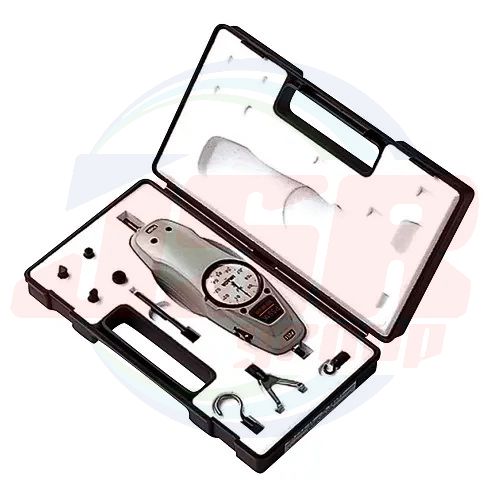

| Standard accessories | 8 pcs of attachments, Instruction manual, Carry case, Inspection certificate etc. |
* It is not suitable for breaking test with large impact or test with continues vibration due to its spring
structures.
*1 International models are not able to sell in Japan due to the Measurement Act.
*2
120 lines for 30N, 300N, 3K, 30K, 30lb.
*3 The weight is depending on the range.
| 8 standard attachments | |||
| Small hook A-1(S-1) |
Flat tip A-2(S-2) |
Conical tip A-3(S-3) |
Chisel tip A-4(S-4) |
 |
 |
 |
 |
| Notched tip A-5(S-5) |
Extension shaft A-6(S-6) |
Large hook A-7(S-7) |
Y hook A-8(S-8) |
 |
 |
 |
 |
- * Force gauges with capacities from 100N or less come with aluminum made attachments (A-type), 200N to 1000N come with steel made attachments (S-type).
| International model (kgf unit) * | ||||
| Model | Capacity | Resolution | Thread | Standard attachments |
| PSS-3K | 3kgf | 25gf | M6 | A-1～A-8 |
| แบรนด์สินค้า | IMADA |
|---|---|
| Order No. | PSS-3K |
