PT (Pipe Threads) | Hand Taps for Taper Pipe Threads, Long (ℓg) Type | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 603.74
พร้อมส่ง
SKU
PT (Pipe Threads)
- The PT is a hand tap for tapered pipe threads and is used for tapping products whose main purpose is the tightness of the threaded portion when connecting pipe parts etc.
Specification
Tapping Speeds depending on Materials
Segment：1G
|

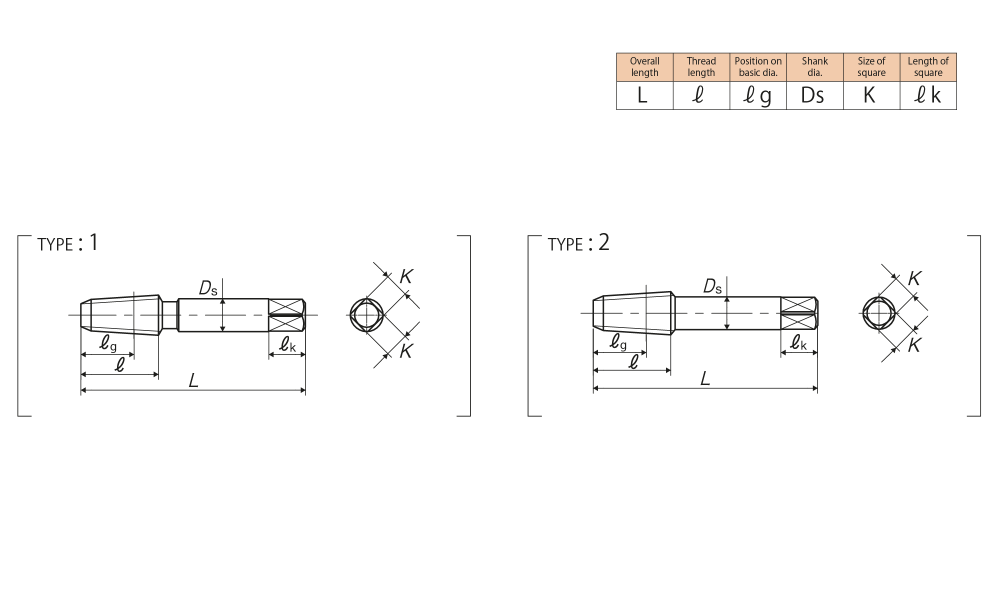

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/16-28 |
Ⅱ |
TH2T01K-8 |
2.5P |
7.723 |
55 |
19 |
13 |
8 |
6 |
9 |
4 |
1 |
|
PT 1/8-28 |
Ⅱ |
TH2T02K |
2.5P |
9.728 |
55 |
19 |
13 |
8 |
6 |
9 |
4 |
2 |
|
PT 1/4-19 |
Ⅱ |
TH2T04- |
2.5P |
13.157 |
62 |
28 |
21 |
11 |
9 |
12 |
4 |
2 |
|
PT 3/8-19 |
Ⅱ |
TH2T06- |
2.5P |
16.662 |
65 |
28 |
21 |
14 |
11 |
14 |
4 |
2 |
|
PT 1/2-14 |
Ⅱ |
TH2T08Q |
2.5P |
20.955 |
80 |
35 |
25 |
18 |
14 |
17 |
4 |
2 |
|
PT 5/8-14 |
Ⅱ |
TH2T10Q |
2.5P |
22.911 |
82 |
35 |
25 |
19 |
15 |
18 |
4 |
2 |
|
PT 3/4-14 |
Ⅱ |
TH2T12Q |
2.5P |
26.441 |
85 |
35 |
25 |
23 |
17 |
20 |
4 |
2 |
|
PT 7/8-14 |
Ⅱ |
TH2T14Q |
2.5P |
30.201 |
90 |
40 |
28 |
24 |
19 |
22 |
4 |
2 |
|
PT 1 -11 |
Ⅱ |
TH2T16U |
2.5P |
33.249 |
95 |
45 |
32 |
26 |
21 |
24 |
5 |
2 |
|
PT 1 1/8-11 |
Ⅱ |
TH2T18U |
2.5P |
37.897 |
100 |
45 |
32 |
28 |
21 |
24 |
5 |
2 |
|
PT 1 1/4-11 |
Ⅱ |
TH2T20U |
2.5P |
41.910 |
105 |
45 |
32 |
32 |
26 |
30 |
5 |
2 |
|
PT 1 3/8-11 |
Ⅱ |
TH2T22U |
2.5P |
44.323 |
110 |
45 |
32 |
35 |
26 |
30 |
6 |
2 |
|
PT 1 1/2-11 |
Ⅱ |
TH2T24U |
2.5P |
47.803 |
110 |
45 |
32 |
38 |
29 |
32 |
6 |
2 |
|
PT 1 3/4-11 |
Ⅱ |
TH2T28U |
2.5P |
53.746 |
115 |
45 |
32 |
42 |
32 |
35 |
6 |
2 |
|
PT 2 -11 |
Ⅱ |
TH2T32U |
2.5P |
59.614 |
120 |
50 |
35 |
46 |
35 |
38 |
6 |
2 |
|
PT 2 1/4-11 |
Ⅱ |
TH2T36U |
2.5P |
65.710 |
145 |
65 |
50 |
50 |
38 |
42 |
6 |
2 |
|
PT 2 1/2-11 |
Ⅱ |
TH2T40U |
2.5P |
75.184 |
145 |
65 |
50 |
55 |
41 |
44 |
8 |
2 |
|
PT 3 -11 |
Ⅱ |
TH2T48U |
2.5P |
87.884 |
155 |
65 |
52 |
65 |
50 |
52 |
8 |
2 |
|
PT 3 1/2-11 |
Ⅱ |
TH2T56U |
2.5P |
100.330 |
165 |
68 |
52 |
70 |
54 |
58 |
8 |
2 |
|
PT 4 -11 |
Ⅱ |
TH2T64U |
2.5P |
113.030 |
170 |
70 |
55 |
75 |
58 |
62 |
10 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|
