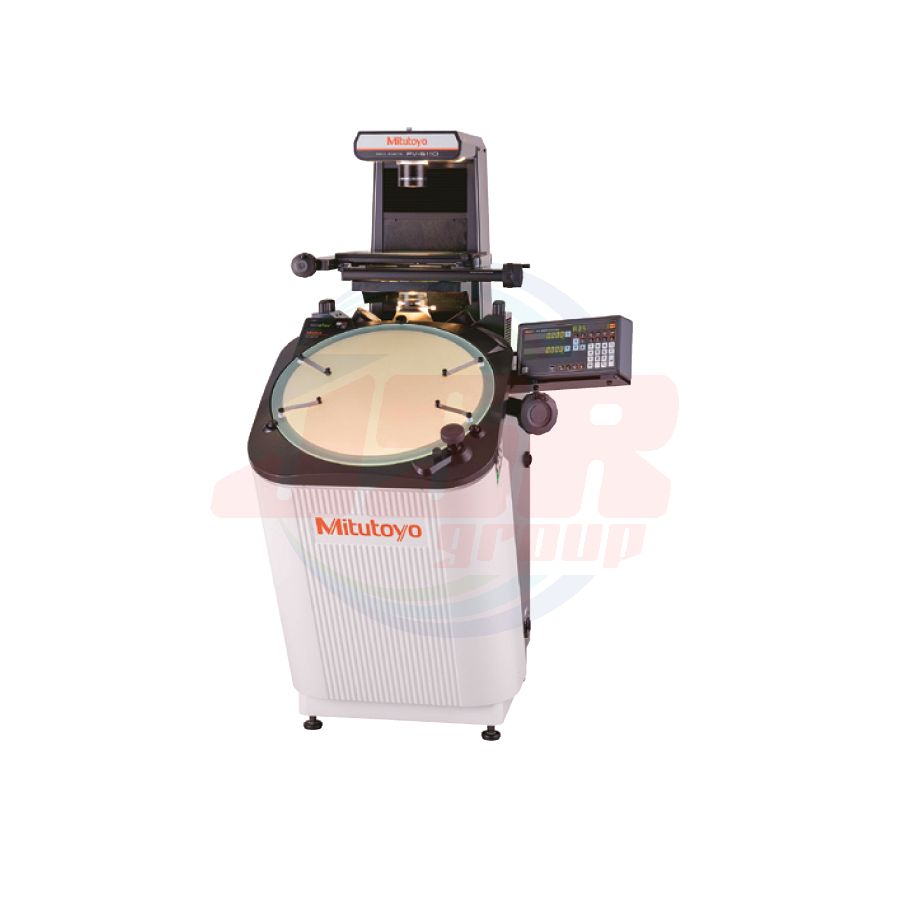

Equipped with a 500 mm forward-tilted screen. Perfect for comparative measurements with enlarged drawings and tracing of projected images. This model supports improvement in efficiency of mass-produced precision part inspections.
200×100 mm (164×68 mm) * ( ) The range where no shading is observed using a 5X projection lens.
Measuring Unit
Digital scale
Quick-release mechanism
X and Y axes
Stage size (WxD)
380×250 mm
Effective size of stage glass (WxD)
266×170 mm
Stage glass thickness
6 mm
Swivel adjustment range
±3 °
Maximum loading
8 kg

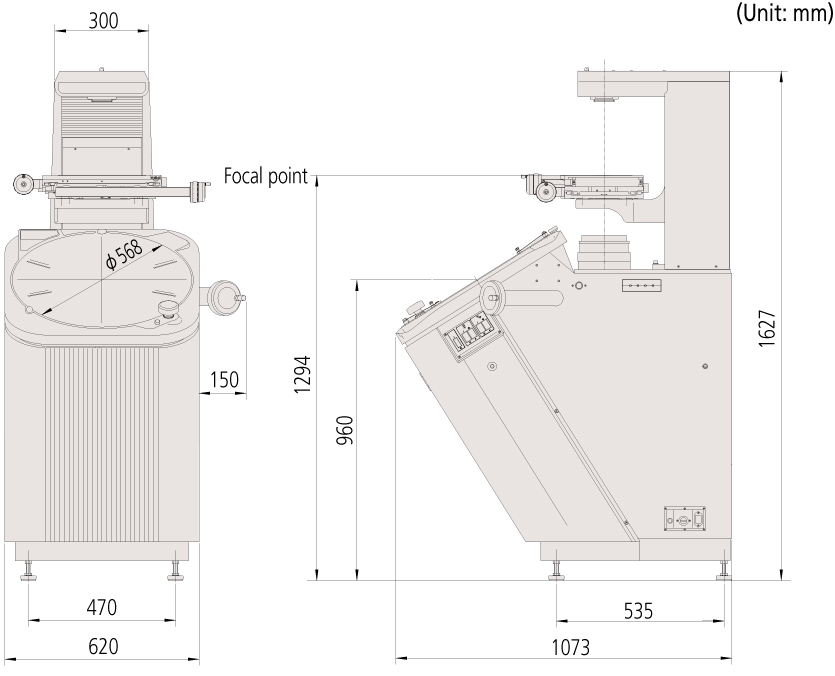

Technical Data
Projected image
Inverted
Protractor screen
Effective diameter
ø508 mm
Screen material
Fine-ground glass
Screen rotation
±360° (The counter displays up to ±370°)
Angle reading
Digital counter (ABS/INC mode switching), Zero Set
Resolution
1° or 0.01° (switchable)
Cross-hairs
90° solid lines
0 Line (Index)
Built-in, With a LED back light
Projection lens
Magnification
5X, 10X (Standard accessory), 20X, 50X, 100X
Lens mount
Insert type mount
Magnification accuracy*
Contour illumination
±0.1 % or less of nominal magnification
Surface illumination
±0.15 % or less of nominal magnification
Maximum workpiece height
Refer to the projection lenses (L1) right.
Contour illumination
24 V, 150 W, 500 h Halogen bulb (512305)
Mount switching system
Telecentric, Heat-absorbing filter
Cooling fan, 2-step (High/Low) brightness switch
Can be used in conjunction with color filter
Surface illumination
24 V, 150 W, 500 h Halogen bulb (512305)
Heat-absorbing filter, Adjustable condenser lens
Oblique illumination (for 5X, 10X and 20X)
Cooling fan, 2-step (High/Low) brightness switch
Focusing
Stage part drive
Manual
Power supply
100 V, 110 V, 120 V AC (304-919-11) 220 V, 230 V, 240 V AC (304-919-12) external switching
Mass
Approx. 210 kg (including X-Y stage)
Power consumption
Approx. 560 W
* Our magnification accuracy standard only checks contour illumination (that it is ±0.1 % or less). (If the magnification accuracy under contour illumination is a permissible value, that under surface illumination will also be guaranteed to be within ±0.15 % of our standard.)
Stages
XY range
200×100 mm (164×68 mm)*
PV-5110 main unit
304-919-11A
Measuring unit
Digital scale
Quick-release mechanism
X and Y axes
Stage size (WxD)
380×250 mm
Effective size of stage glass (WxD)
266×170 mm
Stage glass thickness
6 mm
Stage glass
382762
Swivel adjustment range
±3 °
Maximum loading
8 kg
* ( ) The range where no shading is observed using a 5X projection lens.
