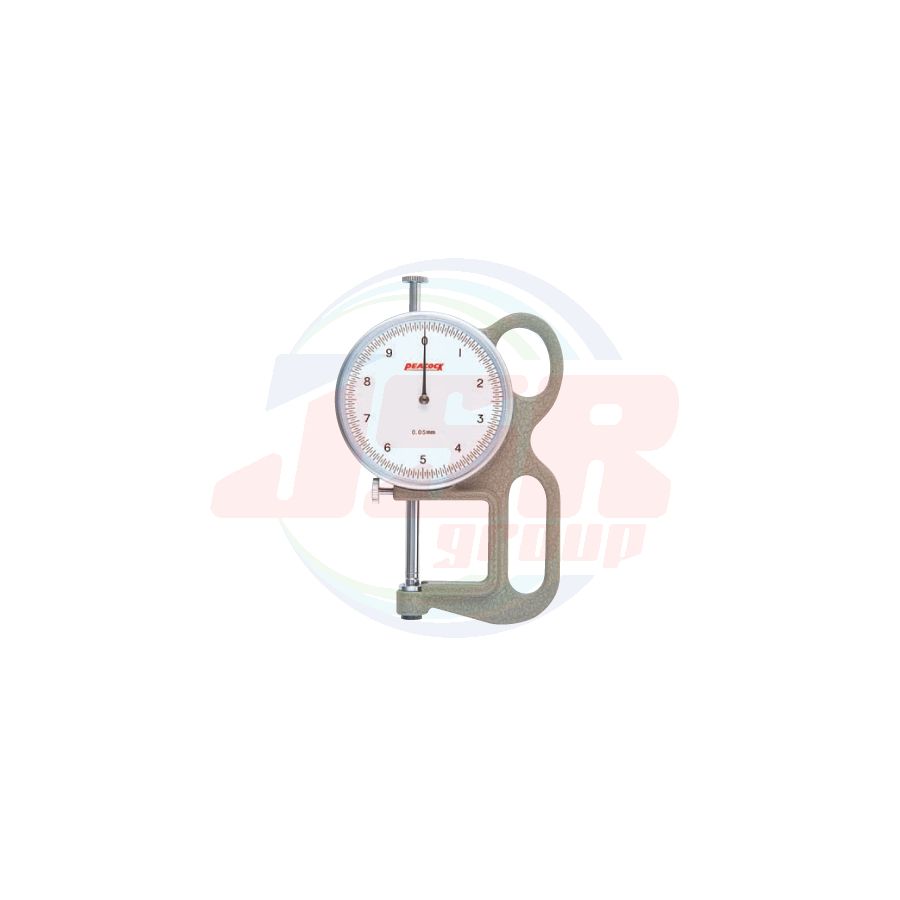

Dial Swift Gauge
The dial swift gauge is used for the same purpose as an ordinary micrometer to measure outside sizes.
● The spindle is always pulled upward by the force of the spring. The knob at the top of the gauge is pushed down by finger to clamp an object in measurement.
● It will show its power for measurement of thickness, heights and diameters.

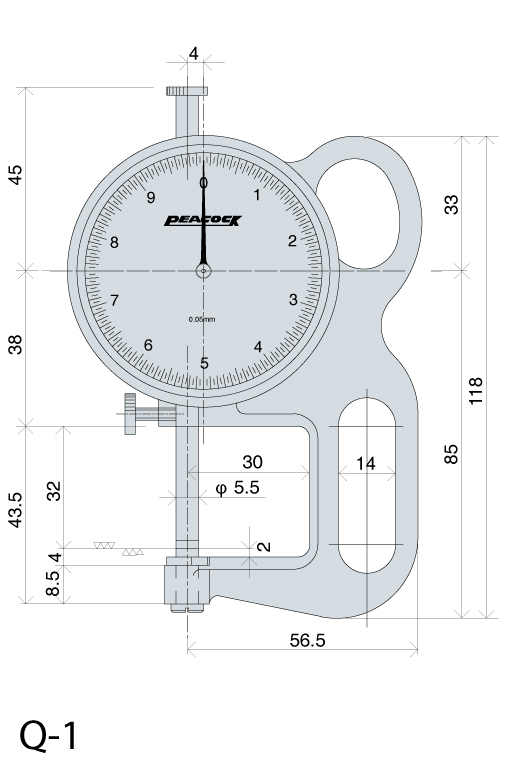

Specifications
| Order No. | Graduation (mm) |
Range (mm) |
Throat depth (mm) |
Accuracy (μm) |
Contact Point | |
| Dia (mm) | Parallelism (μm) | |||||
| Q-1 | 0.05 | 0～25 | 30 | ±100 | 5.5 | 10 |
| แบรนด์สินค้า | PEACOCK |
|---|---|
| Order No. | Q-1 |
| Graduation | 0.05mm |
| Range | 0~25mm |
