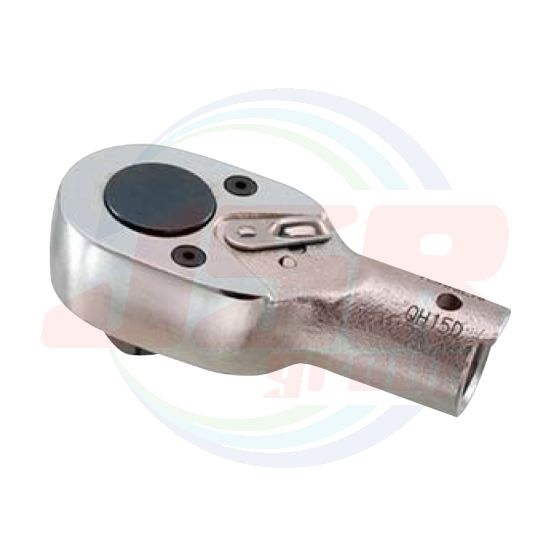

QH - Ratchet Head
As the QH type ratchet heads need only small swing for tightening, they suit for operations in narrow spaces.

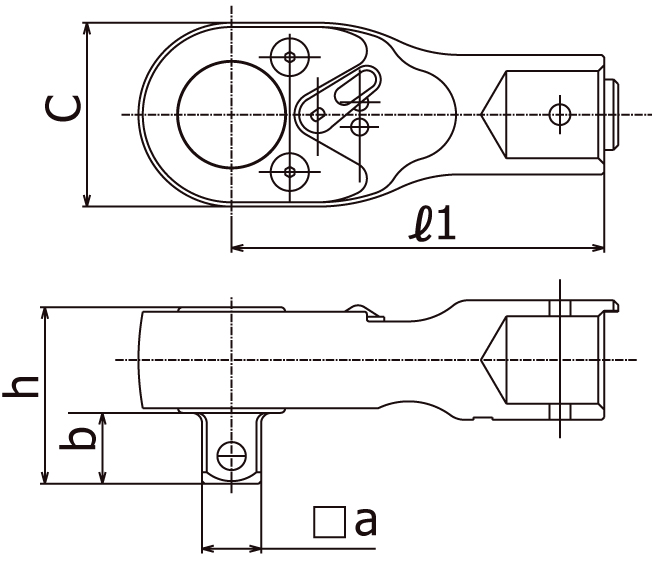

| Order No. | Head Size | Dimensions | |||
| Sq. Drive a [mm] | Outside Width c [mm] | h [mm] | b [mm] | ||
| QH8D | 8D | 6.35 | 23 | 17.5 | 7.5 |
| QH10D-1/4 | 10D | 26 | 18.5 | ||
| QH10D | 9.53 | 22 | 11 | ||
| QH12D | 12D | 32 | 25.6 | ||
| QH15D-3/8 | 15D | 37.5 | 30.5 | ||
| QH15D | 12.7 | 33.5 | 14 | ||
| QH19D | 19D | 40 | 38.4 | 15.4 | |
| QH22D-1/2 | 22D | 51 | 41.5 | 15.5 | |
| QH22D | 19.05 | 46.5 | 20.5 | ||
| QH27D | 27D | 70 | 49.7 | 21.5 | |
| QH32D | 32D | 25.4 | 74 | 55.7 | 26.5 |
Note : 1. For the model having 25.4mm square drive, use a through-hole sockket.
QH15D-3/8 Tmax 100N•m
QH22D-1/2 Tmax 280N•m
2. Ratchet protective cover is available
