QLK-LR LARGE HUB NUT TORQUE WRENCHES | KANON
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
KAN-QLK-LR
FEATURES
● Dual square drives for both clockwise and counterclockwise tightening.
● By replacing the sockets, various sizes of fasteners can be tightened within the tool’s capacity range.
● Tightening to a torque setting, can only be done in the direction of the arrow.
● Accuracy : ±3% of indicated value over the full range.
| Order No. (kgf•m) | Range | Increment |
Order No. (N•m) | Old Model (N•m) | Range | Increment |

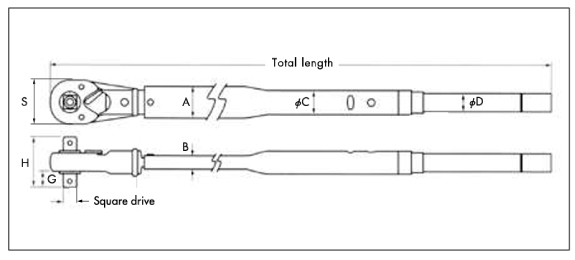

Square drive | Total length | Dimensions (mm) | Weight | Standard Accessory | ||||||
| Head | Body | ||||||||||||||||
| kgf•cm |
N•m |
mm | mm | S | G | H | A | B | ØC | ØD | kg | ||||||
| 7000QLK-LR | 10~70 | 0.5 | N700QLK-LR | N7000QLK-LR | 100~700 | 5 | 19.05 (3/4”) | 1,314 | 63 | 20 | 70 | 49 | 20 | 35.4 | 27.2 | 7.0 | Torque adjusting box wrench |
| 8500QLK-LR | 10~85 | 0.5 | N850QLK-LR | N8500QLK-LR | 100~850 | 5 | 25.4 (1”) |
1,388 | 76 | 27 | 85 | 54 | 23 | 42.7 | 31.8 | 8.5 | |
| 10000QLK-LR | 10~100 | 0.5 | N1000QLK-LR | N10000QLK-LR | 100~1000 | 5 | 1,538 | 8.8 | |||||||||
| แบรนด์สินค้า | KANON |
|---|
