QS-L/AFC - Manual Stage Vision Measuring System | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
QS-L/AFC
Manual Stage Vision Measuring System
QS-L/AFC
A vision measuring system with a color camera with high-precision, high-speed auto focus.
Measuring accuracy (X Y): (2.2 + 0.02L) μm
(L: Measuring length in mm)
SPECIFICATIONS
| Model |
QS-L2010Z/AFC | QS-L3017Z/AFC | QS-L4020Z/AFC | |
| Drive method | X/Y axes: Manual Z axis: CNC with Auto focus | |||
| Measuring volume | 200×100×150 mm | 300×170×150 mm | 400×200×150 mm | |
| Resolution / Scale type | 0.1 μm / Linear encoder | |||
| Accuracy*¹*² | X axis, Y axis | (2.2+0.02L) μm | ||
| Z axis | (4.5+0.006L) μm | |||
| Accuracy guaranteed temperature range | 20±1 ºC | |||
| Observation unit*³ | 7x zoom (8 steps) interchangeable objective lenses (1x objective 0.5x - 3.5x; 1.5x objective 0.75x - 5.25x; 2x objective 1x - 7x) |
|||
| Image sensor | 3 Megapixel, CMOS color camera | |||
| Illumination | Transmitted light | white LED | ||
| Co-axial light | white LED | |||
| Ring light | 4-quadrant ring light (LED) | |||

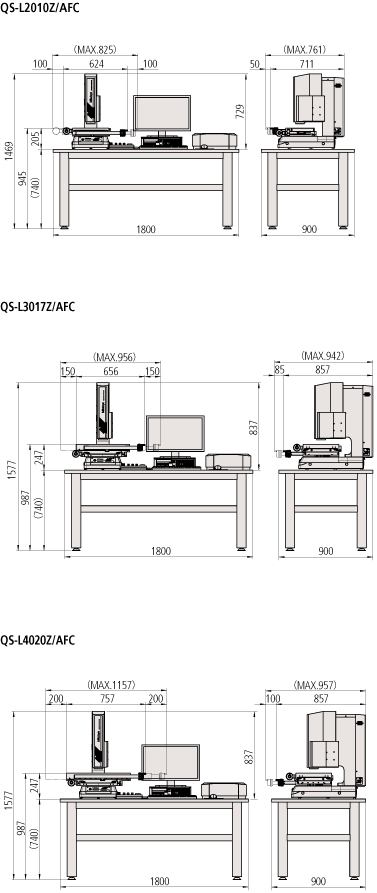

| Dimensions (main unit, WxDxH) | 624×711×729 mm | 692×857×837 mm | 757×867×837 mm | |
| Stage glass size | 250×150 mm | 370×240 mm | 450×240 mm | |
| Maximum stage loading | 10 kg | 20 kg | 15 kg | |
| Mass (main unit) | 70 kg | 160 kg | 167 kg | |
*1: Inspected to Mitutoyo standard. L = measuring length (mm)
*2: 3x lens magnification or greater
*3: 1x and 2x objective lenses are optional
