QSP - RATCHET HEAD TYPE PRESET TORQUE WRENCH | TOHNICHI
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TOH-QSP
ASSEMBLY | PRESET | RATCHET HEAD | ISO6789.2003, 2017
● No external scale, torque set by a torque wrench tester
● Ideal for mass production application
| Order No. | Torque Range | Overall Length [mm] | Square Drive [mm] | Weight kg | ||
| [N•m] | [kgf•cm/kgf•m] | [lbf•in] | ||||
| Min.-Max. | Min.-Max. | Min.-Max. | ||||
| kgf•cm | ||||||
| QSP1.5N4 | 0.3-1.5 | 3-15 | 2.7-13.2 | 165 | 6.35 | 0.16 |
| QSP3N4 | 0.6-3 | 6-30 | 5.3-26.5 | 165 | 6.35 | 0.16 |
| QSP6N4 | 1-6 | 10-60 | 8.9-53.0 | 165 | 6.35 | 0.19 |
| QSP12N4 | 2-12 | 20-120 | 17.7-106 | 175 | 6.35 | 0.25 |
| QSP25N3-1/4 | 5-25 | 50-250 | 45-221 | 215 | 6.35 | 0.25 |
| QSP25N3 | 5-25 | 50-250 | 45-221 | 215 | 9.53 | 0.25 |
| QSP50N3 | 10-50 | 100-500 | 89-442 | 240 | 9.53 | 0.4 |
| QSP100N4-3/8 | 20-100 | 200-1000 | 177-885 | 315 | 9.53 | 0.65 |

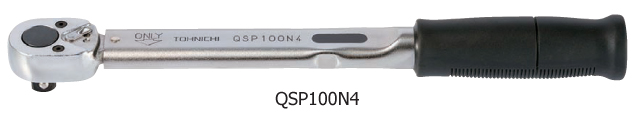

| QSP100N4 | 20-100 | 200-1000 | 177-885 | 315 | 12.7 | 0.65 |
| QSP140N3 | 30-140 | 300-1400 | 266-1238 | 380 | 12.7 | 0.7 |
| QSP200N4 | 40-200 | 400-2000 | 354-1769 | 465 | 12.7 | 1.2 |
| kgf•m | ||||||
| QSP280N3-1/2 | 40-280 | 4-28 | 354-2477 | 665 | 12.7 | 1.8 |
| QSP280N3 | 40-280 | 4-28 | 354-2477 | 665 | 19.05 | 1.8 |
| QSP420N | 60-420 | 6-42 | 531-3716 | 970 | 19.05 | 3.1 |
Note. 1. Adjusting tools are sold separately.
2. A torque wrench tester is necessary for torque setting. Specify required set when you order. EX. QSP100N4 x 80N•m
3. QSP200N4-QSP420N have knurled handles.
4. QSP1.5N4 and QSP3N4 are issued ISO:6789-2003 certificate when request initial torque setting
■ QSP3/QSP-MH
Optional Accessories
931 | 930
314
Adjusting Tool
| Part # | Applicable Model Dimension [mm] |
| 931 | QSP1.5N4-12N4, QSP25N3/-MH |
| 930 |
QSP50N3/-MH ~ 280N3/-MH QSP100N4/-MH, 200N4/-MH |
| 314 | QSP420N |

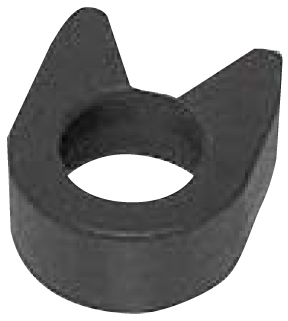

Protection Cover for Ratchet Heads
| Part # | Applicable Model |
| 870 | QSP1.5N4 - 12N4 |
| 871 | QSP25N3(-MH) |
| 872 | QSP50N3(-MH) |
| 873 | QSP100N4(-MH) |
| 874 | QSP140N3(-MH) |
| 875 | QSP200N4 |
| 877 | QSP280N3 |
| 878 | QSP420N |
| แบรนด์สินค้า | TOHNICHI |
|---|
