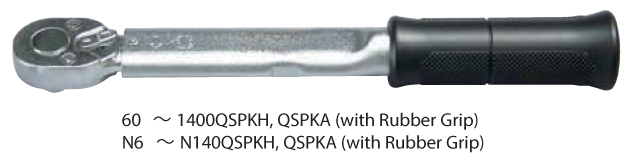

QSPKA PRE-SET, RATCHET TORQUE WRENCHES WITH RUBBER GRIP | KANON
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
KAN-QSPKA
FEATURES
● The ratchet drive enables quickly tightening fasteners to the preset torque. Suitable for repetitive jobs.
● The wrench’s inner mechanism automatically resets itself for the next job after disenganging froma tightened joint.
● Accuracy : ±3% of pre-set value.

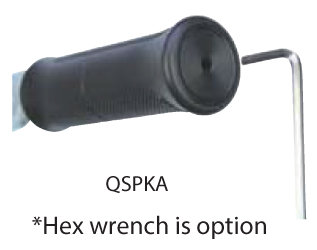

■ A-type : Adjusted setting torque value by hex wrench.
| Order No. (kgf•cm) | Range | Old Model (N•m) | Order No. (N•m) | Range | Spanner sizes (W) | Total length | Dimensions (mm) | Weight | |||||
| Head | Body | ||||||||||||
| kgf•cm | N•m | mm | mm | H | G | R | A | B | C | kg | |||
| 60QSPKA | 20~60 | N60QSPK-A | N6QSPKA | 2~6 | 6.35 (1/4”) | 174 | 19.5 | 7.5 | 12.5 | 18.2 | 9.6 | 26.5 | 0.19 |
| 120QSPKA | 40~20 | N120QSPK-A | N12QSPKA | 4~12 | |||||||||
| 250QSPKA | 50~50 | N250QSPK-A | N25QSPKA | 5~25 | 9.53 (3/8”) | 220 | 25 | 12 | 16 | 0.27 | |||
| 500QSPKA | 100~500 | N500QSPK-A | N50QSPKA | 10~50 | 240 | 25 | 11.4 | 32.7 | 0.41 | ||||
| 1000QSPKA | 200~1000 | N1000QSPK-A | N100QSPKA | 20~100 | 12.7 (1/2”) | 340 | 31 | 14 | 19.7 | 27.5 | 12.4 | 37 | 0.69 |
| 1400QSPKA | 400~1400 | N1400QSPK-A | N140QSPKA | 40~140 | 380 | 0.75 | |||||||
Note : Use a KANON torque wrench analyzer when adjusting torque. Without the analyzer, torque cannot be adjusted
| แบรนด์สินค้า | KANON |
|---|
