QUICK IMAGE Series - 2D Color Vision Measuring System | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
QI

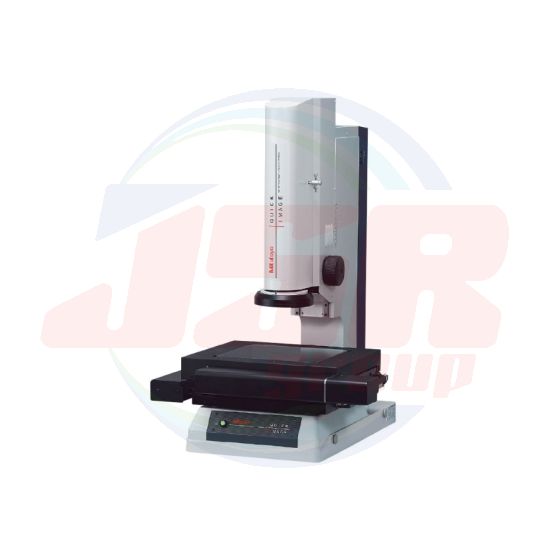

2D Color Vision Measuring System
QI
A 2D vision measuring system that has an optical system with deep depth of focus and a screen providing a wide field of view, enabling highly efficient measurements.
E 1XY: ± (3.5 + 0.02L) μm
(L: Measuring length in mm)
SPECIFICATIONS

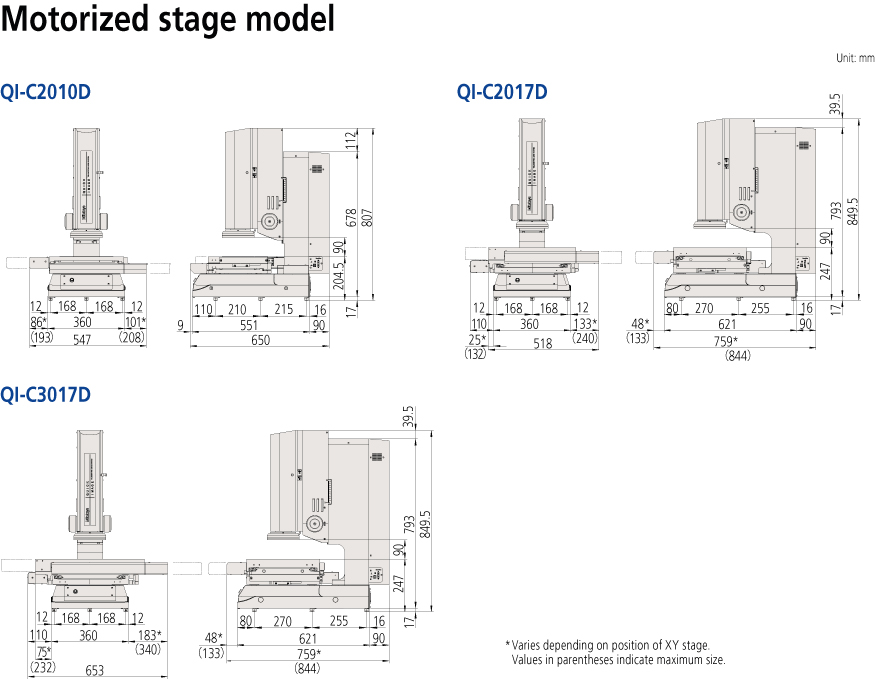

| Manual stage model | Motorized stage model | ||||||||
| Model | 0.2 X type | QI-A1010D | QI-A2010D | QI-A2017D | QI-A3017D | QI-A4020D | QI-C2010D | QI-C2017D | QI-C3017D |
| Measuring range (X×Y) | 100×100 mm | 200×100 mm | 200×170 mm | 300×170 mm | 400×200 mm | 200×100 mm | 200×170 mm | 300×170 mm | |
| Effective stage glass size | 170×170 mm | 242×140 mm | 260×230 mm | 360×230 mm | 440×232 mm | 242×140 mm | 260×230 mm | 360×230 mm | |
| Maximum stage loading *¹ | Approx. 10 kg | Approx. 20 kg | Approx. 15 kg | Approx. 10 kg | Approx. 20 kg | ||||
| Main unit mass | Approx. 65 kg | Approx. 69 kg | Approx. 150 kg | Approx. 158 kg | Approx. 164 kg | Approx. 72 kg | Approx. 153 kg | Approx. 161 kg | |
*1 Does not include extremely offset or concentrated loads
| QI-A / QI-C | |||
| View field | 32×24 mm | ||
| Measurement mode | High resolution mode / Normal mode *4 | ||
| Travel range (Z axis) | 100 mm | ||
| Accuracy | Measurement accuracy within the screen *¹ |
High resolution mode | ±2 µm |
| Normal mode | ±4 µm | ||
| Repeatability within the screen (±2σ) *² |
High resolution mode | ±1 µm | |
| Normal mode | ±2 µm | ||
| Measurement accuracy (E1xy) *¹ | ±(3.5+0.02) µm L: arbitrary measuring length (mm) | ||
| Monitor magnification *³ | 8.0X | ||
| Optical system | Magnification (Telecentric Optical System) | 0.2X | |
| Depth of focus | High resolution mode | ±0.6 mm | |
| Normal mode | ±11 mm | ||
| Working distance | 90 mm | ||
| Camera | 3 million pixels, 1/2", full color | ||
| Illumination | Transmitted light: Green LED telecentric illumination Co-axial light: White LED Ring light: 4-quadrant white LED |
||
| Power supply | AC100 - 240 V 50/60 Hz | ||
| Mass (main Accuracy guaranteed temperature range) | 20±1 ºC | ||
*1 Inspected to Mitutoyo standards by focus point position.
*2 The measuring accuracy is guaranteed to be accurate within the depth of focus.
*3 For 1X digital zoom (when using the 24-inch-wide monitor)
*4 Patent registered (Japan)
| แบรนด์สินค้า | MITUTOYO |
|---|
