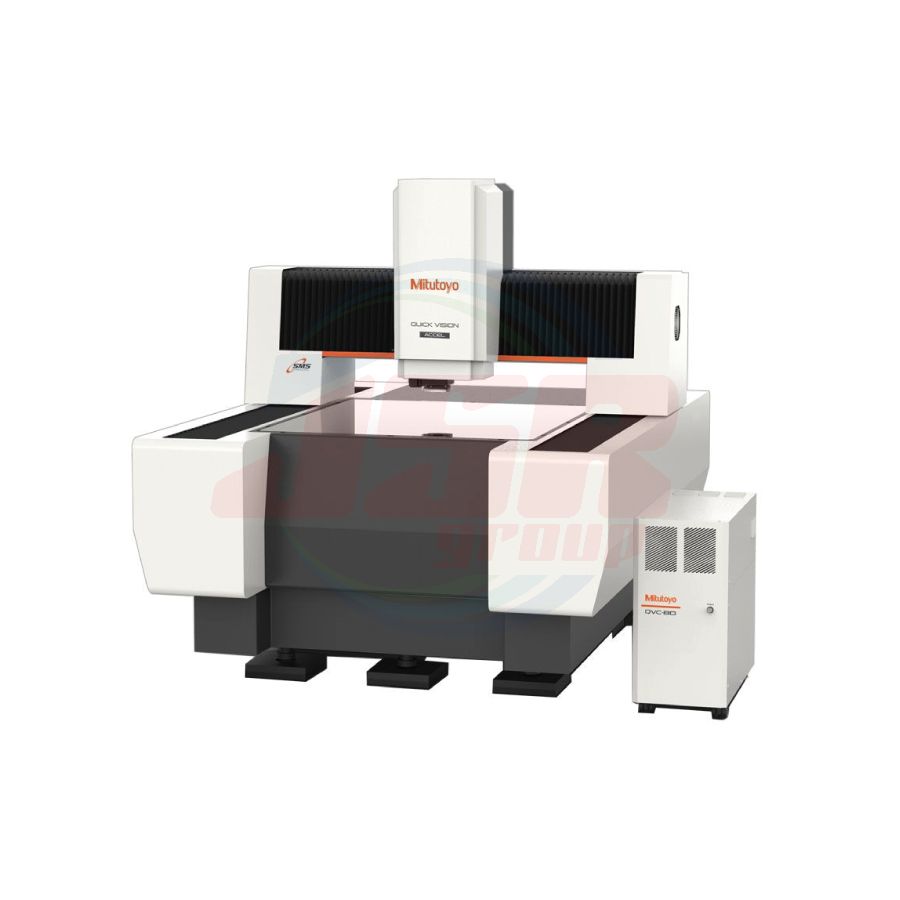

QV ACCEL
Large CNC Vision Measuring System
• Vision measuring machine with moving-bridge type main unit structure suitable for measuring large objects.
• As the stage is fixed on the moving-bridge structure, you can use a simple method to fixture a workpiece, which is suitable for measuring small, thin objects.
• QV ACCEL 1212 (range: 1250×1250×100 mm) and QV ACCEL 1517 (range: 1500×1750×100 mm) are available to special order.
SPECIFICATIONS
| Model Name. |
QV ACCEL 808 | QV ACCEL 1010 | ||
| Model |
QV-A808P1L-D | QV-A1010P1L-D | ||
| Measuring range [mm] | 800×800×150 | 1000×1000×150 | ||
| Observation unit*¹ | Programmable power turret 1x, 2x, 6x, (12x)*² | |||
| Illumination unit | Contour illumination | White LED | ||
| Surface illumination | White LED | |||
| PRL | White LED | |||
| Resolution of scale [μm] | 0.1 | |||
| Vision measuring accuracy [μm]*² |
E1X, E1Y | (1.5 + 3L/1000) | ||
| E1Z | (1.5 + 4L/1000) | |||
| E2XY | (2.5 + 4L/1000) | |||
| Air supplyRepeatability [μm]*² | Short dimension | X, Y axis | 3σ≤0.2 | |
| Long dimension | 3σ≤0.7 | |||
*1 Programmable power turret 1x, 2x, 4x model and 1x, 2x, 4x, 6x model are available as special order.
*2 Determined by Mitutoyo's inspection method. Short dimension＝Repeatability within a single screen; Long dimension＝Repeatability over several screen movements.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Model name | QV ACCEL 1010 |
| Model | QV-A1010P1L-D |
