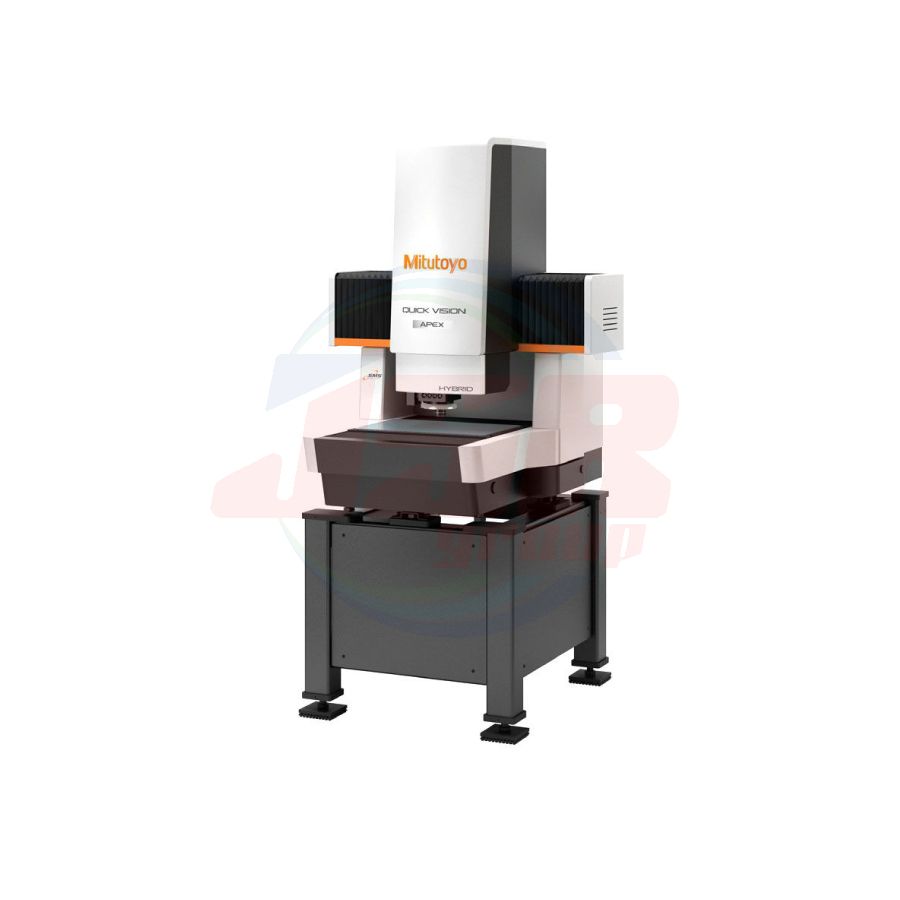

Standard CNC Vision Measuring System
• This is a superior model of QUICK VISION, which is equipped with the StrobeSnap function as standard, enabling high-speed measurement.
• We offer a model with tracking auto focus (TAF) that quickly focuses on the object improving throughput significantly.
• The camera motion and the strobe light are synchronized to make non-stop vision measurements without stopping the stage. This makes it possible to use STREAM to shorten measuring time dramatically.
SPECIFICATIONS
| Model No. | QV APEX 302 Pro | QV APEX 404 Pro | QV APEX 606 Pro | ||||||||||
| Model | QV-X302P1L-E | QV-X302T1L-E | QV-X302P1C-E | QV-X302T1C-E | QV-X404P1L-E | QV-X404T1L-E | QV-X404P1C-E | QV-X404T1C-E | QV-X606P1L-E | QV-X606T1L-E | QV-X606P1C-E | QV-X606T1C-E | |
| Measuring range [mm] | 300×200×200 | 400×400×250 | 600×650×250 | ||||||||||
| Observation unit*¹ | Programmable power turret 1x, 2x, 6x, (12x)*² | ||||||||||||
| Tracking Auto Focus device | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | |
| Illumination Unit | Contour illumination | White LED | |||||||||||
| Surface illumination | White LED | Color LED | White LED | Color LED | White LED | Color LED | |||||||
| PRL | White LED | Color LED | White LED | Color LED | White LED | Color LED | |||||||
| Resolution of scale [μm] | 0.1 | ||||||||||||
| Vision measuring accuracy [μm] |
E UX/E UY, MPE | (1.5 + 3L/1000) | |||||||||||
| E UXY, MPE | (2.0 + 4L/1000) | ||||||||||||
| E UZ, MPE | (1.5 + 4L/1000) | ||||||||||||
| LAF Repeatability [μm] | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | |
| Temperature compensation function | Manual | ||||||||||||
*1 Programmable power turret 1x, 2x, 4x, 6x model is available as special order. Digital magnification function allows 8x and 12x in addition to 1x, 2x, 4x, 6x. 6 steps of magnification are available in total.
*2 The value in parenthesis is for digital magnification change.
