QVH1 Pro

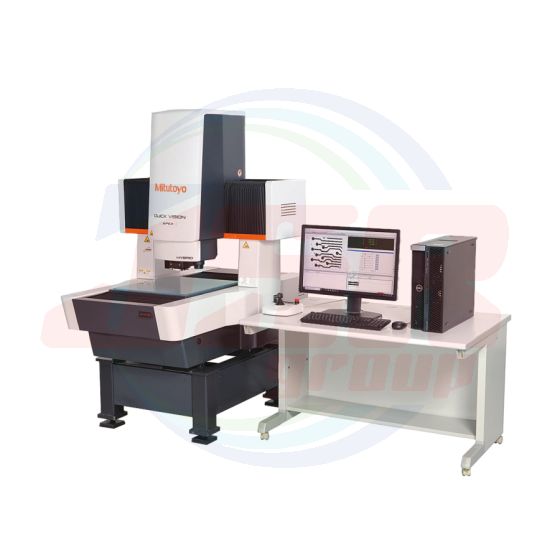

Non-contact Displacement Sensor-equipped CNC Vision Measuring System Measuring System
• This dual system with a non-contact displacement sensor has a scanning function that enables measurement of minute height differences and 3D shapes.
• The double-pinhole technique is used as the detection method of the displacement sensor. It is less directional compared with the knife-edge and triangulation techniques.
• The small laser spot with diameter of about 2 μm makes it possible to measure minute shapes.
SPECIFICATIONS
| Model Name. | QVH1 APEX 302 Pro | QVH1 APEX 404 Pro | QVH1 APEX 606 Pro | QVH1 HYPER 302 Pro | QVH1 HYPER404 Pro | QVH1 HYPER 606 Pro | |
| Model | QVH1-X302P1L-E | QVH1-X404P1L-E | QVH1-X606P1L-E | QVH1-H302P1L-E | QVH1-H404P1L-E | QVH1-H606P1L-E | |
| Measuring range [mm] | Vision | 300×200×200 | 400×400×250 | 600×650×250 | 300×200×200 | 400×400×250 | 600×650×250 |
| Common to vision displacement sensor |
180×200×200 | 280×400×250 | 480×650×250 | 180×200×200 | 280×400×250 | 480×650×250 | |
| Observation unit*¹ | Programmable power turret 1x, 2x, 6x, (12x)*² | ||||||
| Illumination Unit | Contour illumination | White LED | |||||
| Surface illumination | White LED | ||||||
| PRL | White LED | ||||||
| Resolution of scale [μm] | 0.1 | 0.02 | |||||
| Vision measuring accuracy [μm] |
EUX/EUY, MPE | (1.5 + 3L/1000) | (0.8 + 2L/1000) | ||||
| EUXY, MPE | (2.0 + 4L/1000) | (1.4 + 3L/1000) | |||||
| EUZ, MPE | (1.5 + 4L/1000) | (1.5 + 2L/1000) | |||||
| Displacement sensor measuring accuracy [μm]*³ | E1Z | (1.5 + 4L/1000) | (1.5 + 2L/1000) | ||||
| Temperature compensation function | Manual | Automatic | |||||
*1 Programmable power turret 1x, 2x, 4x, 6x model is available as special order. Digital magnification function allows 8x and 12x in addition to 1x, 2x, 4x, 6x. 6 steps of magnification are available in total.
*2 The value in parenthesis is for digital magnification change. *3 Determined by Mitutoyo's inspection method.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Model name | QVH1 HYPER404 Pro |
| Model | QVH1-H404P1L-E |
