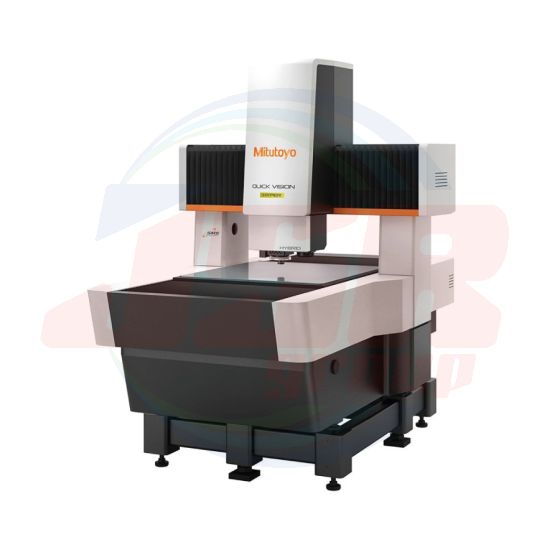

Non-contact Displacement Sensor-equipped CNC Vision Measuring System
• This dual system with a non-contact displacement sensor has a scanning function that enables measurement of minute height differences and 3D shapes.
• The non-contact displacement sensor (CPS probe) uses the wavelength confocal method.
• The LED used as the light source of the displacement sensor has an auto-brightness control function that enables seamless measurement of materials with different reflectivity.
SPECIFICATIONS
| Model Name. | QVH4 APEX 302 Pro | QVH4 APEX 404 Pro | QVH4 APEX 606 Pro | |
| Model | QVH4A-X302P1L-E | QVH4A-X404P1L-E | QVH4A-X606P1L-E | |
| Measuring range [mm] | Vision | 300×200×200 | 400×400×250 | 600×650×250 |
| Common to vision non-contact displacement sensor | 176×200×200 | 276×400×250 | 476×650×250 | |
| Observation unit*¹ | Programmable power turret 1x, 2x, 6x, (12x)*² | |||
| Illumination Unit | Contour illumination | White LED | ||
| Surface illumination | White LED | |||
| PRL | White LED | |||
| Resolution of scale [μm] | 0.1 | |||
| Vision measuring accuracy [μm] |
EUX/EUY, MPE | (1.5 + 3L/1000) | ||
| EUXY, MPE | (2.0 + 4L/1000) | |||
| EUZ, MPE | (1.5 + 4L/1000) | |||
| Displacement sensor measuring accuracy [μm]*³ | E1Z | (1.5 + 4L/1000) | ||
| Temperature compensation function | Manual | |||
| Model Name. | QVH4 HYPER 302 Pro | QVH4 HYPER 404 Pro | QVH4 HYPER 606 Pro | |
| Model | QVH4A-H302P1L-E | QVH4A-H404P1L-E | QVH4A-H606P1L-E | |
| Measuring range [mm] | Vision | 300×200×200 | 400×400×250 | 600×650×250 |
| Common to vision non-contact displacement sensor | 176×200×200 | 276×400×250 | 476×650×250 | |
| Observation unit*¹ | Programmable power turret 1x, 2x, 6x, (12x)*² | |||
| Illumination Unit | Contour illumination | White LED | ||
| Surface illumination | White LED | |||
| PRL | White LED | |||
| Resolution of scale [μm] | 0.02 | |||
| Vision measuring accuracy [μm] |
EUX/EUY, MPE | (0.8 + 2L/1000) | ||
| EUXY, MPE | (1.4 + 3L/1000) | |||
| EUZ, MPE | (1.5 + 2L/1000) | |||
| Displacement sensor measuring accuracy [μm]*³ | E1Z | (1.5 + 2L/1000) | ||
| Temperature compensation function | Automatic | |||
*1 Programmable power turret 1x, 2x, 4x, 6x model is available as special order. Digital magnification function allows 8x and 12x in addition to 1x, 2x, 4x, 6x. 6 steps of magnification are available in total.
*2 The value in parenthesis is for digital magnification change.
*3 Determined by Mitutoyo's inspection method.
