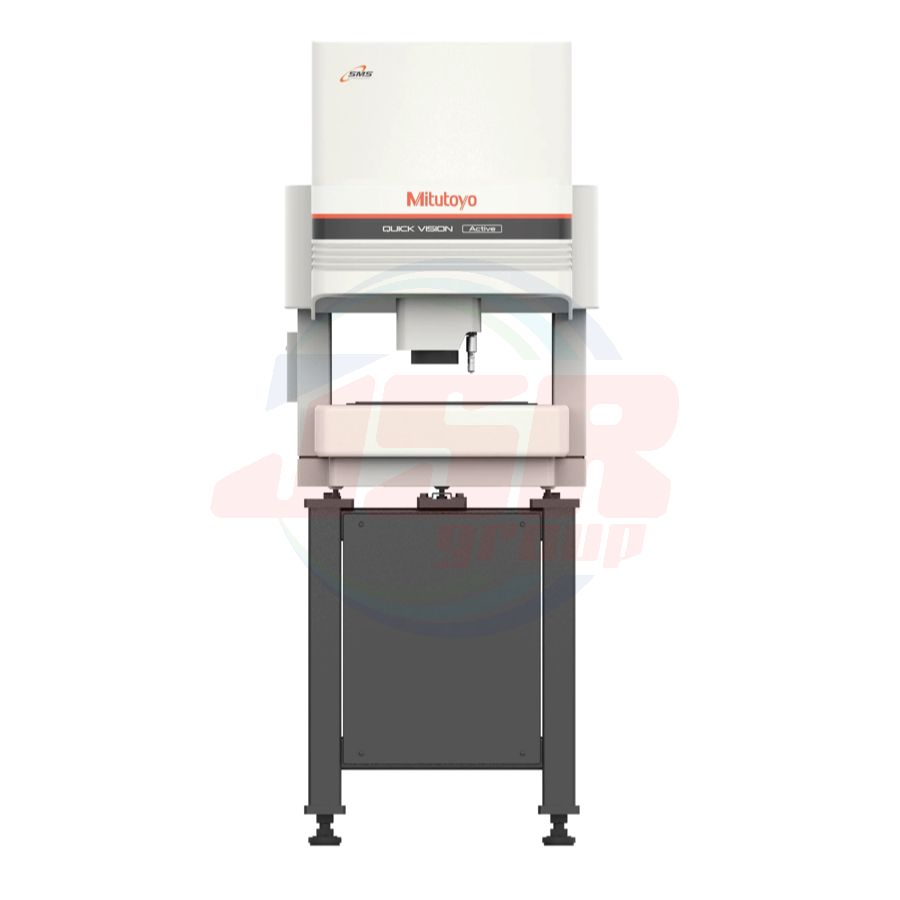

QVT1-L202Z1L-D | CNC Vision Measuring System Equipped with a Touch-trigger Probe | MITUTOYO
THB 0.00
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
QVT1-L202Z1L-D
QTY:
0
SPECIFICATIONS
| Model No. | QUICK VISION Active 202 | QUICK VISION Active 404 | |
| Model | QVT1-L202Z1L-D | QVT1-L404Z1L-D | |
| Type | Touch-probe equipped model | Touch-probe equipped model | |
| Measuring range (X×Y×Z) | 250×200×150 mm (250×200×118 mm: when 1X objective lens is used) |
400×400×200 mm (400×400×168 mm: when 1X objective lens is used) |
|
| Resolution | 0.1 μm | ||
| Scale type | Linear encoder | ||
| Observation unit | Zoom unit (8 positions) | ||
| Imaging device | Color CMOS camera | ||
| Illumination Unit | Co-axial Light | White LED | |
| Transmitted Light | White LED | ||
| PRL | 4-quadrant fixed white LED | ||
| Accuracy*¹ | E1X, E1Y | (2 + 3L /1000) μm | |
| E1Z | (3 + 5L /1000) μm | ||
| E2 | (2.5 + 4L /1000) μm | ||
| Accuracy guaranteed with optics specified | Objective: 1.5X, Optical magnification: 5.25X | ||
| Touch-trigger probe measuring accuracy*¹ |
E1X, E1Y, E1Z | (2.4 + 3L /1000) μm | (2.4 + 3L /1000) μm |
| Accuracy guaranteed temperature range | 18 to 23 °C | 18 to 23 °C | |
| Size of stage glass | 311×269 mm | 466×480 mm | |
| Maximum stage loading*² | 10 kg | 20 kg | |
| Dimensions | 570×767×1468 mm | 776×1303×1529 mm | |
| Mass (including machine stand) | 155 kg | 324 kg | |
| Temperature compensation function | Manual | Manual | |
*1 Inspected to a Mitutoyo standard. L=length between two arbitrary points (mm)
*2 Does not apply for unbalanced or concentrated loads.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Model name | QUICK VISION Active 202 |
| Type | Touch-probe equipped model |
| Model | QVT1-L202Z1L-D |
