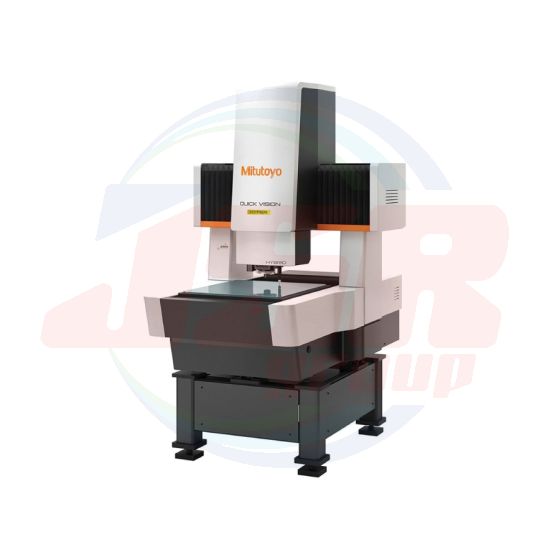

CNC Vision Measuring System Equipped with a Touch Trigger Probe
• Non-contact measurement and contact measurement can be done solely by one unit. QVTP Pro can perform contact measurement by using the vision measuring function and the touch trigger probe.
• Three-dimensional workpiece measurements can be performed. Enables 3D measurement of workpieces such as press-molded products, plastic-molded products, and cut products, which until now could not be measured with image processing alone.
• Using the probe module change rack allows switching between vision measurement and touch trigger probe Model QV APEX 302 Pro QV APEX 404 Pro QV APEX 606 Pro measurement during an automatic measuring sequence.
SPECIFICATIONS
| Model Name. | QVTP APEX 302 Pro | QVTP APEX 404 Pro | QVTP APEX 606 Pro | ||||||||||
| Model | QVT1-X302P1L-E | QVT1-X302T1L-E | QVT1-X302P1C-E | QVT1-X302T1C-E | QVT1-X404P1L-E | QVT1-X404T1L-E | QVT1-X404P1C-E | QVT1-X404T1C-E | QVT1-X606P1L-E | QVT1-X606T1L-E | QVT1-X606P1C-E | QVT1-X606T1C-E | |
| Measuring range [mm] | Vision | 300×200×200 | 400×400×250 | 600×650×250 | |||||||||
| Common to vision touch probe |
234×200×200 | 334×400×250 | 534×650×250 | ||||||||||
| Observation unit*¹ | Programmable power turret 1x, 2x, 6x, (12x)*² | ||||||||||||
| Tracking Auto Focus device | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | |
| Illumination Unit | Contour illumination | White LED | |||||||||||
| Surface illumination | White LED | Color LED | White LED | Color LED | White LED | Color LED | |||||||
| PRL | White LED | Color LED | White LED | Color LED | White LED | Color LED | |||||||
| Resolution of scale [μm] | 0.1 | ||||||||||||
| Vision measuring accuracy [μm] |
EUX/EUY, MPE | (1.5 + 3L/1000) | |||||||||||
| EUXY, MPE | (2.0 + 4L/1000) | ||||||||||||
| EUZ, MPE | (1.5 + 4L/1000) | ||||||||||||
| TP measuring accuracy [μm] |
E X, MPE / EY, MPE / EZ, MPE |
(1.8 + 3L/1000) | |||||||||||
| LAF Repeatability [μm] | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | |
| Temperature compensation function | Manual | ||||||||||||
| Model Name. | QVTP HYPER 302 Pro | QVTP HYPER 404 Pro | QVTP HYPER 606 Pro | ||||||||||
| Model | QVT1-H302P1L-E | QVT1-H302T1L-E | QVT1-H302P1C-E | QVT1-H302T1C-E | QVT1-H404P1L-E | QVT1-H404T1L-E | QVT1-H404P1C-E | QVT1-H404T1C-E | QVT1-H606P1L-E | QVT1-H606T1L-E | QVT1-H606P1C-E | QVT1-H606T1C-E | |
| Measuring range [mm] | Vision | 300×200×200 | 400×400×250 | 600×650×250 | |||||||||
| Common to vision touch probe |
234×200×200 | 334×400×250 | 534×650×250 | ||||||||||
| Observation unit*¹ | Programmable power turret 1x, 2x, 6x, (12x)*² | ||||||||||||
| Tracking Auto Focus device | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | ̶ | √ | |
| Illumination Unit | Contour illumination | White LED | |||||||||||
| Surface illumination | White LED | Color LED | White LED | Color LED | White LED | Color LED | |||||||
| PRL | White LED | Color LED | White LED | Color LED | White LED | Color LED | |||||||
| Resolution of scale [μm] | 0.02 | ||||||||||||
| Vision measuring accuracy [μm] |
EUX/EUY, MPE | (0.8 + 2L/1000) | |||||||||||
| EUXY, MPE | (1.4 + 3L/1000) | ||||||||||||
| EUZ, MPE | (1.5 + 2L/1000) | ||||||||||||
| TP measuring accuracy [μm] |
E X, MPE / EY, MPE / EZ, MPE |
(1.7 + 3L/1000) | |||||||||||
| LAF Repeatability [μm] | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | ̶ | σ≤0.8 | |
| Temperature compensation function | Automatic | ||||||||||||
*1 Programmable power turret 1x, 2x, 4x, 6x model is available as special order. Digital magnification function allows 8x and 12x in addition to 1x, 2x, 4x, 6x. 6 steps of magnification are available in total.
*2 The value in parenthesis is for digital magnification change.
The other specifications are the same as those of QVTP APEX Pro.
