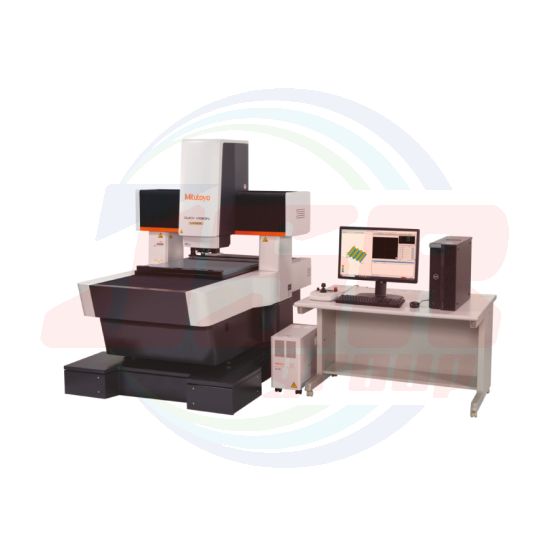

Non-contact 3D Measuring System
• QVWLI Pro is a high-accuracy dual 3D measurement system consisting of QV and a white light interferometer.

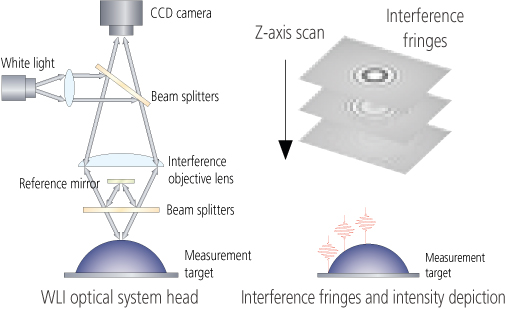

• You can perform 3D surface texture analysis and 3D roughness analysis from 3D data captured by the WLI optical system.
You can also perform dimension measurement and cross-section measurement at a specific height using the 3D data.
SPECIFICATIONS
| Model Name. |
QVWLI HYPER 404 Pro | QVWLI HYPER 606 Pro | ||
| Model |
QVW-H404P1L-E | QVW-H606P1L-E | ||
| Measuring range (X×Y×Z) [mm] | 400×400×240 | 600×650×220 | ||
| Measuring range common to vision and WLI (X×Y×Z) [mm] |
315×400×240 | 515×650×220 | ||
| External dimensions (W×D×H) (Including vibration isolator) [mm] |

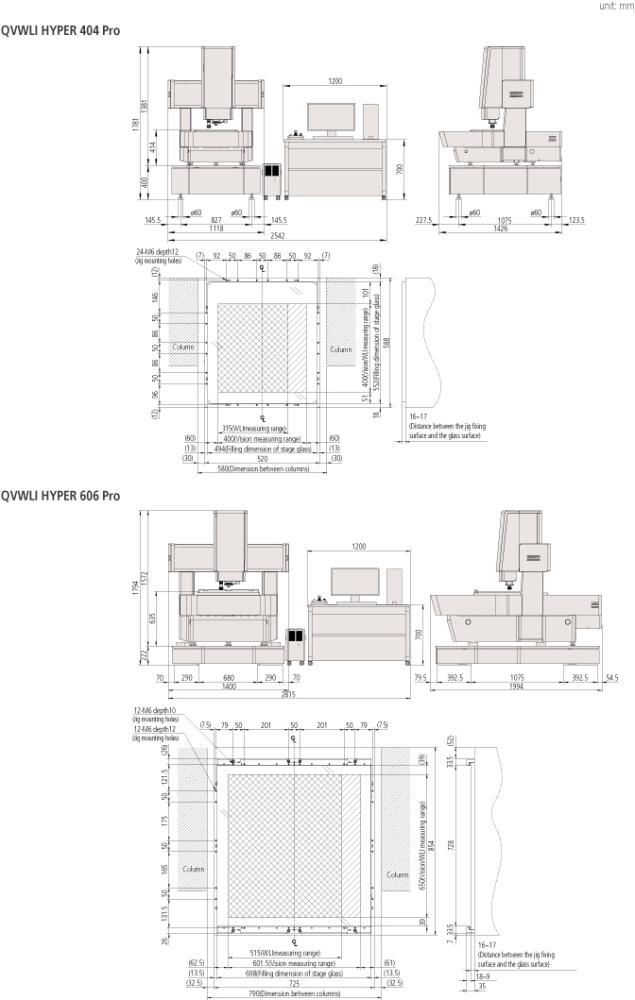

1118×1426×1781 | 1400×1994×1794 | ||
| Stage glass (W×D) [mm] | 493×551 | 697×758 | ||
| Main unit mass (Including vibration isolator) [kg] | 1205 | 2275 | ||
| Vision measuring accuracy [μm]*¹ |
Vision | EUX / EUY, MPE | (0.8 + 2L / 1000) | |
| EUXY, MPE | (1.4 + 3L / 1000) | |||
| EUZ, MPE | (1.5 + 2L / 1000) | |||
| STREAM*² (optional) |
E1X, E1Y | (1.5 + 3L / 1000) | ||
| E2XY | (2.0 + 4L / 1000) | |||
| Optical magnification | 2.5x objective (QV-HR2.5x or QV-SL2.5x) and middle magnification tube lens | |||
| WLI repeatability [μm]*² | 2σ≤0.08 | |||
| Resolution of scale [μm] | 0.01 | |||
| Accuracy guaranteed environment |
Ambient temperature | 20±1 °C | ||
| Temperature variation | 0.5 °C/1H and 1 °C/24H | |||
| Acoustic condition | 70 dB or less | |||
| Maximum stage loading [kg]*³ | 25 | 35 | ||
| Observation unit | Image capruting device |
Vision | B&W CMOS digital camera | |
| WLI | CCD camera | |||
| Power turret*⁴ | Programmable power turret 1x, 2x, 6x, (12x)*⁵ | |||
| Illumination unit | Stage light | White LED | ||
| Vertical coaxial light (Vision) | White LED | |||
| Vertical coaxial light (WLI) | Halogen | |||
| PRL | White LED | |||
| Air supply | Pressure | 0.4 MPa*⁶ | ||
*1 L: arbitrary measuring length (unit: mm)
*2 Determined by Mitutoyo's inspection method.
*3 An excessively biased or concentrated load is excluded.
*4 Programmable power turret 1x, 2x, 4x, 6x model is available by special order. Digital magnification function allows 8x and 12x in addition to 1x, 2x, 4x, 6x. 6 steps of magnification are available in total.
*5 The value in parenthesis is for digital magnification change.
*6 Air supply pressure to be in range 0.45 to 0.7 MPa.
