R-Y (Metric Threads)
- For tapping general fasteners made from such thin steel sheets as SPC and SPH, and from such soft steels as under SS400 and S20C.
Specification
Tapping Speeds depending on Materials
Segment：1J
|

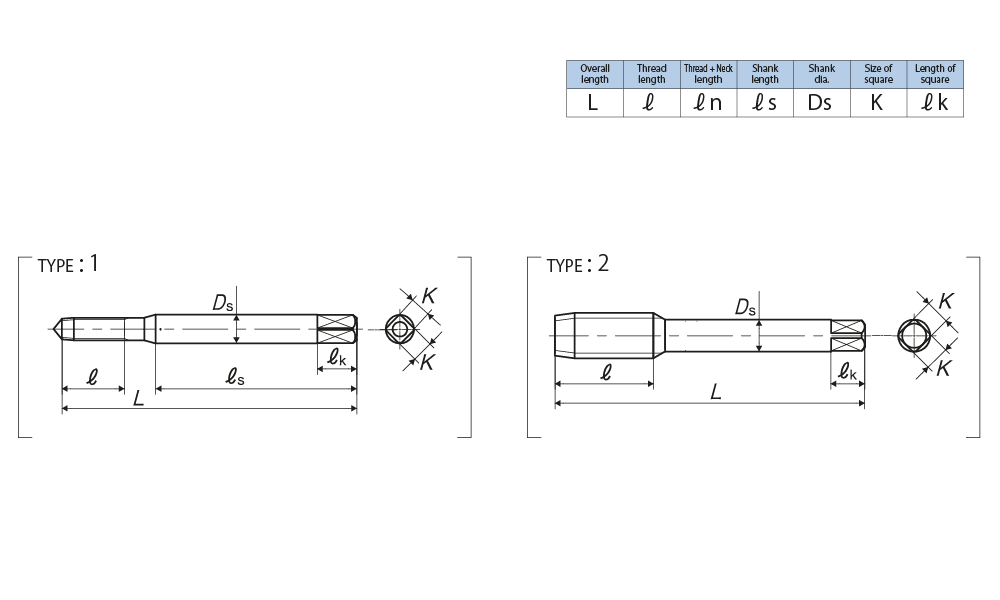

Size |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
Lobe |
TYPE |
|
For Metric Threads |
|||||||||||
|
M2×0.4 |
RY2.0E3 |
3P |
42 |
7 |
- |
31 |
3 |
2.5 |
5 |
4 |
1 |
|
M2.5×0.45 |
RY2.5F3 |
3P |
44 |
8 |
- |
33 |
3 |
2.5 |
5 |
4 |
1 |
|
M2.6×0.45 |
RY2.6F3 |
3P |
44 |
8 |
- |
33 |
3 |
2.5 |
5 |
4 |
1 |
|
M3×0.5 |
RY3.0G3 |
3P |
46 |
9 |
- |
33 |
4 |
3.2 |
6 |
4 |
1 |
|
M4×0.7 |
RY4.0I3 |
3P |
52 |
11 |
- |
36 |
5 |
4 |
7 |
4 |
1 |
|
M5×0.8 |
RY5.0K3 |
3P |
60 |
12 |
- |
43 |
5.5 |
4.5 |
7 |
4 |
1 |
|
M6×1 |
RY6.0M3 |
3P |
62 |
15 |
- |
44 |
6 |
4.5 |
7 |
4 |
1 |
|
M8×1.25 |
RY8.0N3 |
3P |
70 |
18 |
- |
- |
6.2 |
5 |
8 |
4 |
2 |
Number of oil grooves : non
・Please use CPR-Y for controlling of bored holes. （For CPR-Y, refer to product page ⑦-77）
