Roundness/ Cylindricity Measuring System

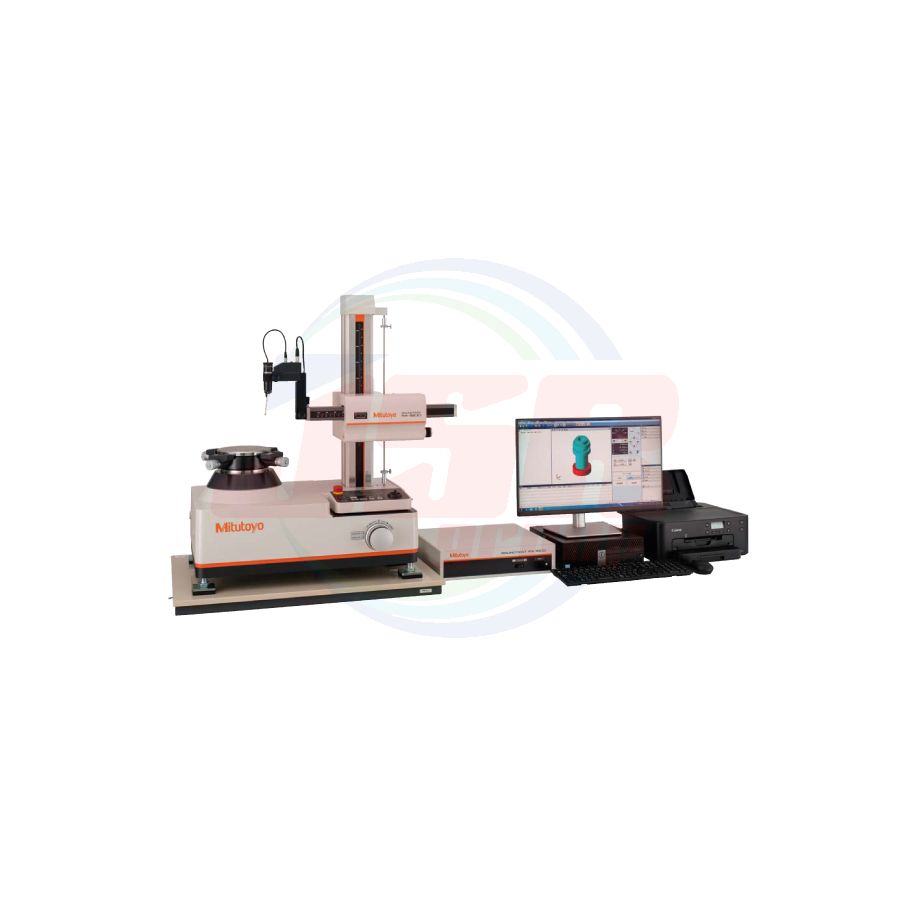

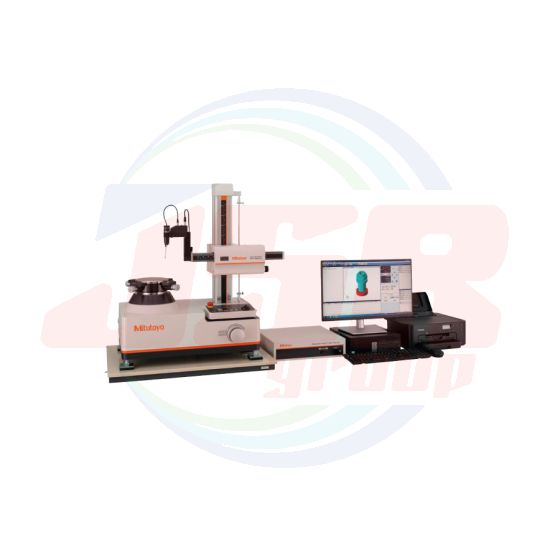

ROUNDTEST RA-1600



The body is compact but still achieves a wide measuring range. Provides high accuracy comparable to high-end models.

Rotational accuracy (Radial direction): (0.02 + 6H/10000) μm
(H: Probing height in mm)
Maximum load: 25 kg

RA-1600 | ROUNDTEST RA-1600 - Roundness/ Cylindricity Measuring System | MITUTOYO
RA-1600 | ROUNDTEST RA-1600 - Roundness/ Cylindricity Measuring System | MITUTOYO

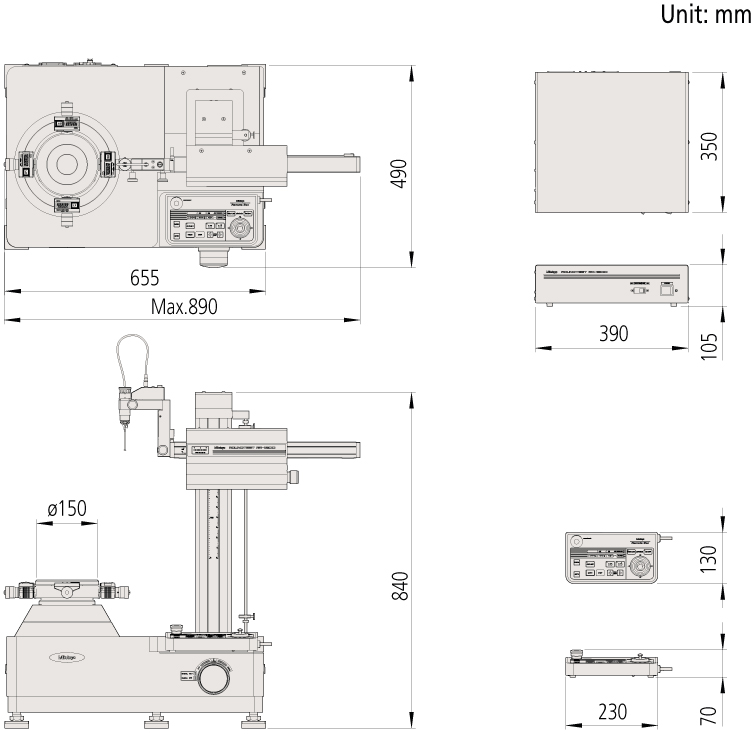

SPECIFICATIONS

Model No. RA-1600
Turntable unit Rotational accuracy Radial direction (0.02+6H / 10000) μm H: Probing height (mm) JIS B7451-1997
Axial direction (0.02+6X / 10000) μm X: Distance from the center of rotation (mm)
Rotating speed 4, 6, 10 rpm
Table effective size ø150 mm
Centering/leveling adjustment D.A.T.
Centering adjustment range ±3 mm
Leveling adjustment range ±1 °
Maximum loading 25 kg
Maximum probing diameter ø280 mm
Maximum workpiece diameter ø560 mm
Vertical drive unit
(Z-axis)
Straightness of drive Narrow range 0.20 μm / 100 mm
Wide range 0.30 μm / 300 mm
Parallelism with turntable axis 1.5 μm / 300 mm
Traverse speed Max. 15 mm/s (Measurement: 0.5, 1, 2, 5 mm/s)
Maximum probing height
(ID / OD)
300 mm*¹
Maximum probing
depth
over ø 32 91 mm (with standard stylus)
over ø 7 50 mm (with standard stylus)
Radial drive unit
(X-axis)
Straightness of drive 2.7 μm / 140 mm
Perpendicularity to turntable axis 1.6 μm / 140 mm
Traverse range amount 165 mm (From table axis -25 mm ~ +140 mm)
Traverse speed Max. 8 mm/s (measurement: 0.5, 1, 2, 5 mm/s)
Detector Measuring force 10 ~ 50 mN (5 level switching) (ID/OD measuring position with standard stylus)
Measuring
range
Standard ±400 μm / ±40 μm / ±4 μm
Follow ±5 mm
Tip shape, material ø 1.6 mm tungsten carbide
Other IN/OUT one-touch switching, Stylus angle scale markings (±45 °), Z-axis collision detection function
Other Power supply 100 V ~ 240 V
Power consumption 80 W
Air pressure 0.39 MPa
Air consumption 22 L/min (standard state)
Mass of main unit (NET) 170 kg

*1: Use an optional auxiliary stage for measuring a workpiece whose height is 20 mm or less.
