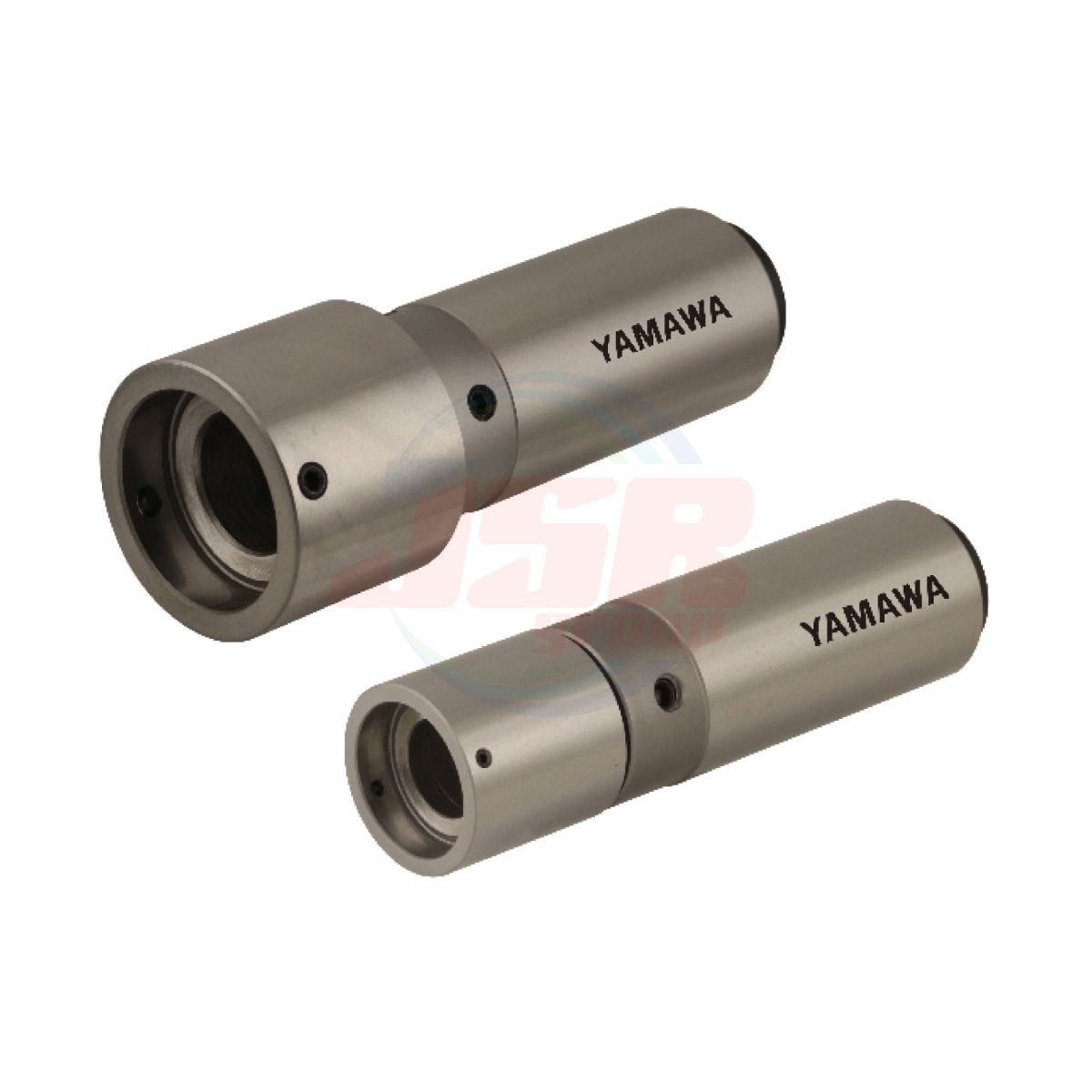

RD-DA (DA10-20) | Die Attachment (Designed Specially for Solid Round Dies) | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 5,749.53
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
DA10-20
QTY:
1
● Tooling designed specially for solid dies, with the mechanism to compensate for feed error and to absorb misalignment.
● Combined with CNC toolings, this attachment enables the cutting of external threads on complex workpieces with ease.
| ● Due to the mechanism to compensate for feed error, the thrust in the axial direction decreases and the tool life becomes longer. | ● By automatic centering, RD-DA absorbs misalignment in radial direction and realizes the high precision thread cutting of external threads. |
 |
 |
| Cutting data | Cutting data | |||||||
| Cutting condition（Rigid feed） | Cutting condition（Rigid feed） | |||||||
| Tool Size | M10×1.5 | Cutting Length | 15mm | Tool Size | M8×1.25 | Cutting Length | 12mm | |
| Work Material | Brass | Machine | Vertical MC | Work Material | Brass | Machine | Vertical MC | |
| Cutting Speed | 5m/min | Cutting Fluid | Tapping spray | Cutting Speed | 5m/min | Cutting Fluid | Water soluble | |
 |
 |
| ⒈ Align push-hole or V groove of the die with the side lock screw on RD-DA and attach die. ⒉ Turn the side lock screw by hex wrench and fasten die tightly. ⒊ Make sure the die is fastened tightly and use RD-DA with NC toolings. |
 |
Specification
Segment：3A
|
Code |
Ds (mm) |
D1 (mm) |
D2 (mm) |
L (mm) |
ℓs (mm) |
ℓ (mm) |
ℓ1 (mm) |
D (mm) |
T (mm) |
TYPE |
|
DA10-20 |
20 |
20 |
6 |
71 |
40 |
3 |
11 |
10 |
3 |
1 |
|
DA16-20 |
20 |
20 |
10 |
76 |
40 |
4.5 |
16 |
16 |
5 |
1 |
|
DA20-25 |
25 |
25 |
12 |
89 |
45 |
6.5 |
22.5 |
20 |
7 |
1 |
|
DA25-25 |
25 |
32 |
16 |
89 |
45 |
7.5 |
22 |
25 |
9 |
2 |
|
DA38-32 |
32 |
50 |
26 |
122 |
60 |
11 |
36 |
38 |
13 |
2 |
Remarks: Products marked with ▲ in the MSRP column are while supplies last.
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | (DA10-20) |
| Model | RD-DA |
| Size | DA10-20 |
| Overall length (L) | 71 |
| Thread length (ℓ) | 3 |
| Shank length (ℓs) | 40 |
| Shank dia. (Ds) | 20 |
