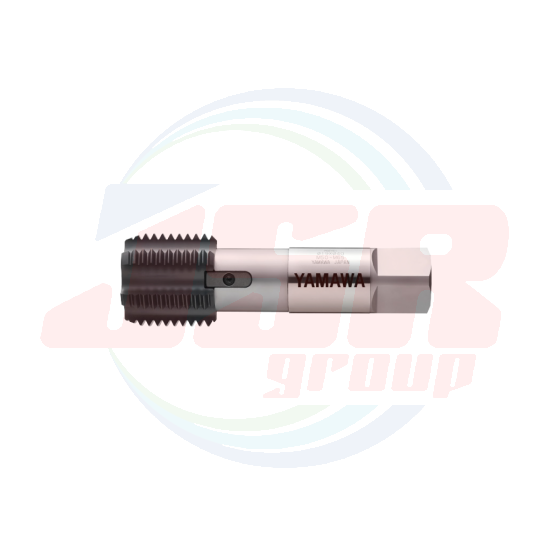

RE-HT (Metric Threads)
Product Features

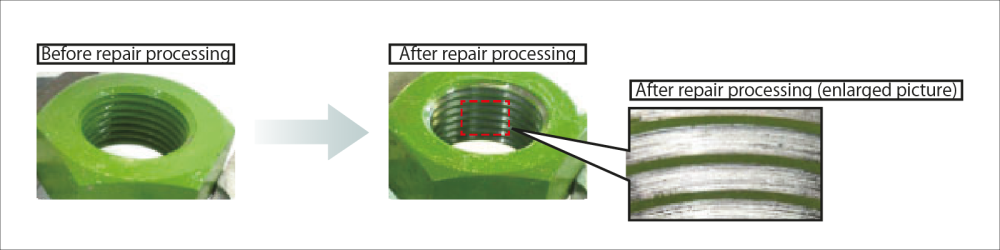

- Main application: repair of screw threads. Removal of burrs, rust, paint or spattering during welding operation.
- Utilizing the best cutting edge shape for manual repairing of large diameter threads.
- By simply exchanging the tap's head portion, it is possible to repair M50 〜 M80 threads using the same arbor and it's very economical.
- By using a long type of arbor, you can repair threads deep in a hole.

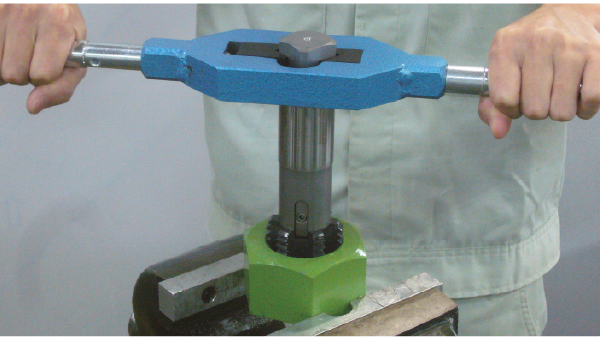

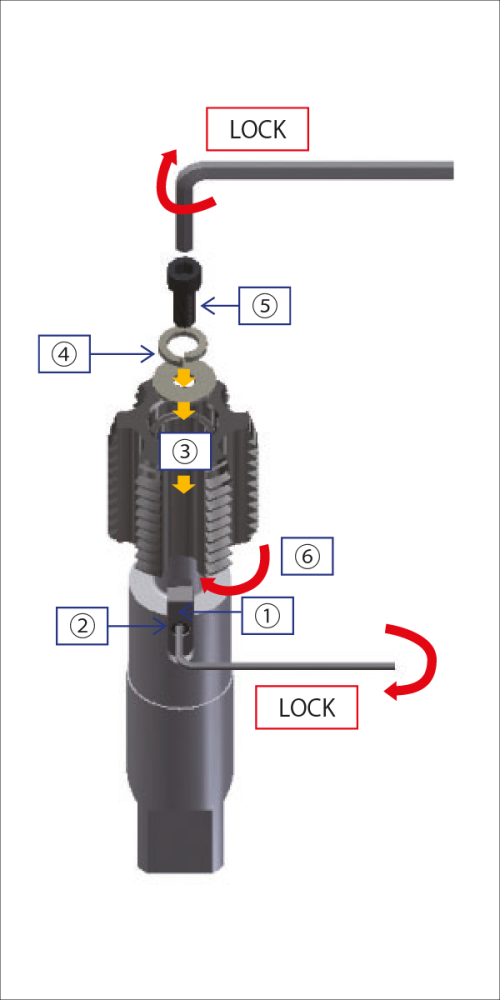

Assembling method
【procedure】
① Insert the parallel drive key into the key groove on the arbor.
② Turn the M4 bolt using a 3 mm hex wrench and firmly tighten the parallel drive key in place.
* On the opposite side, follow the operation instructions
① and ② and firmly tighten the second parallel drive key.
③ Insert the cutting edge portion of the tap onto the pilot diameter of the arbor.
(Align the tenon groove of the cutting edge portion of the tap to the parallel drive key
on the arbor).
④ Set the flat washer and the spring washer in the countersink of the cutting edge portion.
⑤ Lightly tighten the M10 center bolt with a 8 mm hex wrench.
⑥ Rotate the cutting edge portion of the tap toward the parallel drive key like that of
the cutting load during tapping.
Firmly tighten the M10 center bolt using a 8 mm hex wrench to attach the cutting edge
portion of the tap to the arbor.
* When exchanging the taps head part, secure the arbor firmly to the vise.
* When ordering for the first time, please order a set of head and arbor.
【reference】
Tightening torque of taps head fixing screw
Note:
・ Because of the tap's head replacement method, normal tapping to produce internal thread can not be performed.
Be careful as there is a risk of breakage if an excess torque is imposed on the tap.
・The RE-HT is designed to be used by hand, it can not be used on machines.
・Excessive tightening of hexagon socket head bolts may cause deformation or breakage.
Specification
Tapping Speeds depending on Materials
Segment：1A
|
Size |
Class |
Code |
Chamfer |

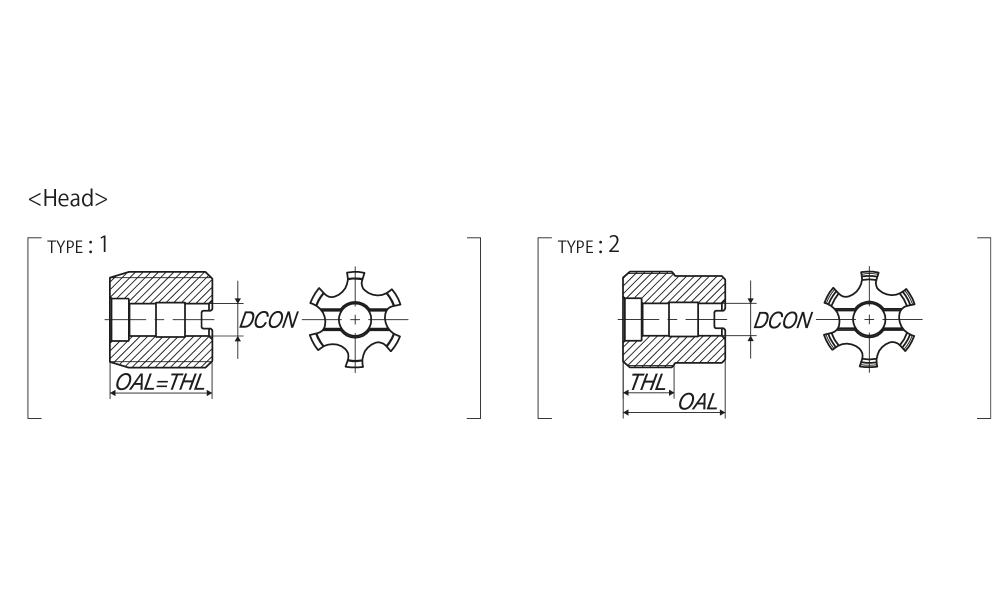

OAL（L） (mm) |
THL（ℓ） (mm) |
DCON（d） (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||
|
M50×3 |
ISO2 |
T5050SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M50×2 |
ISO2 |
T5050QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M50×1.5 |
ISO2 |
T5050OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M52×5 |
ISO2 |
T5052WANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M52×4 |
ISO2 |
T5052UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M52×3 |
ISO2 |
T5052SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M52×2 |
ISO2 |
T5052QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M52×1.5 |
ISO2 |
T5052OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M55×4 |
ISO2 |
T5055UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M55×3 |
ISO2 |
T5055SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M55×2 |
ISO2 |
T5055QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M55×1.5 |
ISO2 |
T5055OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M56×5.5 |
ISO2 |
T5056XANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M56×4 |
ISO2 |
T5056UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M56×3 |
ISO2 |
T5056SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M56×2 |
ISO2 |
T5056QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M56×1.5 |
ISO2 |
T5056OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M58×4 |
ISO2 |
T5058UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M58×3 |
ISO2 |
T5058SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M58×2 |
ISO2 |
T5058QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M58×1.5 |
ISO2 |
T5058OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M60×5.5 |
ISO2 |
T5060XANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M60×4 |
ISO2 |
T5060UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M60×3 |
ISO2 |
T5060SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M60×2 |
ISO2 |
T5060QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M60×1.5 |
ISO2 |
T5060OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M62×4 |
ISO2 |
T5062UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M62×3 |
ISO2 |
T5062SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M62×2 |
ISO2 |
T5062QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M62×1.5 |
ISO2 |
T5062OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M64×6 |
ISO2 |
T5064YANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M64×4 |
ISO2 |
T5064UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M64×3 |
ISO2 |
T5064SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M64×2 |
ISO2 |
T5064QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M64×1.5 |
ISO2 |
T5064OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M65×4 |
ISO2 |
T5065UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M65×3 |
ISO2 |
T5065SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M65×2 |
ISO2 |
T5065QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M65×1.5 |
ISO2 |
T5065OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M68×6 |
ISO2 |
T5068YANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M68×4 |
ISO2 |
T5068UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M68×3 |
ISO2 |
T5068SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M68×2 |
ISO2 |
T5068QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M68×1.5 |
ISO2 |
T5068OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M70×6 |
ISO2 |
T5070YANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M70×4 |
ISO2 |
T5070UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M70×3 |
ISO2 |
T5070SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M70×2 |
ISO2 |
T5070QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M70×1.5 |
ISO2 |
T5070OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M72×6 |
ISO2 |
T5072YANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M72×4 |
ISO2 |
T5072UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M72×3 |
ISO2 |
T5072SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M72×2 |
ISO2 |
T5072QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M72×1.5 |
ISO2 |
T5072OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M75×4 |
ISO2 |
T5075UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M75×3 |
ISO2 |
T5075SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M75×2 |
ISO2 |
T5075QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M75×1.5 |
ISO2 |
T5075OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M76×6 |
ISO2 |
T5076YANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M76×4 |
ISO2 |
T5076UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M76×3 |
ISO2 |
T5076SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M76×2 |
ISO2 |
T5076QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M76×1.5 |
ISO2 |
T5076OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M78×2 |
ISO2 |
T5078QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M80×6 |
ISO2 |
T5080YANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M80×4 |
ISO2 |
T5080UANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M80×3 |
ISO2 |
T5080SANEX2 |
2P |
60 |
60 |
22 |
6 |
1 |
|
M80×2 |
ISO2 |
T5080QANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
|
M80×1.5 |
ISO2 |
T5080OANEX2 |
2P |
60 |
30 |
22 |
6 |
2 |
