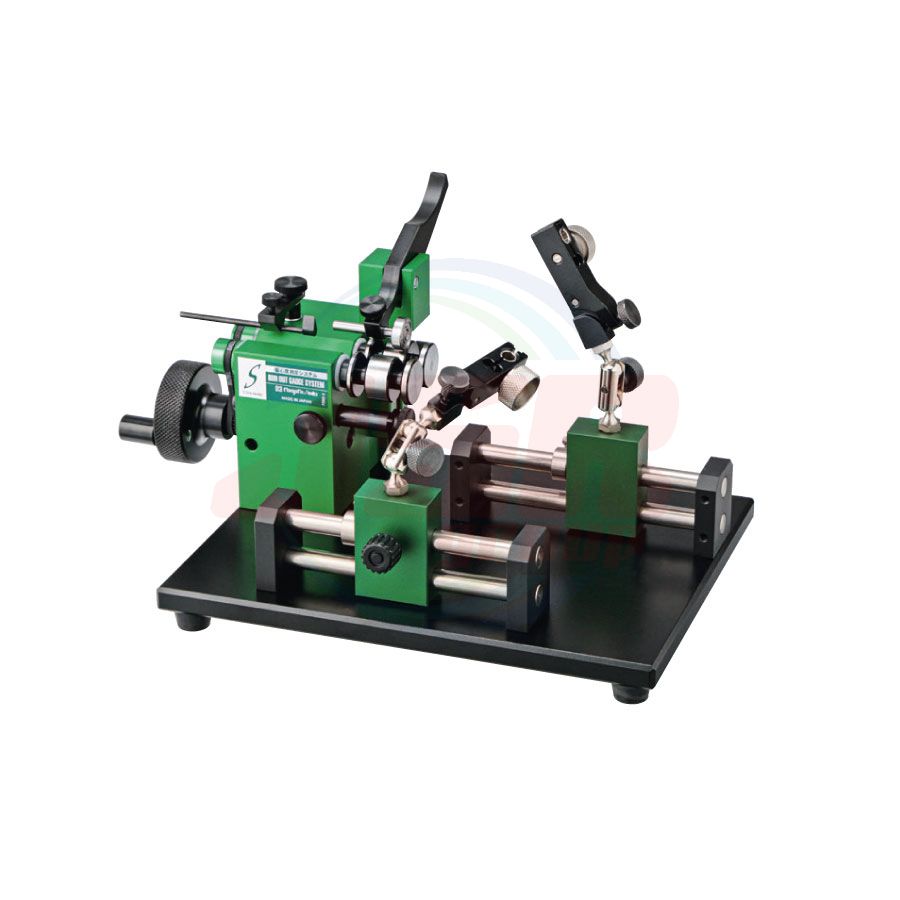

S-LINE RUN-OUT GAUGE SYSTEM（ DOUBLE CARRIER TYPE）

Capable of simultaneous measurement for front and rear of workpiece.
Concentricity measurement by mounting your current indicator or electronic micrometer to this system.

USE
●Concentricity measurement by mounting your current indicator or electronic micrometer to this system
MATERIAL
●Base： Carbon steel ●Roller： Tool steel
FEATURES
●Capable of simultaneous measurement for front and rear of workpiece
●Up to 2μm※ accuracy. Highly accurate measurement is possible.
  ※When measuring φ20mm workpiece
●Smooth measurement with grip handle and timing belt & pulley operation system
●With carrier stopper for repeated measurements at the same location
●Carrier with angle fine adjustment for easy zero-setting of measuring instruments
●Free movement in XYZ directions enables measurement at the optimum position
●Equipped with work retainer for holding front and rear of workpiece and to enable measurement of axial run-out
SPECIFICATIONS
●Accuracy: Within 2～3.5μm　※2μm=when measuring φ20mm workpiece
●Provided with aluminum carrying case
