ROG-251SM (010218) | S-LINE RUN-OUT GAUGE SYSTEM（ MOTOR TYPE）| SK NIIGATA SEIKI

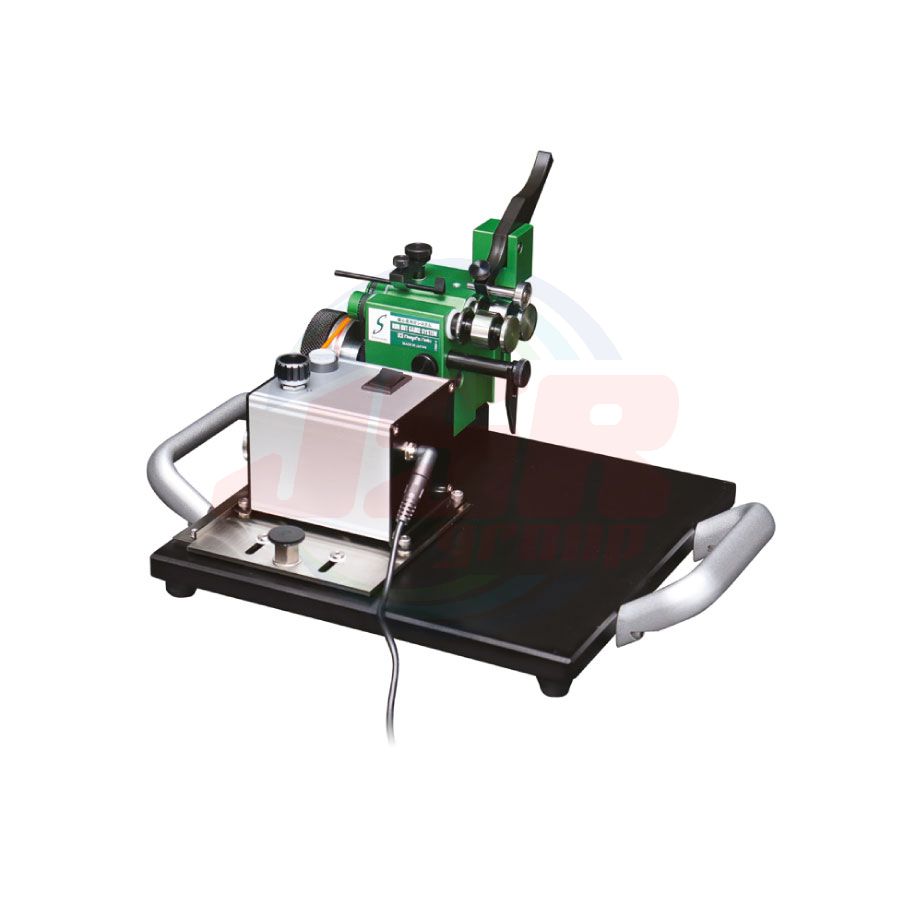

S-LINE RUN-OUT GAUGE SYSTEM（ MOTOR TYPE）

Motor drive enables repeated run-out measurement.（ Motor drive or manual is switchable）
Concentricity measurement by mounting your current indicator or electronic micrometer to this system.

USE
●Concentricity measurement by mounting your current indicator or electronic micrometer to this system
MATERIAL
●Base： Carbon steel ●Roller： Tool steel
FEATURES
●Up to 2μm※ accuracy. Highly accurate measurement is possible.
  ※When measuring φ20mm workpiece
●When motor drive is on, rotation speed of workpiece is adjustable and rotation direction is switchable（ forward/ reverse）
●Manual operation with handle by loosening the belt
SPECIFICATIONS
●Accuracy: Within 2～3.5μm ※2μm=when measuring φ20mm workpiece
●Powe：r AC100～240Ｖ 50/60Hz（ Use the included AC adapter）
●Power consumption： Max. 5W
●Speed setting range of main roller: 5.5～9.5min-1（ OD of Main roller: φ21.9mm）
●AC adaptor code length： Approx. 1.5m ●Provided with aluminum carrying case
