ROG-581S (010215) | S-LINE RUN-OUT GAUGE SYSTEM（ FOR LONG OBJECTS) | SK NIIGATA SEIKI

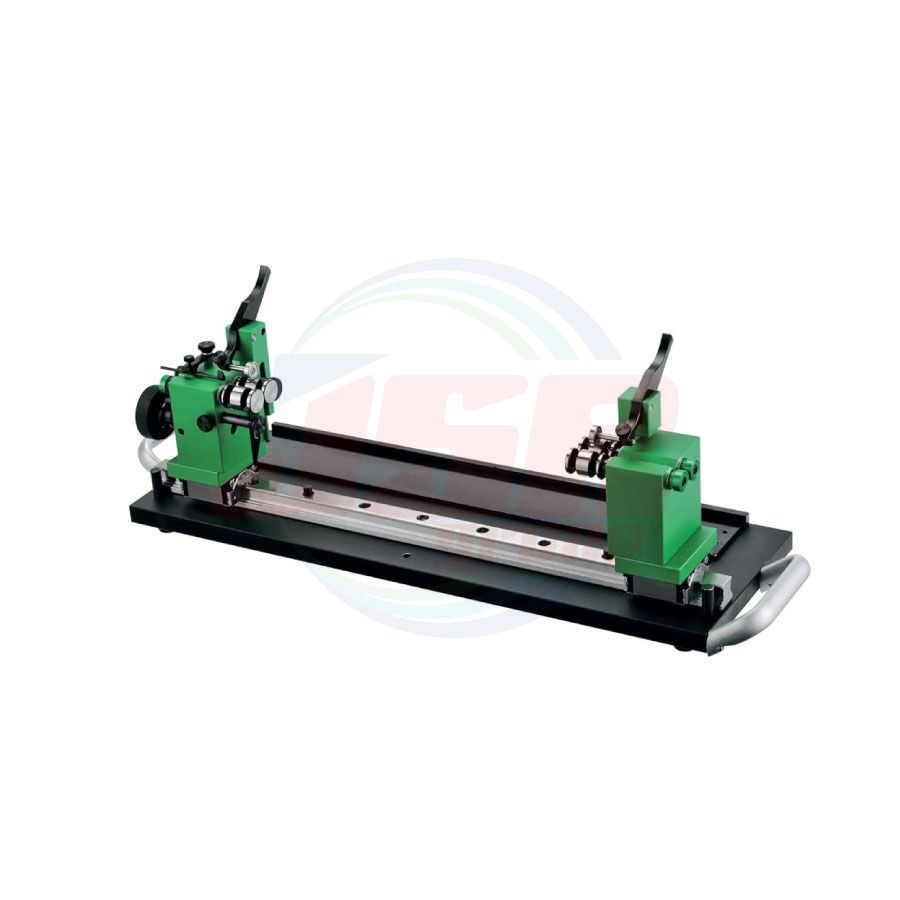

S-LINE RUN-OUT GAUGE SYSTEM（ FOR LONG OBJECTS）

Capable of measuring up to 300mm length work.
Concentricity measurement by mounting your current indicator or electronic micrometer to this gaging system.

USE
●Concentricity measurement by mounting your current indicator or electronic micrometer to this system
MATERIAL
● Base: Aluminum, Carbon steel ●Roller: Tool steel
FEATURES
● Capable of measuring up to 300mm length work
● Up to 4μm accuracy. Highly accurate masurement is possible.
● Smooth measurement with grip handle and timing belt & pulley operation system
● Equipped with work retainer for holding front and rear of workpiece and to enable measurement, of axial run-out
SPECIFICATIONS
● Accuracy: within 4μm ● Provided with aluminum carrying case
