RA-2200 / RA-2200 PLUS
High-performance Roundness/ Cylindricity Measuring System

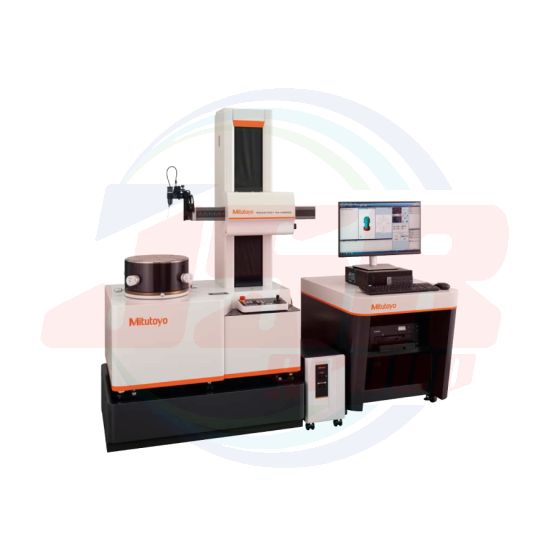

ROUNDTEST RA-2200
ROUNDTEST RA-2200 PLUS
D type: Enhanced procedure of centering and leveling adjustment
A type: Automated centering and leveling adjustment
Medium-sized roundness measuring systems that can reduce workload of operator.
Rotational accuracy (Radial direction): (0.02 + 3.5H/10000) μm
(H: Probing height in mm)
Maximum load: 30 kg

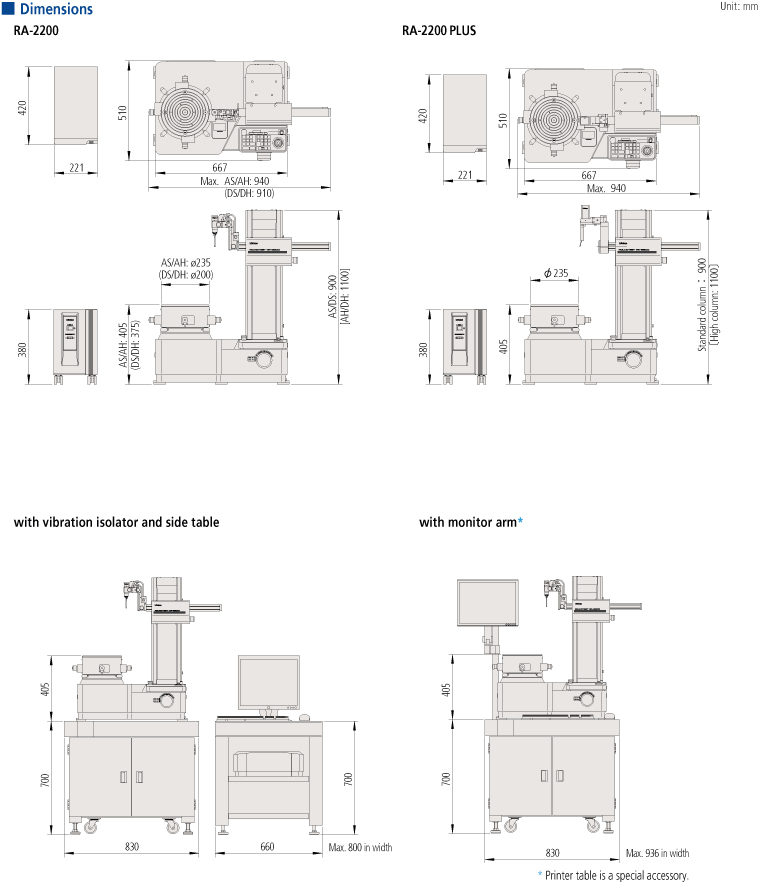

SPECIFICATIONS
■ RA-2200
| Model No. | RA-2200AS | RA-2200DS | RA-2200AH | RA-2200DH | ||
| Turntable unit | Rotational accuracy | Radial direction | (0.02+3.5H/10000) µm H: probing height (mm) | |||
| Axial direction | (0.02+3.5X/10000) µm X: Distance from the center of rotation (mm) | |||||
| Rotating speed | 2, 4, 6, 10 rpm | |||||
| Table effective size | ø235 mm | ø200 mm | ø235 mm | ø200 mm | ||
| Centering/leveling adjustment | A.A.T | D.A.T | A.A.T | D.A.T | ||
| Centering adjustment range | ±3 mm | ±5 mm | ±3 mm | ±5 mm | ||
| Leveling adjustment range | ±1 ° | |||||
| Max. loading mass | 30 kg | |||||
| Max. probing diameter | 300 mm | |||||
| Max. loading diameter | 580 mm | |||||
| Vertical drive unit (Z-axis) |
Straightness accuracy | 0.10 µm/100 mm ( c2.5) 0.15 µm/300 mm ( c2.5) |
0.10 µm/100 mm ( c2.5) 0.25 µm/500 mm ( c2.5) |
|||
| Parallelism to rotation center | 0.7 µm/300 mm (Referential generatrix line) |
1.2 µm/500 mm (Referential generatrix line) |
||||
| Traverse speed | Max. 50 mm/s (during measurement: 0.5/1/2/5 mm/s) | |||||
| Max. probing height |
OD | 300 mm | 500 mm | |||
| ID | 300 mm | 500 mm | ||||
| Max. probing depth (with standard stylus) | 85 mm for ø32 mm or more, 50 mm for ø7 mm | |||||
| Radial drive unit (X-axis) |
Straightness accuracy | 0.7 µm/150 mm ( c2.5) | ||||
| Horizontal to rotation center | 1.0 µm/150 mm (Referential generatrix line) | |||||
| Traverse range | 175 mm (-25 mm to +150 mm from the rotation center ) | |||||
| Traverse speed | Max. 30 mm/s (during measurement: 0.5/1/2/5 mm/s) | |||||
| Detector | Measuring force | 10 ～ 50 mN (switching 5-step) | ||||
| Stylus design, material | ø1.6 mm tungsten carbide ball | |||||
| Measuring range |
Standard | ±400 µm/±40 µm/±4 µm | ||||
| Follow | ±5 mm | |||||
| Other | In/out switching feature, Measuring force switching feature (5-step), Stylus angle scale markings (±45 º), Collision detection function for Z-axis direction, Sliding detector holder (plus 3 rotational positions) |
|||||
| Other | Power supply | 100V ～ 240 V | ||||
| Air pressure | 0.39 MPa | |||||
| Air consumption | 30 L/min in standard state (80 L/min or more as air source) | |||||
| Mass (main unit) | 180 kg | 200 kg | ||||
■ RA-2200 PLUS
| Model No. | RA-2200 PLUS | |||
| Z-axis | Standard column (Vertical travel: 300 mm) |
High column (Vertical travel: 500 mm) |
||
| Turntable unit | Rotational accuracy | Radial direction | (0.02+3.5H/10000) µm H: probing height (mm) | |
| Axial direction | (0.02+3.5X/10000) µm X: Distance from the center of rotation (mm) | |||
| Rotating speed | 2, 4, 6, 10 rpm | |||
| Table effective size | ø235 mm | |||
| Centering/leveling adjustment | A.A.T | |||
| Centering adjustment range | ±3 mm | |||
| Leveling adjustment range | ±1 ° | |||
| Max. loading mass | 30 kg | |||
| Max. probing diameter | 256 mm (OD), 344 mm (ID) | |||
| Max. loading diameter | 580 mm | |||
| Vertical drive unit (Z-axis) |
Straightness accuracy | 0.10 µm/100 mm ( c2.5) 0.15 µm/300 mm ( c2.5) |
0.10 µm/100 mm ( c2.5) 0.25 µm/500 mm ( c2.5) |
|
| Parallelism to rotation center | 0.7 µm/300 mm (Referential generatrix line) |
1.2 µm/500 mm (Referential generatrix line) |
||
| Traverse speed | Max. 50 mm/s (during measurement: 0.5/1/2/5 mm/s) | |||
| Max. probing height |
OD | 300 mm | 500 mm | |
| ID | 300 mm | 500 mm | ||
| Max. probing depth (with standard stylus) | 26 mm for ø12.7 mm or more, 104 mm for ø32 mm | |||
| Radial drive unit (X-axis) |
Straightness accuracy | 0.7 µm/150 mm ( c2.5) | ||
| Horizontal to rotation center | 1.0 µm/150 mm (Referential generatrix line) | |||
| Traverse range | 175 mm (-25 mm to +150 mm from the rotation center) | |||
| Traverse speed | Max. 30 mm/s (during measurement: 0.5/1/2/5 mm/s) | |||
| Detector | Measuring force | 40 mN | ||
| Stylus design, material | ø1.6 mm tungsten carbide | |||
| Measuring range |
Standard | ±400 μm/±40 μm/±4 μm/ | ||
| Follow | ±5 mm | |||
| Other | Accidental touch function Measuring direction : one direction |
|||
| Other | Power supply | 100 V ～ 240 V | ||
| Air pressure | 0.39 MPa | |||
| Air consumption | 30 L/min in standard state (80 L/min or more as air source) | |||
| Mass (main unit) | 180 kg | 200 kg | ||
