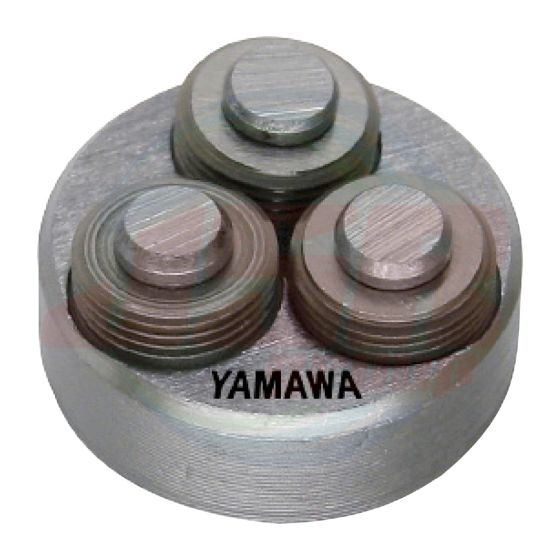

- The MS-RS-D/RS-D is a rolling die capable of machining high precision external threads with a excellent surface finish. The threads are created by plastic forming of the material
without creating chips.
Specification
Tapping Speeds depending on Materials
RS-D
Recommended class
Segment：34
|

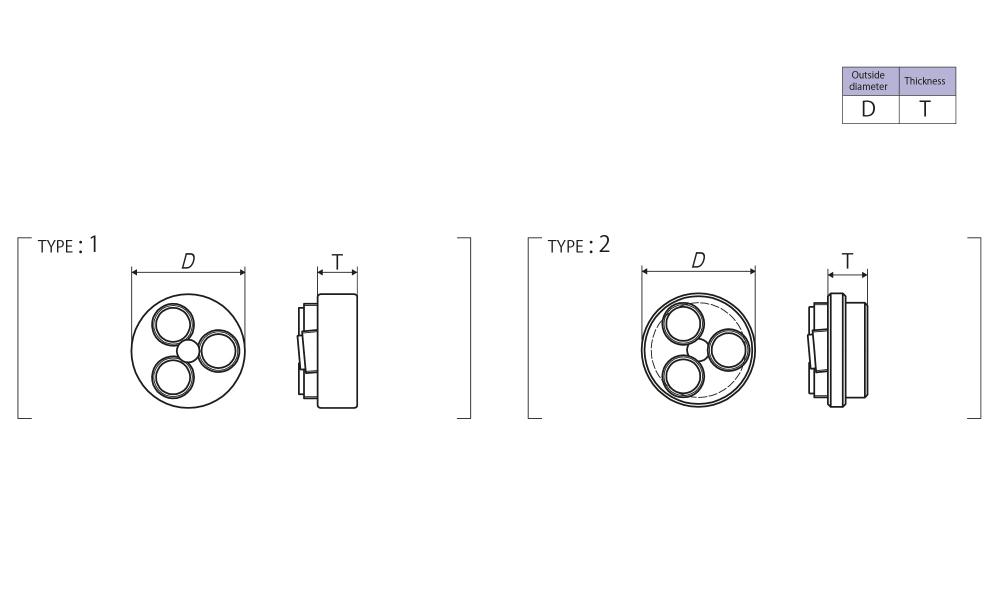

Size |
Class |
Code |
D (mm) |
T (mm) |
TYPE |
|
For Metric Threads |
|||||
|
M1× 0.25 |
R2 |
RBQ1.0B |
10 |
3.5 |
1 |
|
M1× 0.25 |
R3 |
RBR1.0B |
10 |
3.5 |
1 |
|
M1× 0.25 |
R4 |
RBS1.0B |
10 |
3.5 |
1 |
|
M1.1× 0.25 |
R1 |
RBP1.1B |
10 |
3.5 |
1 |
|
M1.1× 0.25 |
R2 |
RBQ1.1B |
10 |
3.5 |
1 |
|
M1.1× 0.25 |
R3 |
RBR1.1B |
10 |
3.5 |
1 |
|
M1.2× 0.25 |
R2 |
RBQ1.2B |
10 |
3.5 |
1 |
|
M1.2× 0.25 |
R3 |
RBR1.2B |
10 |
3.5 |
1 |
|
M1.2× 0.25 |
R4 |
RBS1.2B |
10 |
3.5 |
1 |
|
M1.4× 0.3 |
R2 |
RBQ1.4C |
10 |
3.5 |
1 |
|
M1.4× 0.3 |
R2 |
RDQ1.4C |
16 |
5 |
1 |
|
M1.4× 0.3 |
R3 |
RBR1.4C |
10 |
3.5 |
1 |
|
M1.4× 0.3 |
R3 |
RDR1.4C |
16 |
5 |
1 |
|
M1.4× 0.3 |
R4 |
RBS1.4C |
10 |
3.5 |
1 |
|
M1.4× 0.3 |
R4 |
RDS1.4C |
16 |
5 |
1 |
|
M1.6× 0.35 |
R2 |
RQQ1.6D |
12×10 |
4.5 |
2 |
|
M1.6× 0.35 |
R2 |
RDQ1.6D |
16 |
5 |
1 |
|
M1.6× 0.35 |
R3 |
RQR1.6D |
12×10 |
4.5 |
2 |
|
M1.6× 0.35 |
R3 |
RDR1.6D |
16 |
5 |
1 |
|
M1.6× 0.35 |
R4 |
RQS1.6D |
12×10 |
4.5 |
2 |
|
M1.6× 0.35 |
R4 |
RDS1.6D |
16 |
5 |
1 |
|
M1.7× 0.35 |
R2 |
RQQ1.7D |
12×10 |
4.5 |
2 |
|
M1.7× 0.35 |
R2 |
RDQ1.7D |
16 |
5 |
1 |
|
M1.7× 0.35 |
R3 |
RQR1.7D |
12×10 |
4.5 |
2 |
|
M1.7× 0.35 |
R3 |
RDR1.7D |
16 |
5 |
1 |
|
M1.7× 0.35 |
R4 |
RQS1.7D |
12×10 |
4.5 |
2 |
|
M1.7× 0.35 |
R4 |
RDS1.7D |
16 |
5 |
1 |
|
M1.8× 0.35 |
R2 |
RDQ1.8D |
16 |
5 |
1 |
|
M1.8× 0.35 |
R3 |
RDR1.8D |
16 |
5 |
1 |
|
M1.8× 0.35 |
R4 |
RDS1.8D |
16 |
5 |
1 |
|
M2× 0.4 |
R2 |
RDQ2.0E |
16 |
5 |
1 |
|
M2× 0.4 |
R3 |
RDR2.0E |
16 |
5 |
1 |
|
M2× 0.4 |
R4 |
RDS2.0E |
16 |
5 |
1 |
|
M2× 0.25 |
R2 |
RDQ2.0B |
16 |
5 |
1 |
|
M2× 0.25 |
R3 |
RDR2.0B |
16 |
5 |
1 |
|
M2× 0.25 |
R4 |
RDS2.0B |
16 |
5 |
1 |
|
M2.2× 0.45 |
R2 |
RDQ2.2F |
16 |
5 |
1 |
|
M2.2× 0.45 |
R3 |
RDR2.2F |
16 |
5 |
1 |
|
M2.2× 0.45 |
R4 |
RDS2.2F |
16 |
5 |
1 |
|
M2.3× 0.4 |
R2 |
RDQ2.3E |
16 |
5 |
1 |
|
M2.3× 0.4 |
R3 |
RDR2.3E |
16 |
5 |
1 |
|
M2.3× 0.4 |
R4 |
RDS2.3E |
16 |
5 |
1 |
|
M2.3× 0.25 |
R2 |
RDQ2.3B |
16 |
5 |
1 |
|
M2.3× 0.25 |
R3 |
RDR2.3B |
16 |
5 |
1 |
|
M2.3× 0.25 |
R4 |
RDS2.3B |
16 |
5 |
1 |
|
M2.5× 0.45 |
R2 |
RDQ2.5F |
16 |
5 |
1 |
|
M2.5× 0.45 |
R2 |
REQ2.5F |
20 |
7 |
1 |
|
M2.5× 0.45 |
R4 |
RDS2.5F |
16 |
5 |
1 |
|
M2.5× 0.45 |
R4 |
RES2.5F |
20 |
7 |
1 |
|
M2.5× 0.45 |
R5 |
RDT2.5F |
16 |
5 |
1 |
|
M2.5× 0.45 |
R5 |
RET2.5F |
20 |
7 |
1 |
|
M2.5× 0.35 |
R2 |
RDQ2.5D |
16 |
5 |
1 |
|
M2.5× 0.35 |
R3 |
RDR2.5D |
16 |
5 |
1 |
|
M2.5× 0.35 |
R4 |
RDS2.5D |
16 |
5 |
1 |
|
M2.6× 0.45 |
R2 |
RDQ2.6F |
16 |
5 |
1 |
|
M2.6× 0.45 |
R2 |
REQ2.6F |
20 |
7 |
1 |
|
M2.6× 0.45 |
R4 |
RDS2.6F |
16 |
5 |
1 |
|
M2.6× 0.45 |
R4 |
RES2.6F |
20 |
7 |
1 |
|
M2.6× 0.45 |
R5 |
RDT2.6F |
16 |
5 |
1 |
|
M2.6× 0.45 |
R5 |
RET2.6F |
20 |
7 |
1 |
|
M2.6× 0.35 |
R2 |
RDQ2.6D |
16 |
5 |
1 |
|
M2.6× 0.35 |
R4 |
RDS2.6D |
16 |
5 |
1 |
|
M2.6× 0.35 |
R5 |
RDT2.6D |
16 |
5 |
1 |
|
M3× 0.5 |
R2 |
REQ3.0G |
20 |
7 |
1 |
|
M3× 0.5 |
R4 |
RES3.0G |
20 |
7 |
1 |
|
M3× 0.5 |
R5 |
RET3.0G |
20 |
7 |
1 |
|
M3× 0.35 |
R2 |
REQ3.0D |
20 |
7 |
1 |
|
M3× 0.35 |
R4 |
RES3.0D |
20 |
7 |
1 |
|
M3× 0.35 |
R5 |
RET3.0D |
20 |
7 |
1 |
|
M3.5× 0.35 |
R2 |
REQ3.5D |
20 |
7 |
1 |
|
M3.5× 0.35 |
R4 |
RES3.5D |
20 |
7 |
1 |
|
M3.5× 0.35 |
R5 |
RET3.5D |
20 |
7 |
1 |
|
M4× 0.5 |
R3 |
RER4.0G |
20 |
7 |
1 |
|
M4× 0.5 |
R5 |
RET4.0G |
20 |
7 |
1 |
|
M4× 0.5 |
R6 |
REU4.0G |
20 |
7 |
1 |
|
M5× 0.5 |
R3 |
RER5.0G |
20 |
7 |
1 |
|
M5× 0.5 |
R4 |
RES5.0G |
20 |
7 |
1 |
|
M5× 0.5 |
R5 |
RET5.0G |
20 |
7 |
1 |
|
M5× 0.5 |
R6 |
REU5.0G |
20 |
7 |
1 |
