RTD - ROTARY SLIP ADJUSTABLE TORQUE SCREWDRIVER | TOHNICHI
ราคาต่ำสุด
THB 0.00
THB 0.00
พร้อมส่ง
SKU
TOHNICHI-RTD-CN
ASSEMBY | AJUSTABLE | ROTARY SLIP | GRADUATION | ISO6789:2003
● Ratcheting mechanism prevents over torque.
● Torque easily set with external scale
Accuracy ±3%
| S.I. Order No. |
Torque Range [cN•m] |
Metric Order No. |
Torque Range [kgf•cm] |
American Order No. |
Torque Range [ozf•in/lbf•in] |
Overall Length [mm] |
Weight (g) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Min.-Max. | Grad. | Min.-Max. | Grad. | Min.-Max. | Grad. | |||||
| - | - | - | - | - | - | RTD20Z | ozf•in 6-20 |
ozf•in 0.2 |
100 | 50 |
| - | - | - | - | - | - | RTD40Z | 15-40 | 0.5 | ||
| - | - | - | - | - | - | RTD80Z | 20-80 | 1 | 110 | 80 |
| - | - | - | - | - | - | RTD150Z | 30-150 | 2 | 130 | 160 |
| RTD15CN | 2-15 | 0.1 | 1.5RTD | 0.2-1.5 | 0.01 | RTD1.3I | lbf·in 0.2-1.3 |
lbf·in 0.01 |
100 | 50 |
| RTD30CN | 4-30 | 0.2 | 3RTD | 0.4-3 | 0.02 | RTD2.6I | 0.4-2.6 | 0.02 | ||
| RTD60CN | 10-60 | 0.5 | 6RTD | 1-6 | 0.05 | RTD5I | 1-5 | 0.05 | 110 | 80 |
| RTD120CN | 20-120 | 1 | 12RTD | 2-12 | 0.1 | RTD10I | 2-10 | 0.1 | 130 | 160 |
| RTD260CN | 60-260 | 2 | 26RTD | 6-26 | 0.2 | RTD22I | 6-22 | 0.2 | 150 | 270 |
| RTD500CN | 100-500 | 5 | 50RTD | 10-50 | 0.5 | RTD40I | 10-40 | 0.5 | 155 | 320 |
Note. 1. Auxiliary tightening tool for RTD500CN is sold separately.
2. Bits are sold separately.
Standard Accessories. 1. Hook spanner for RTD260CN and RTD500CN

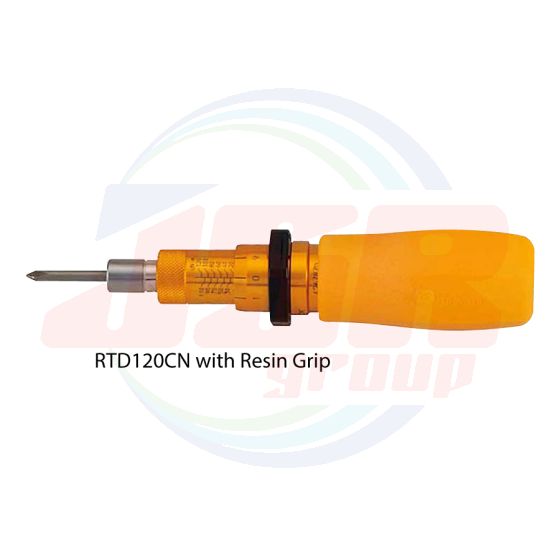

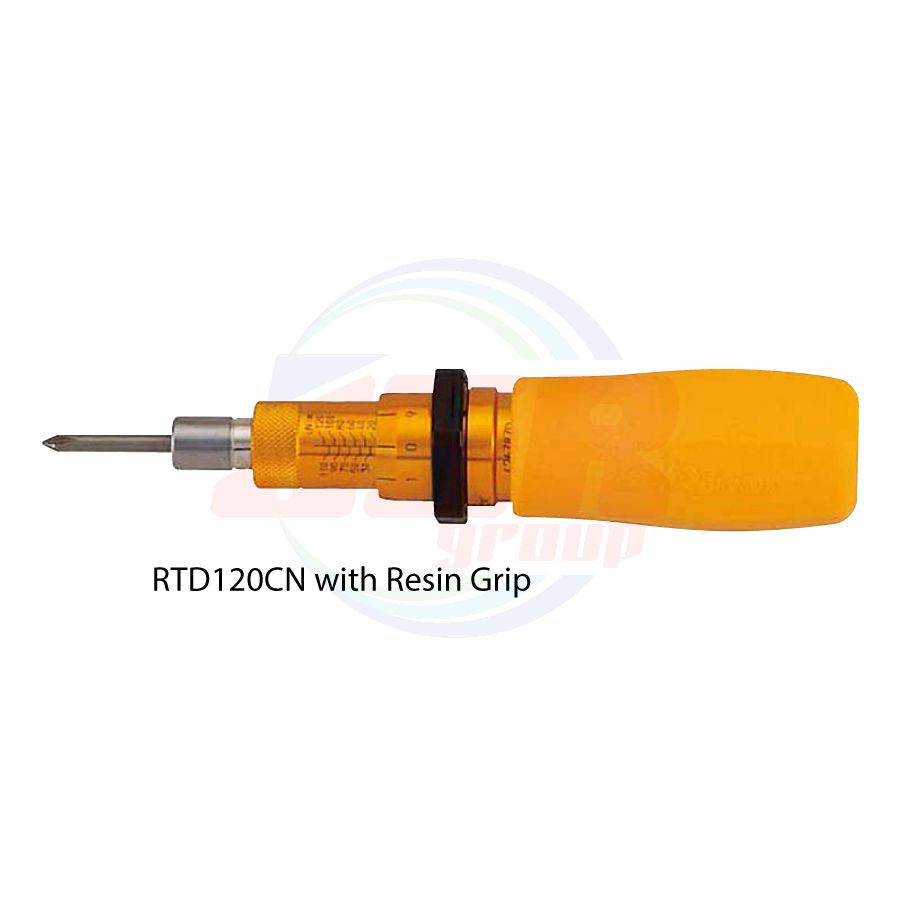

2. Resin grip for RTD120CN and RTD260CN
