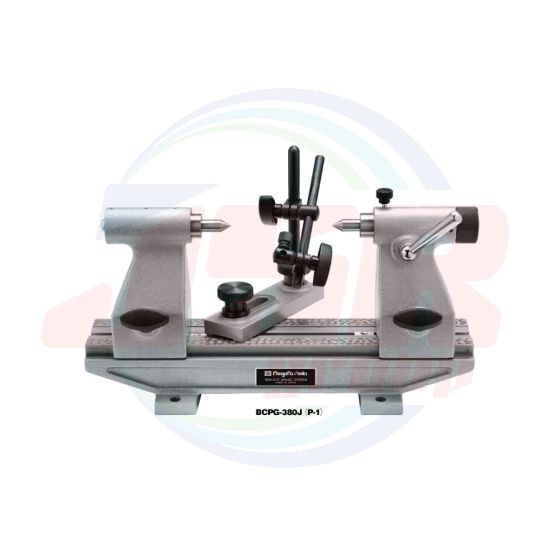

RUN-OUT GAUGE SYSTEM | SK NIIGATASEIKI

Application
• For measuring eccentricity of cylindrical workpieces and cutting tools
Material
• Body: cast iron (FC250)
• Other than main body: Carbon steel for machine structure
Features
• Attaching your existing dial gauge, you can measure eccentricity on the surface plate or tabletop.
• The swing is lowered to make it easier to measure the cutting tool.
• One dedicated stand included
  ※ Dial gauge indicator and test bar are not included.

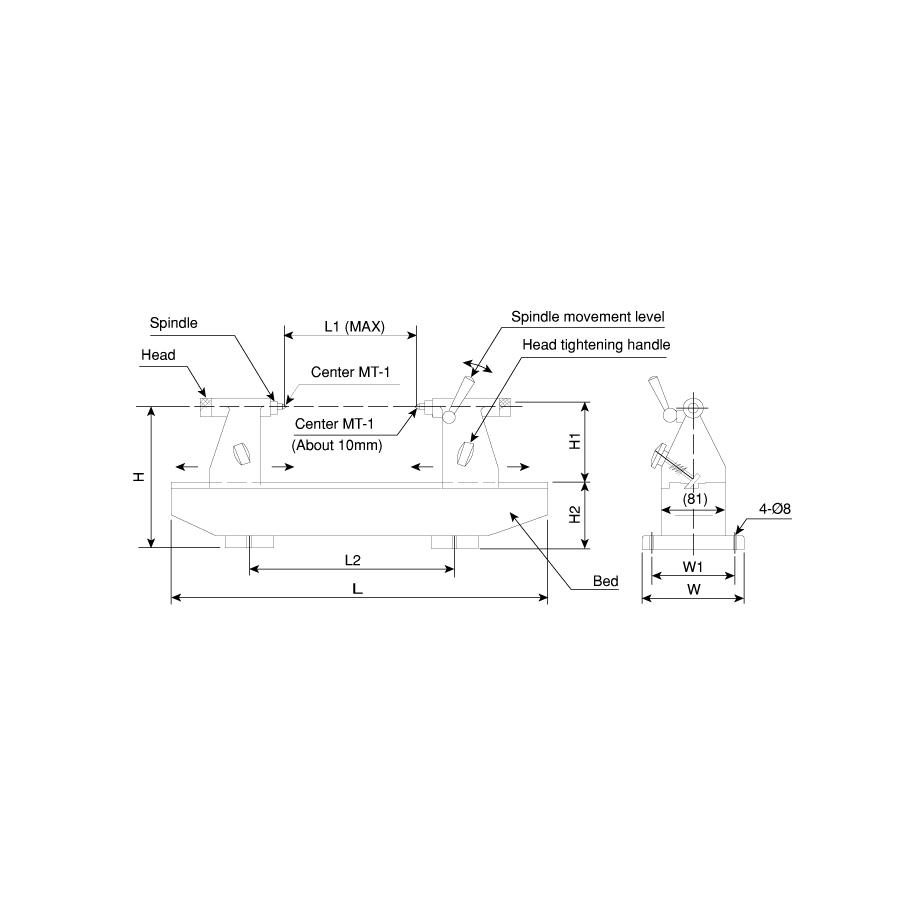

Specifications
• The parallelism between the top of the bed and the center: within 5 μm
• Flatness of the top of the bed: within 5 μm
• Center side parallelism: 10 μm
• Spindle travel: about 10 mm
