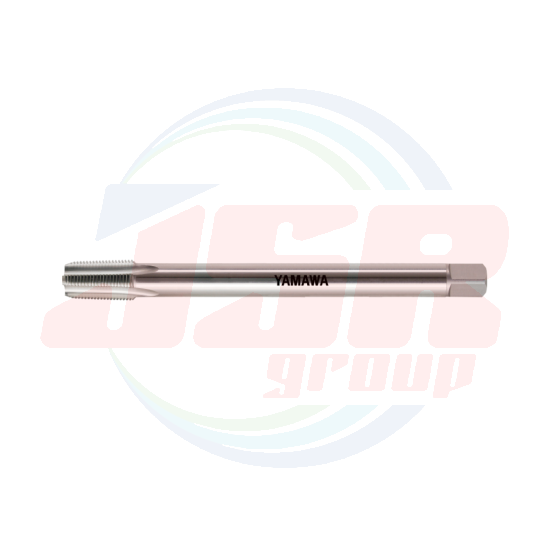

S-NPT 3/4-14 (TSNPT12Q) | Hand Taps for American Taper Pipe Threads, Short (ℓg) Type | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 5,409.35
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
TSNPT12Q
QTY:
0
- The S-NPT is a hand tap for the American tapered pipe threads and is used for tapping where it is necessary to shorten the fitting length for piping parts. Its main purpose is tightness of threaded parts in connection with pipe parts etc.
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For American Pipe Threads |
||||||||||||
|
1/16-27 NPT |
ANSI G |
TSNPT01L |
3P |
7.770 |
54 |
14 |
10.1 |
8 |
6 |
9 |
4 |
1 |
|
1/8-27 NPT |
ANSI G |
TSNPT02L |
3P |
10.117 |
55 |
16.5 |
10.5 |
8 |
6 |
9 |
4 |
2 |
|
1/4-18 NPT |
ANSI G |
TSNPT04O |
3P |
13.426 |
62 |
19.5 |
12.5 |
11 |
9 |
12 |
4 |
2 |
|
3/8-18 NPT |
ANSI G |
TSNPT06O |
3P |
16.866 |
65 |
21 |
14 |
14 |
11 |
14 |
4 |
2 |
|
1/2-14 NPT |
ANSI G |
TSNPT08Q |
3P |
20.980 |
80 |
27 |
17 |
18 |
14 |
17 |
4 |
2 |
|
3/4-14 NPT |
ANSI G |
TSNPT12Q |
3P |
26.325 |
85 |
29 |
19 |
23 |
17 |
20 |
4 |
2 |
|
1 -11 1/2 NPT |
ANSI G |
TSNPT16T |
3P |
32.934 |
95 |
35 |
22 |
26 |
21 |
24 |
5 |
2 |
|
1 1/4-11 1/2 NPT |
ANSI G |
TSNPT20T |
3P |
41.689 |
105 |
37.5 |
24.5 |
32 |
26 |
30 |
5 |
2 |
|
1 1/2-11 1/2 NPT |
ANSI G |
TSNPT24T |
3P |
47.760 |
110 |
38.5 |
25.5 |
38 |
29 |
32 |
6 |
2 |
|
2 -11 1/2 NPT |
ANSI G |
TSNPT32T |
3P |
59.797 |
120 |
42.5 |
27.5 |
46 |
35 |
38 |
6 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 3/4-14 NPT (TSNPT12Q) |
| Model | S-NPT |
| Size | 3/4-14 |
| Class | ANSI G |
| Chamfer | 3P |
| Overall length (L) | 85 |
| Thread length (ℓ) | 29 |
| Shank dia. (Ds) | 23 |
| Size of Square (K) | 17 |
| Length of square (ℓk) | 20 |
