S-PO (Metric Threads) | Short Spiral Pointed Taps for Deep Hole Use | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 502.90
พร้อมส่ง
SKU
S-PO
Product Features

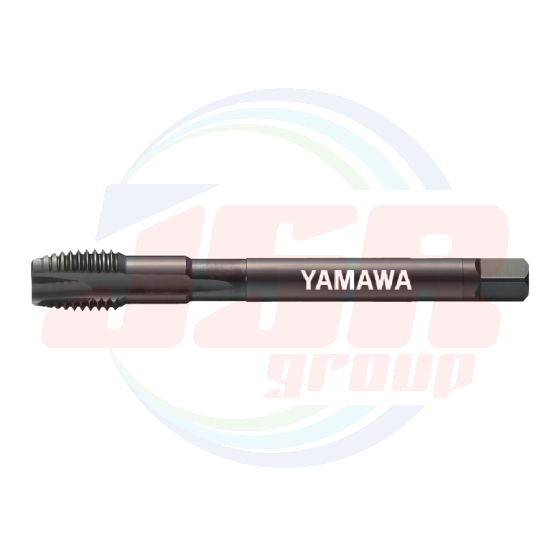

- S-PO is the spiral pointed tap having short thread portion which reduces friction and makes smooth coolant supply, and is suitable for such deep holes which are deeper than 2.5 times of the nominal dia.
Specification
Tapping Speeds depending on Materials
Oversize
Segment：1E
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓt (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
|||||||||||||
|
M2×0.4 |
P2 |
PSMQ2.0E |
5P |
42 |
4 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
2 |
1 |
|
M2×0.4 |
P3 |
PSMR2.0E |
5P |
42 |
4 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
2 |
1 |
|
M2.3×0.4 |
P2 |
PSMQ2.3E |
5P |
42 |
4 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
2 |
1 |
|
M2.5×0.45 |
P2 |
PSMQ2.5F |
5P |
46 |
4 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
1 |
|
M2.6×0.45 |
P2 |
PSMQ2.6F |
5P |
46 |
4 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
1 |
|
M2.6×0.45 |
P3 |
PSMR2.6F |
5P |
46 |
4 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
1 |
|
M3×0.5 |
P2 |
PSMQ3.0G |
5P |
46 |
5 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M3×0.5 |
P3 |
PSMR3.0G |
5P |
46 |
5 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
3M0.6 |
P2 |
PSMQ3.0H |
5P |
46 |
5 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M3.5×0.6 |
P2 |
PSMQ3.5H |
5P |
52 |
7 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M4×0.7 |
P2 |
PSMQ4.0I |
5P |
52 |
7 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M4×0.7 |
P3 |
PSMR4.0I |
5P |
52 |
7 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M4×0.7 |
P4 |
PSMS4.0I |
5P |
52 |
7 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
4M0.75 |
P2 |
PSMQ4.0J |
5P |
52 |
7 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P2 |
PSMQ5.0K |
5P |
60 |
9 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
PSMR5.0K |
5P |
60 |
9 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M5×0.8 |
P4 |
PSMS5.0K |
5P |
60 |
9 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
5M0.9 |
P2 |
PSMQ5.0L |
5P |
60 |
9 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P2 |
PSMQ6.0M |
5P |
62 |
11 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P3 |
PSMR6.0M |
5P |
62 |
11 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P4 |
PSMS6.0M |
5P |
62 |
11 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
M8×1.25 |
P3 |
PSMR8.0N |
5P |
70 |
- |
12 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M8×1.25 |
P4 |
PSMS8.0N |
5P |
70 |
- |
12 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M8×1 |
P3 |
PSMR8.0M |
5P |
70 |
- |
12 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
M10×1.5 |
P3 |
PSMR010O |
5P |
75 |
- |
13 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.5 |
P4 |
PSMS010O |
5P |
75 |
- |
13 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P3 |
PSMR010N |
5P |
75 |
- |
13 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1.25 |
P4 |
PSMS010N |
5P |
75 |
- |
13 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M10×1 |
P3 |
PSMR010M |
5P |
75 |
- |
13 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
M12×1.75 |
P4 |
PSMS012P |
5P |
82 |
- |
15 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.75 |
P5 |
PSMT012P |
5P |
82 |
- |
15 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P3 |
PSMR012O |
5P |
82 |
- |
15 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.5 |
P5 |
PSMT012O |
5P |
82 |
- |
15 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P4 |
PSMS012N |
5P |
82 |
- |
15 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1.25 |
P5 |
PSMT012N |
5P |
82 |
- |
15 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M12×1 |
P3 |
PSMR012M |
5P |
82 |
- |
15 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
M14×2 |
P4 |
PSMS014Q |
5P |
88 |
- |
18 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×2 |
P5 |
PSMT014Q |
5P |
88 |
- |
18 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P3 |
PSMR014O |
5P |
88 |
- |
14 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M14×1.5 |
P5 |
PSMT014O |
5P |
88 |
- |
14 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
M16×2 |
P4 |
PSMS016Q |
5P |
95 |
- |
18 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×2 |
P5 |
PSMT016Q |
5P |
95 |
- |
18 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P3 |
PSMR016O |
5P |
95 |
- |
14 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M16×1.5 |
P5 |
PSMT016O |
5P |
95 |
- |
14 |
- |
48 |
12.5 |
10 |
13 |
3 |
2 |
|
M18×2.5 |
P4 |
PSMS018R |
5P |
100 |
- |
20 |
- |
51 |
14 |
11 |
14 |
3 |
2 |
|
M18×2.5 |
P5 |
PSMT018R |
5P |
100 |
- |
20 |
- |
51 |
14 |
11 |
14 |
3 |
2 |
|
M18×1.5 |
P4 |
PSMS018O |
5P |
100 |
- |
14 |
- |
51 |
14 |
11 |
14 |
3 |
2 |
|
M18×1.5 |
P5 |
PSMT018O |
5P |
100 |
- |
14 |
- |
51 |
14 |
11 |
14 |
3 |
2 |
|
M20×2.5 |
P4 |
PSMS020R |
5P |
105 |
- |
20 |
- |
50 |
15 |
12 |
15 |
3 |
3 |
|
M20×2.5 |
P5 |
PSMT020R |
5P |
105 |
- |
20 |
- |
50 |
15 |
12 |
15 |
3 |
3 |
|
M20×1.5 |
P4 |
PSMS020O |
5P |
105 |
- |
14 |
- |
50 |
15 |
12 |
15 |
3 |
3 |
|
M20×1.5 |
P5 |
PSMT020O |
5P |
105 |
- |
14 |
- |
50 |
15 |
12 |
15 |
3 |
3 |
|
M22×2.5 |
P4 |
PSMS022R |
5P |
115 |
- |
20 |
- |
55 |
17 |
13 |
16 |
3 |
3 |
|
M22×1.5 |
P4 |
PSMS022O |
5P |
115 |
- |
14 |
- |
55 |
17 |
13 |
16 |
3 |
3 |
|
M24×3 |
P4 |
PSMS024S |
5P |
120 |
- |
25 |
- |
55 |
19 |
15 |
18 |
3 |
3 |
|
M24×1.5 |
P4 |
PSMS024O |
5P |
120 |
- |
18 |
- |
55 |
19 |
15 |
18 |
3 |
3 |
|
M27×3 |
P4 |
PSMS027S |
5P |
130 |
- |
25 |
- |
60 |
20 |
15 |
18 |
4 |
3 |
|
M27×1.5 |
P4 |
PSMS027O |
5P |
130 |
- |
20 |
- |
60 |
20 |
15 |
18 |
4 |
3 |
|
M30×3.5 |
P5 |
PSMT030T |
5P |
135 |
- |
30 |
- |
62 |
23 |
17 |
20 |
4 |
3 |
|
M30×1.5 |
P4 |
PSMS030O |
5P |
135 |
- |
20 |
- |
62 |
23 |
17 |
20 |
4 |
3 |
|
M33×3.5 |
P5 |
PSMT033T |
5P |
145 |
- |
30 |
- |
67 |
25 |
19 |
22 |
4 |
3 |
|
M36×4 |
P5 |
PSMT036U |
5P |
155 |
- |
40 |
- |
71 |
28 |
21 |
24 |
4 |
3 |
|
M39×4 |
P5 |
PSMT039U |
5P |
165 |
- |
40 |
- |
76 |
30 |
23 |
26 |
4 |
3 |
|
M42×4.5 |
P5 |
PSMT042V |
5P |
175 |
- |
40 |
- |
81 |
32 |
26 |
30 |
4 |
3 |
| แบรนด์สินค้า | YAMAWA |
|---|
